soil sensor

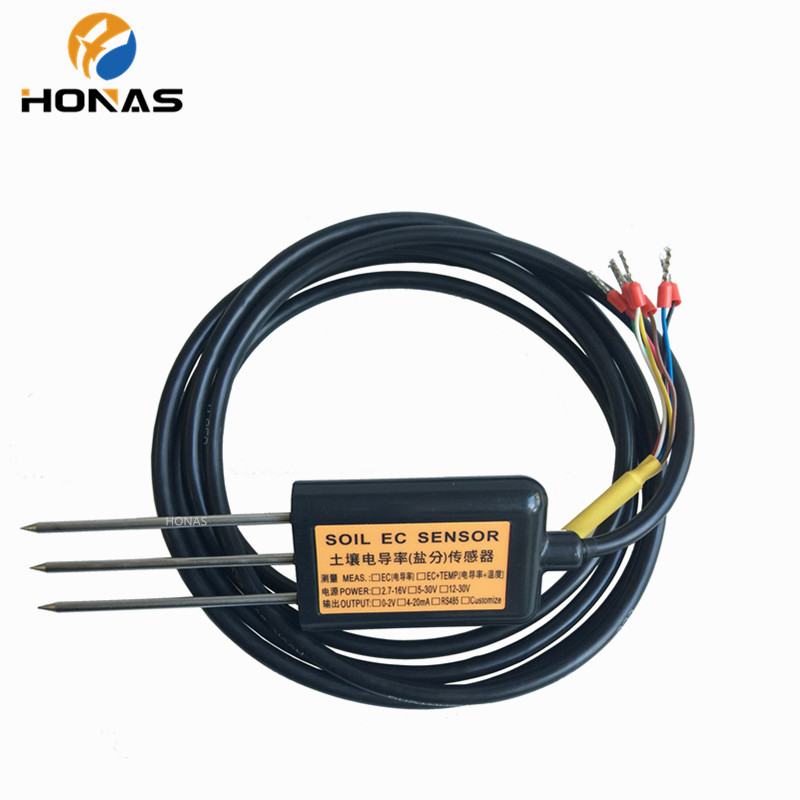

RS485 electrical soil temperature moisture ec sensor

Test:soil temperature humidity and EC
Output type :RS485/0-20v output /4-20mA
Electrode length:70mm
Soil temperature measuring range:Range: - 40 ~ 80 ℃
Product description:RS485 electrical soil temperature moisture ec sensor
INQUIRY EMAIL

Application:

Usually electrical conductivity EC (Conductivity Electrical) is used to measure the concentration of soluble salts in the solution of the indicators, units per meter for the SIEMENS S/m (1S/m=10mS/cm = 10000uS/cm = 10dS/m).The conductivity and temperature of the soil can be determined by measuring the conductivity and temperature of the soil substrate or nutrient solution depending on the nature of the temperature and salinity. The EC value of the measurement temperature is usually 25 degrees Celsius, the same solution, the lower temperature of the measurement EC value is lower.Under normal temperature condition,, The variation of electrical conductivity of each phase is about 2% .

The conductivity and salinity are approximately linear, its proportion is based on temperature 25 ℃, the proportion is:1 S/cm=0.55 ~ 0.75mg/l salt content. At other temperatures, it is necessary to be adjusted, that is, the temperature of each change 1℃, the salinity of about 1.5-2%.

The temperature is higher than 25 ℃ with negative, temperature lower than 25℃ with positive. So the salt can be estimated according to the electrical conductivity.

Characteristics:

Soil moisture content, electrical conductivity and temperature three parameters.

One solution can also be used for fertilizer, and other nutrient solution conductivity matrix.

（3）Electrode using special treatment of the alloy material, can withstand a strong external impact, not easy to damage.

（4）Completely sealed, acid and alkali corrosion, can be buried in the soil or directly into the water for long-term dynamic testing.

（5）High precision, fast response, good compatibility, the probe insert design to ensure accurate measurement, reliable performance.

（6）Perfect protection circuit and a variety of signal output interface.

Technical parameter

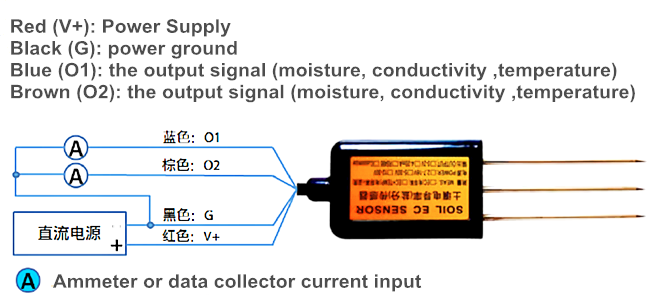

signal output type	Voltage output 0-2V （output impedance 0 ohm）	Current output 4-20mA (load resistance <500ohm）	RS485 interface Modbus Protocol
Power supply	3.6-30V/DC	12-30V/DC	3.6-30V/DC
Quiescent dissipation	6mA@24V DC	50mA@24V DC (2 output channels all 20mA)	6mA@24V DC
Soil moisture measurement range	0-50% volumetric moisture content 0-100% volumetric moisture content Resolution: 0-50%, 0.03%, 1% within 50-100% Accuracy: 0-2%, inside 50% 3% within 50-100%
Conductivity range	optional range: 0-5000 us/cm, 10000 us/cm, 20000 us/cm Resolution: 10 us/cm within 0-10000 us/cm, 50 us/cm within 10000-20000 us /cm Precision of 0-10000 us/cm range is ±3%; 10000-20000 us/cm range is ±5%
Electrical conductivity temperature compensation	Built in temperature compensation sensor, compensation range 0-50℃
Soil temperature measuring range	Range: - 40 ~ 80 ℃, resolution: 0.1 ℃, precision: ± 0.5 ℃
Measuring principle and measuring method	The FDR method of soil moisture, soil electrical conductivity of alternating current bridge method to soil in situ insertion or immersion into the culture medium and fertilizer whole nutrition liquid in direct test
Protection grade	IP68 submerged in water can be used for a long time
Operating environment	-40~85℃
The material of the probe	Anti-corrosion special electrode
Sealing material	Black flame retardant epoxy resin

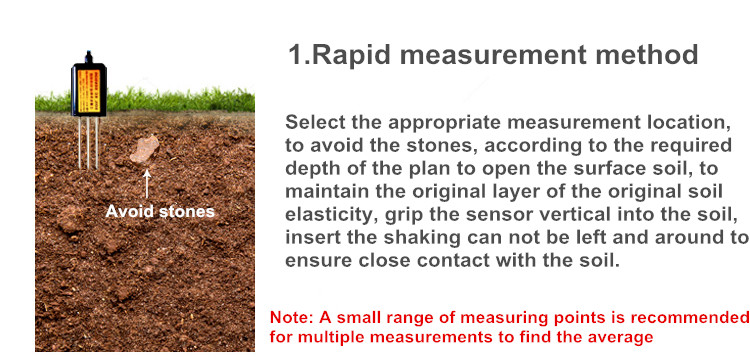

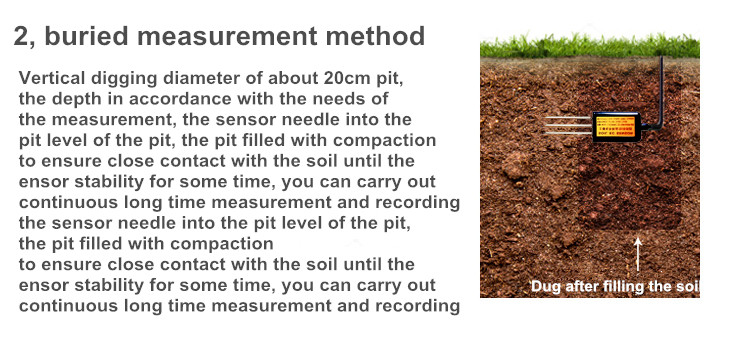

Installation	All embedded or probe inserted into the measured medium
Default cable length	2 meters, the cable length can be customized according to requirements
attended mode	Pre installed cold pressed terminal
outline dimension	4515145mm
Electrode length	70mm

Type selection :

Code number

Code

Code info.

Code1：product line

MEC10

MEC10 Soil moisture, soil electrical conductivity (EC) and temperature, three parameter measuring sensor

Code2：Measurement parameters

Soil moisture, soil electrical conductivity (EC)

Soil temperature, soil electrical conductivity (EC)

Three parameter measurement（RS485 Output Only）

Code3：

Soil moisture range

0-50%

0-100%

Code4：

Electrical conductivity range

0-5000us/cm

0-10000us/cm

0-20000us/cm

Customer customization

Code5：power supply

1.3-5.6V/DC

3.6-30V/DC

12-30V/DC （output：4-20mA Only）

Code6：Output

Voltage output 0-2V

Current output 4-20mA

RS485 interface Modbus protocol

RS485 interface, Modbus Protocol & voltage 0-2V output

RS485 interface, Modbus Protocol & current 4-20mA output

Code 7：Line length

002

XXX

2 meters

Custom, XXX is an arbitrary length (unit: m)

Model example：

MEC10 Sensor, soil moisture range is 0-100%,Soil electrical conductivity measurement range 0-10000us/cm,3.6-30V/DC,RS485 interface, Modbus protocol, 5 wire length.

Type selection code：MEC10 - A B B A C 005
