ul test probe

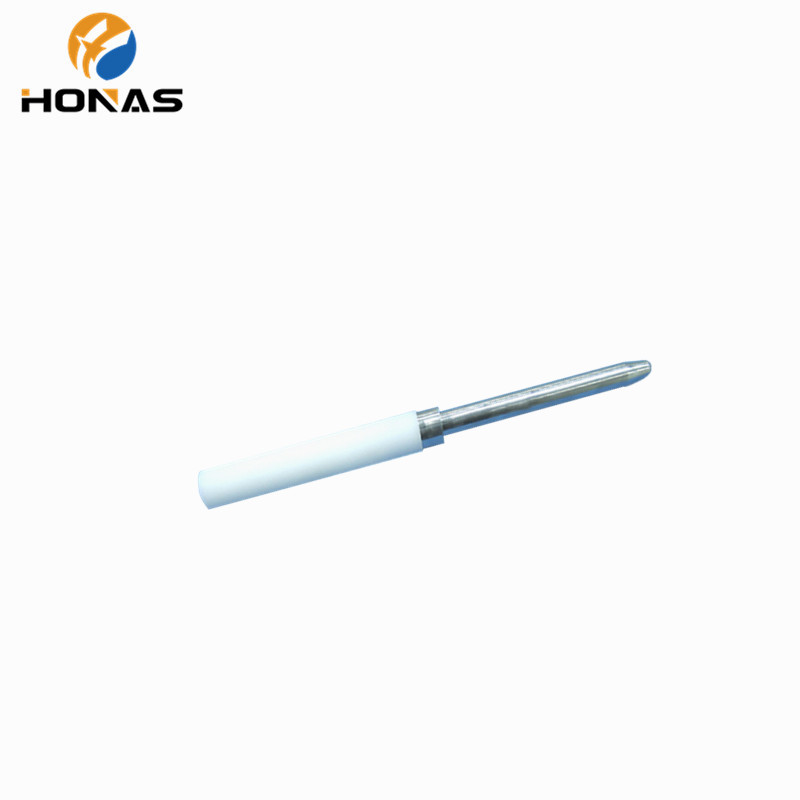

UL 507 PA130A straight test probe to detection uninsulated Live Parts

Total Length:101.6mm(4inch)
Head Radius:14.3mm(9/16inch)
Head Length:12.7mm(1/2inch)
Tail Diameter:19.1mm(3/4inch)
Product description:UL 507 PA130A straight test probe to detection uninsulated Live Parts
INQUIRY EMAIL

Application:

UL test straight refers to 130 (135A), 140 (145A) is to meet the requirements of UL507 & UL1287 and other standards, used in the protection test to simulate fingers and appliances, mainly used to detect whether the dangerous parts are charged. 130 (135A): mainly used for the detection of uninsulated live parts; 140 (145A): mainly used for the inspection of enameled wires (membrane conductors) or similar components.

Test sample:easily accessible enclosure live parts or mechanical parts.

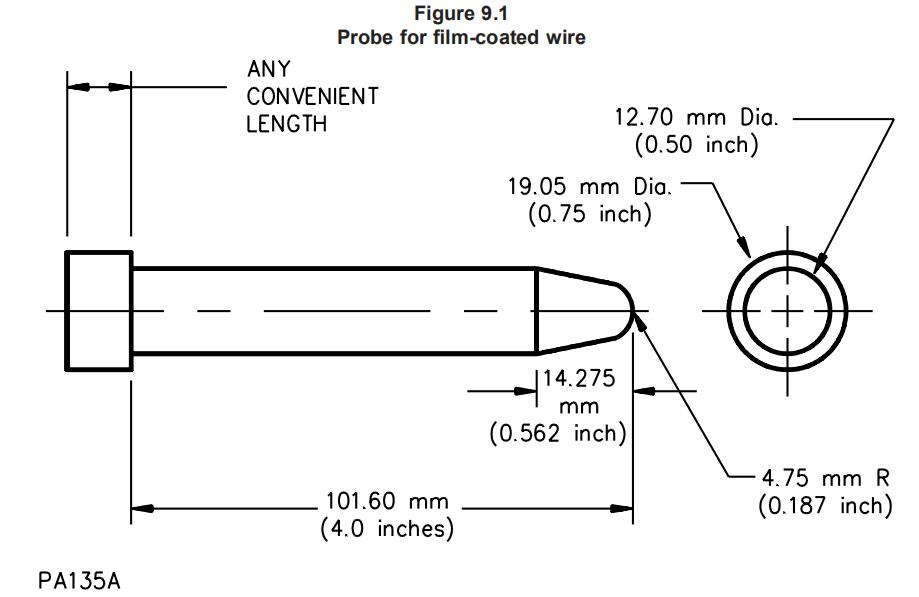

Standard :UL507-2006（PA135A）Fig 9.1, UL749 Fig 1, UL982 Fig 58.6 and UL1278 Fig 8.1（PA130A）.

Technical parameter:

Item	Parameter
Total Length	101.6mm(4inch)
Head Radius	14.3mm(9/16inch)
Head Length	12.7mm(1/2inch)
Tail Diameter	19.1mm(3/4inch)
Former Head Diameter	R4.8mm(3/16inch)
Materials	Nylon and stainless steel
Standard	UL507-2006,UL507-2006,UL1278
