Environmental test equipment

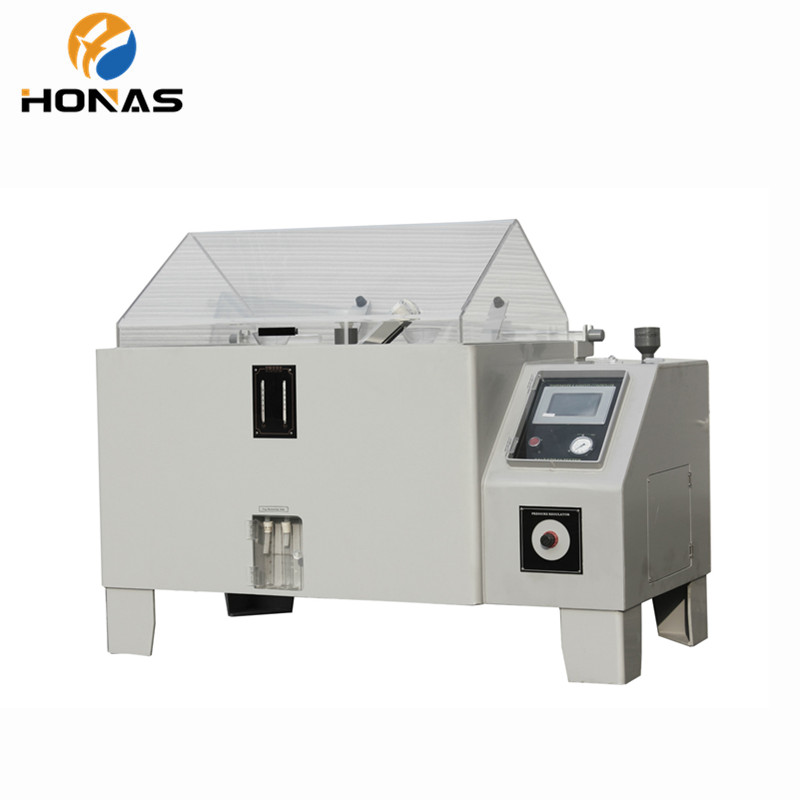

ASTMB117 salt spray test chamber for corrosion resistance test
- Saturated Air Pressure:0.8 ~ 2.0(kg/m)
- Spray Volume: 0.5 ~ 3.0(m/80cm/hr)
- Salt ph:6.5 ~ 7.2
- Power supply:AC1 220V±10% 50/60Hz
- Product description:ASTMB117 salt spray test chamber for corrosion resistance test
Application :
The salt spray test is an environmental test that uses the artificial simulated salt spray environmental conditions created by the salt spray test equipment to evaluate the corrosion resistance of products or metal materials.
The salt spray test standard specifies the salt spray test conditions, such as temperature, humidity, sodium chloride solution concentration and pH value, and also provides technical requirements for the performance of the salt spray test chamber. The methods for determining the salt spray test results include: rating determination method, weighing determination method, corrosion occurrence determination method, and corrosion data statistical analysis method. The products that need to be tested for salt spray are mainly metal products, and the corrosion resistance of the products is examined by inspection.
Meet standard :GB/T 2423.17，IEC60068-2-11,ISO4628-3,ISO9227， ASTM B117, JIS-Z2371, JIS-G3141, GJB 150.1, MIL-STD-810F, MIL-STD-883E
Technical parameter:
|
Model |
HNS-YW60 |
BND-YW90 |
BND-YW120 |
BND-YW160 |
BND-YW200 |
||
|
Inner size (W*H*D)cm |
60*40*45 |
90*50*60 |
120*50*100 |
160*50*100 |
200*60*120 |
||
|
Exterior size(W*H*D)cm |
125*105*91 |
155*121*106 |
190*140*130 |
250*134*145 |
290*155*165 |
||
|
Saturated Air Pressure |
0.8 ~ 2.0(kg/m) |
||||||
|
Spray Volume |
0.5 ~ 3.0(m/80cm/hr) |
||||||
|
PH |
Salt |
6.5 ~ 7.2 |
|||||
|
Copper acetate |
3.0 ~ 3.2 |
||||||
|
External./Inner. Material |
P.V.C & P.P |
||||||
|
System |
Salt Spray Vehicle |
Air+acid(base)liquid |
|||||
|
Heating |
SUS#304 &316 stainless steel heater + talon |
||||||
|
Controller |
Hydrometer,salinometer,fog collector,glass bar |
||||||
|
Other Components |
Digital electronic control+S.S.SR |
||||||
|
Power supply |
AC1 220V±10% 50/60Hz |
||||||
|
Safety Devices |
Overheating prevention circuit-breaker,dehydration and |
||||||
|
A |
Salt spray test ：NSS，ACSS |
||||||
|
1. |
Inside chamber |
35℃ ± 1℃ fluctuation：≤±0.5℃ uniformity: ≤2℃ |
|||||
|
2. |
Saturated air bucket: |
47℃ ± 1℃ |
|||||
|
B. |
Corrosion resistance test：CASS |
||||||
|
1. |
Inside chamber： |
50℃±1℃ fluctuation：≤±0.5℃ uniformity: ≤2℃ |
|||||
|
2. |
Saturated air bucket: |
63℃ ± 1℃ |
|||||
Safety protection:
1.When the water level is low, the power is automatically turned off and the safety warning light is lights up.
2.When over temperature, the heater power is automatically turned off, and the safety warning light is lights up.
3.When the water level of the reagent (salt) is low, the safety warning light is lights up and alarms
4.Leakage protection function to prevent personal injury and instrument failure caused by line leakage or short circuit
How to purchase :
1,Make sure the exact size you need .
2,Tell our seller about the size
3,If you have any special request, contact our seller ,she/he will give you some sugges
