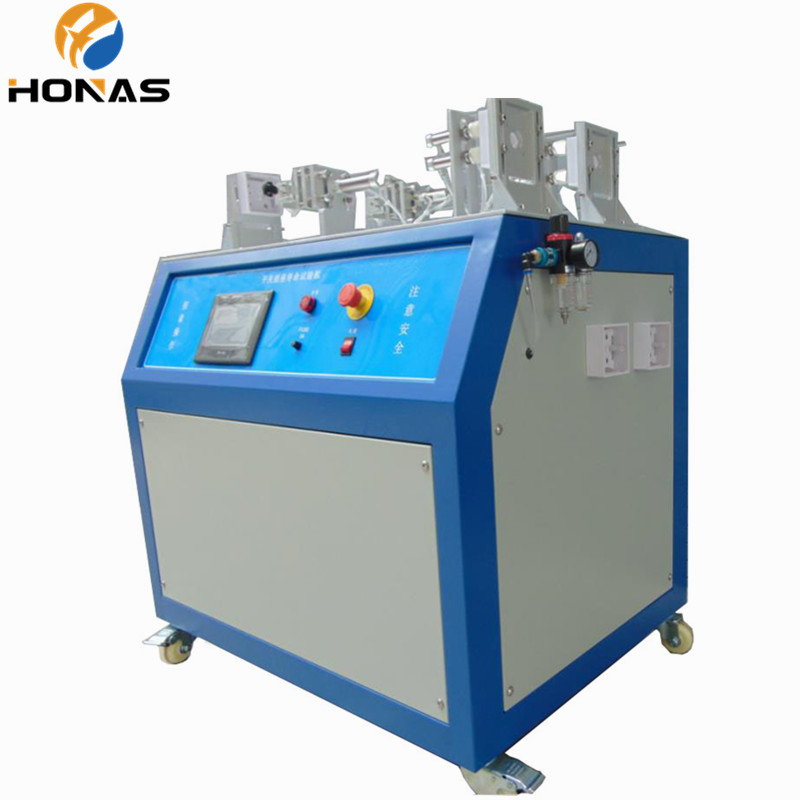

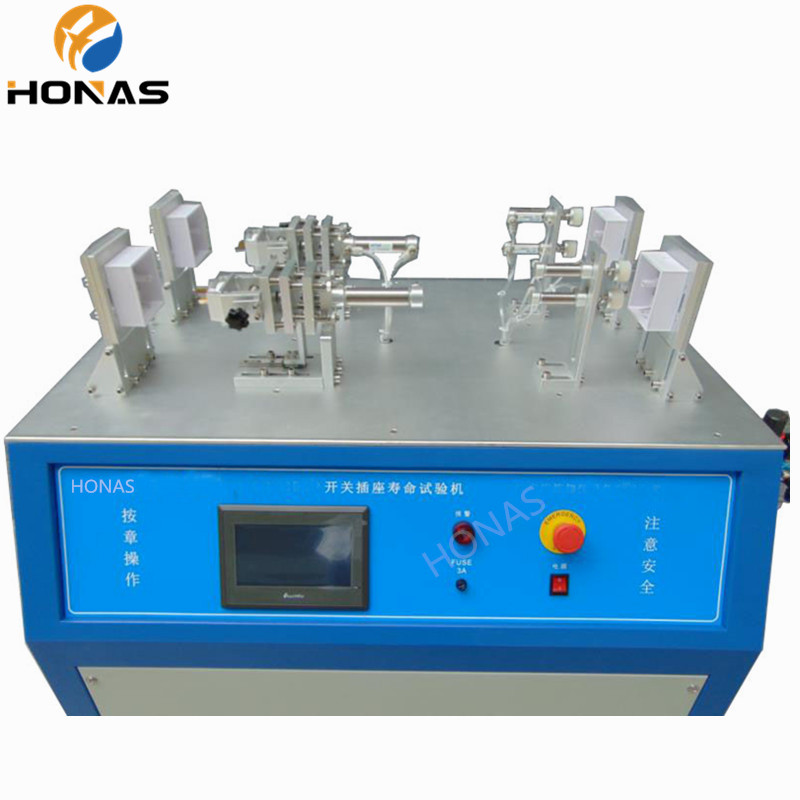

Plug socket switch test machine

IEC60669 plug socket switch life test machine made in China

IEC60669 plug socket switch life test machine made in China

Working station :2/4/6 adjustable
Working ways :pneumatic
Max output current:30a/60A/80A (customized)
Max output voltage:300V
Product description:IEC60669 plug socket switch life test machine made in China
INQUIRY EMAIL

Application:

This equipment is made according to the relevant standards of electrical accessories such as GB16915.1-2003, IEC60669-1, BSEN60669-1, BS3676, etc. It is mainly used to test the mechanical and electrical operation performance of the switch or plug.

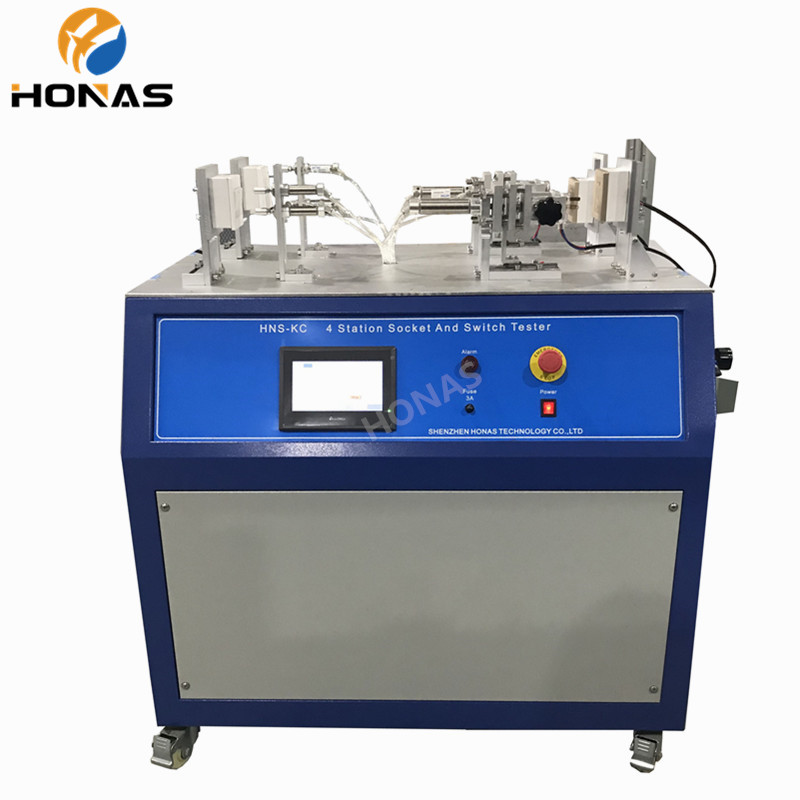

1.There are 4 socket test stations in this equipment. The equipment can test 1~4 switches at the same time in the discrete action test mode of this machine. The linkage test mode allows two switches of the same type and the same specification to share a group of load cabinets for simultaneous testing.

2.The number of preset operations of the touch screen, after the number of operations arrives, the audible and visual alarm device starts an alarm.

Item	Specification
Model	Socket switch test equipment
Standard	GB16915.1-2003, IEC60669-1, BSEN60669-1, BS3676, etc.
Working station	2/4/6
Working ways	pneumatic
Power	220±10%V/50±10%HZ
Max output current	30a/60A/80A (customized)
Max output voltage	300V
Counter	0~999999 times can be preset
Operating frequency	1~50 times/min adjustable.
Ambient temperature	5 to 40 ° C
Relative humidity	(20 to 90)% RH
Atmospheric pressure	80 ~ 106kpa
No strong vibration, no electromagnetic interference, no dust, explosive, corrosive gas, good heat dissipation.

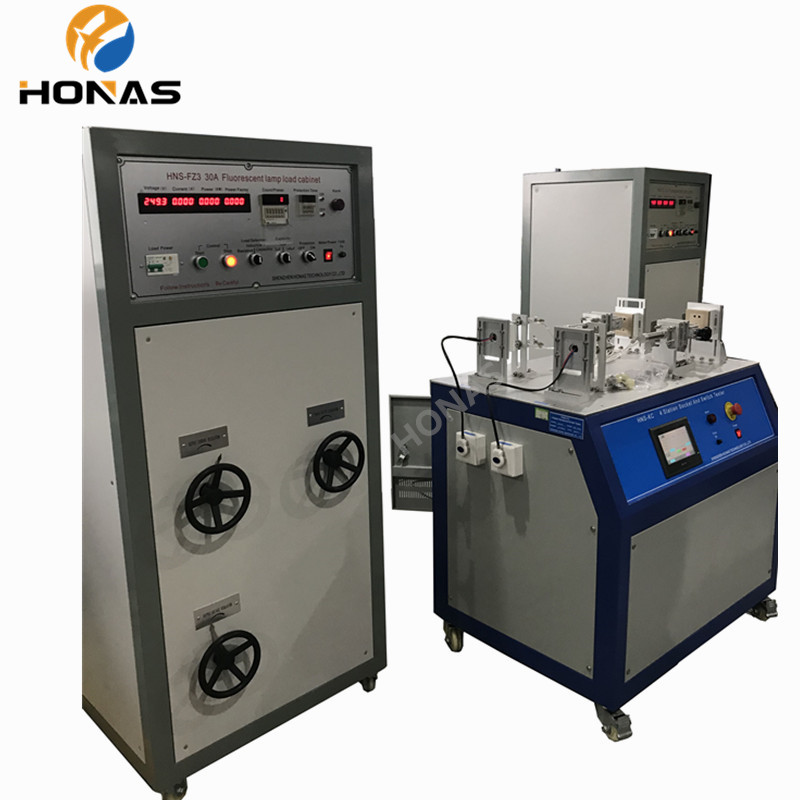

Note:2station with one cabinet , this 2 station can be with one current . this
