IEC60112 CTI proof tracking index test equipment

  • Electrode Distance:4.0mm±0.1mm,60±5ºangle
  • Electrode Pressure :1.00N±0.05N
  • Drops time: 30±5s
  • Electrode Dimensions Wide:5mm+/-0.1mm
  • Product description:IEC60112 CTI proof tracking index test equipment
  • INQUIRY   EMAIL

Application:

The tracking index test equipment is applicable to such as lighting equipment, low-voltage electrical appliances, household appliances, machine tool electrical appliances, electric motors, power tools, electronic instruments, The research, production and quality inspection departments of electrical instruments and information technology equipment are also applicable to the industries of insulating materials, engineering plastics, electrical connectors and accessories.

The tracking index test equipment is measure the relative electrical tracking resistance of a solid electrical insulating material when exposed to an impurity-containing water under an electric field when the voltage is up to 600V


Test principle:

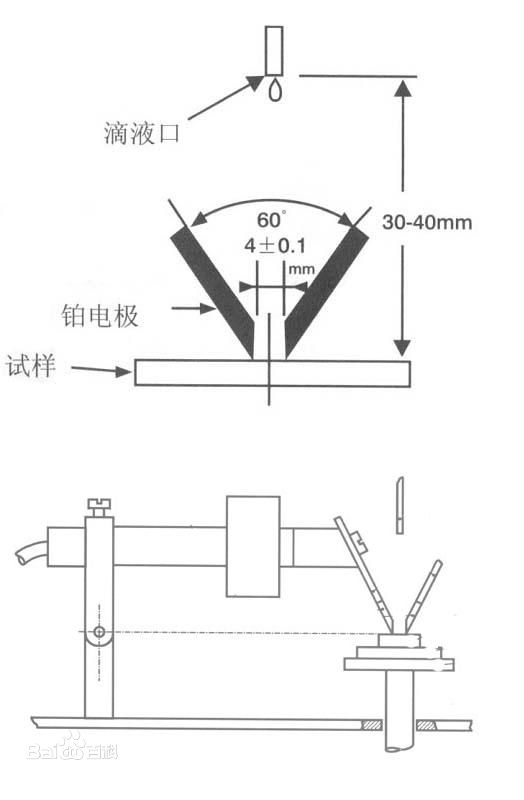

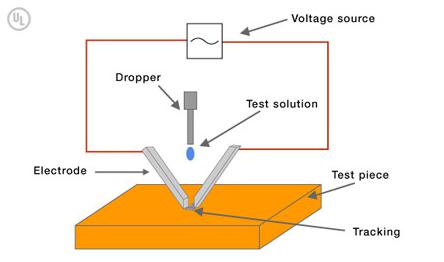

The leakage tracking test is performed on a surface of a solid insulating material between a platinum electrode of a prescribed size (2 mm × 5 mm), a certain voltage is applied, and a predetermined liquid volume (35 mm) is dropped at a predetermined height (35 mm). 0.1% NH 4CL) is used to evaluate the leakage resistance of solid insulating materials under the combined action of electric field and wet or contaminated medium. The electrical tracking index (CT1) and electrical tracking index (PT1) are determined.



Technical parameter:

Model

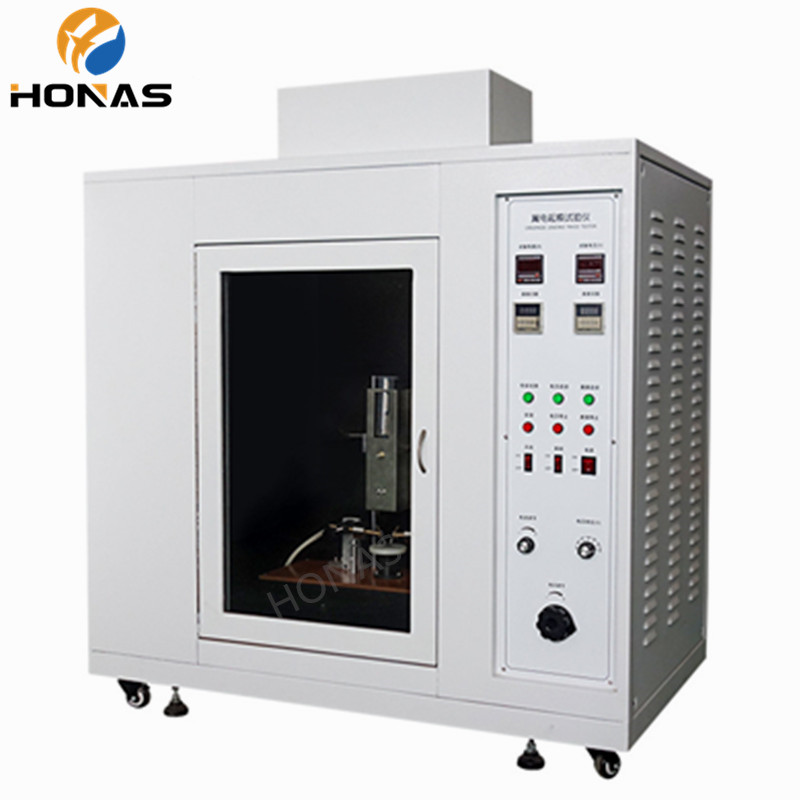

HNS-LD tracking index test equipment

Electrode Materials

The electrode caput of brass-platiniridium

Electrode Distance

4.0mm±0.1mm,60±5ºangle

Electrode Pressure

1.00N±0.05N

Test Current

Current limiting 1A±0.1A adjustable

Displayed value:r.m.s,tolerance of 1.5%

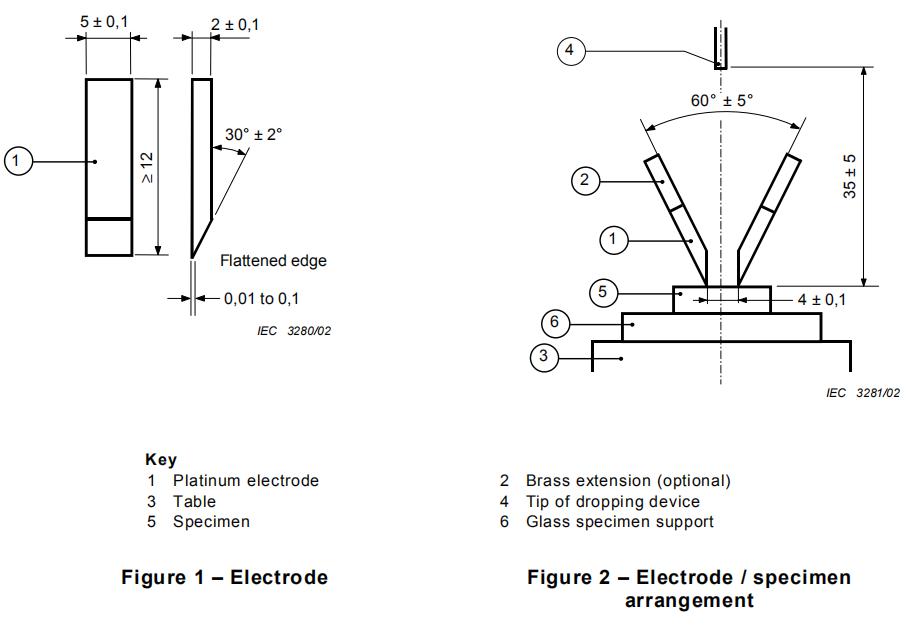

Electrode Dimensions

Wide:5mm+/-0.1mm

Thickness:2mm+/-0.1mm

Length>12mm

End chisel-edge angle:30C+2C,platinum

Electrode Voltage

100~600V adjustable, displayed value:r.m.s

Dripping Nozzle

Outer diameter:0.9mm~1.2mm for solution A

0.9mm~3.45mm for solution B

Dripping Interval

0-99 seconds(adjustable),the time for 44-55/1cm3(adjustable)

Height Drops

30~40mm+/-5mm(adjustable)

Drops time

30±5s

Control

Using single chip microcomputer+touch screen control

Chamber volume

>0.5m3,black interior

The leakage judge

Loop current greater than 0.5Aand maintain the 2 seconds the relay to cut off the current,indicating that the sample failed.

external Dimensions

W*L*D=110*700*1300MM

Power Supply

800va,220v,48-60Hz

Standard

IEC60112 (2003) ,IEC60745-1, IEC60335-1, IEC60598-1, IEC60884-1, GB7000.1, GB4207

Display panel language

Chinese+ English (adjustable)
