  • moisture capacity of semiconductor packages PCT test chamber
  • moisture capacity of semiconductor packages PCT test chamber
moisture capacity of semiconductor packages PCT test chambermoisture capacity of semiconductor packages PCT test chamber

moisture capacity of semiconductor packages PCT test chamber

  • Temperature range 110℃~132℃
  • Pressure range Meter pressure +0.2~2.0kg/cm2
  • Pressurization time about 45 min
  • Resolution Temperature:0.1 pressure:pointer 0.1

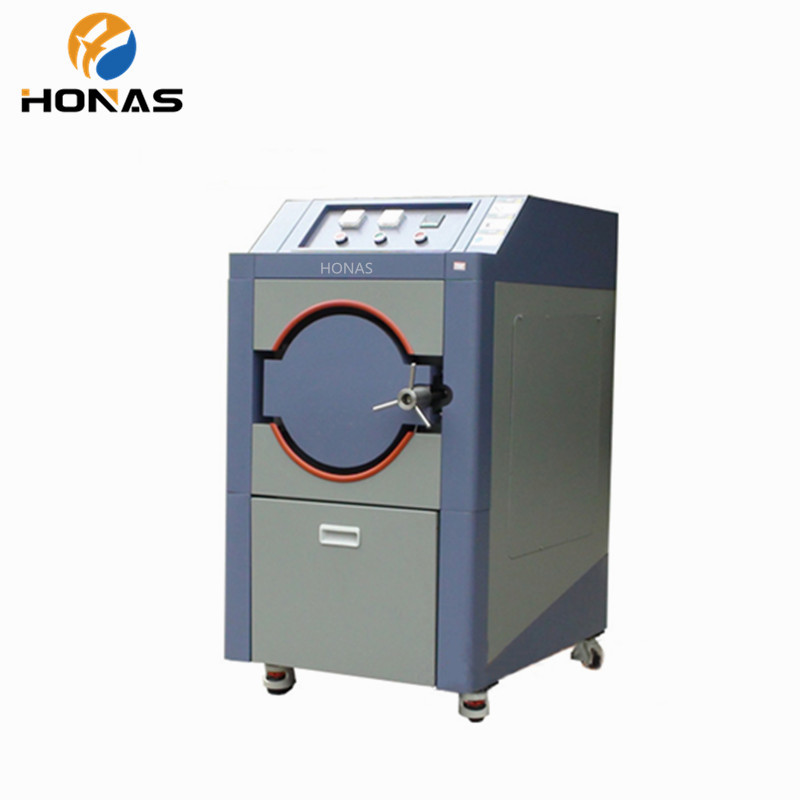

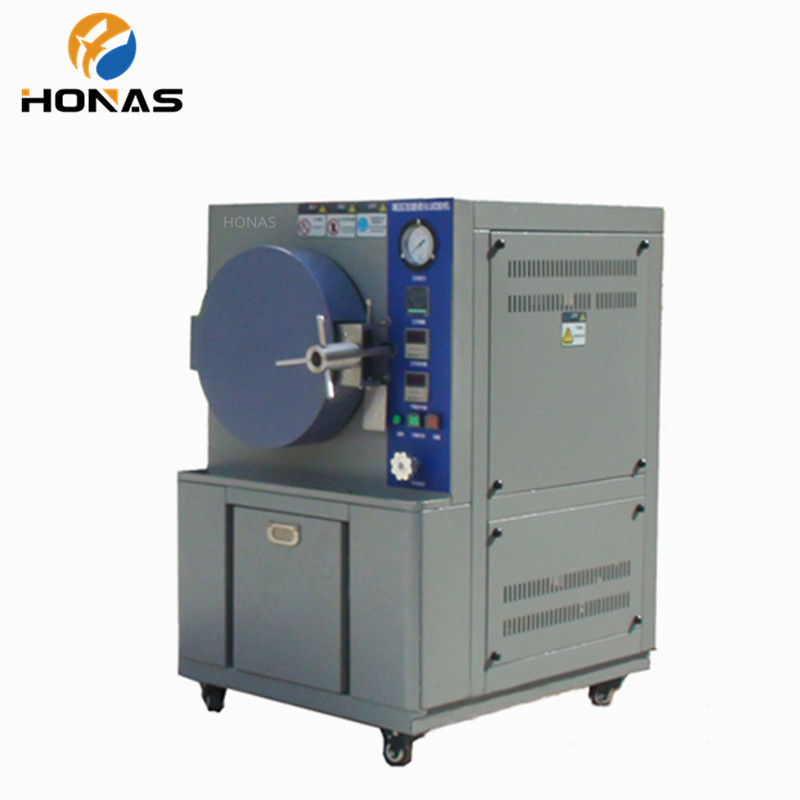

  • Product description:moisture capacity of semiconductor packages PCT test chamber
  • INQUIRY   EMAIL

Application:

The PCT test chamber is mainly used to test the moisture capacity of semiconductor packages.it is widely used in circuit board ,multilayer circuit board ,IC,LCD,magnet etc ,test these products sealing property.test their pressure resistance and air tightness.


Test destination:

Improve environmental stress (such as temperature) and working stress (voltage, load, etc. applied to the product), speed up the test process, and shorten the life test time of the product or system.


Test principle

The samples testing under harsh temperature humidity and pressure environment ,Moisture penetrates into the capsule along with the reuuber matrix or the interface between reuuber matrix and lead frame.Common failure modes include breaking circuit caused by corrosion in active metallization area, or short circuit caused by contamination between pins of capsule, etc.


Feature:

1.With top imported brand accessories

2.High capacity water tank, long testing time,moisturizing automatic,test is not interrupted

3.The test time is calculated after the temperature reaches the set value,The test process is automatically run until the test is completed, after which the drying function is activated to restore the final state of the product.

4.Japan imported "SHIMAX" LED double digital high-precision self-energy thermostat with an error of ±0.1 °C.

5.Integrated molding silicone door washer with good air density and long service life

6.Easy to operation


Safety protection:

1,Mishandling safety device:machine will not start working if the door is not closed

2,Overpressure safety protection:When the pressure in the chamber exceeds the maximum working value, the exhaust pressure is automatically released.

3,Over temperature protection:When the temperature inside the chamber is too high, the machine will sound an alarm and automatically cut off the heating power.

4,Anti-scald protection:made of special materials to prevent operator contact with burns

5,The machine is abnormally shut down, the whole machine is powered off and the fault is prompted.

7.Manual safety protection exhaust valve.



Technical parameter:

Model

BND-PCT-250

BND-PCT-350

BND-PCT-450

BND-PCT-550

BND-PCT-250M

BND-PCT-350M

Inner size cm

25×D35

30×D45

40×D55

50×D60

25×D35

30×D45

External size

W*H*D CM

56×H65×105

66×105×125

76×115×135

860×135×145

56×65×105

66×105×125

Temperature range

110℃132℃

110℃147℃

Humidity range

100%RH Saturated vapor

Pressure range

Meter pressure +0.22.0kg/cm2

Meter pressure +0.23.5kg/cm2

Pressurization time

about 45 min

about 55 min

Controller

Microcomputer saturated vapor temperature + time + pressure display independent controller

Resolution

Temperature:0.1 pressure:pointer 0.1

Control stability

Temperature:±0.5℃humidity:100%

Inner materials

SUS316# stainless steel

External materials

High-grade steel paint or stainless steel (depending on customer choice)

Cycle type

Water vapor natural convection cycle

Safety protection

Thermostat detection protectionFirst stage high temperature protectionFirst stage high voltage protectiondoor pressure limitWater tank water shortage alarm power offTemperature heater

protectionhumidifier protection;

Second stage high temperature protectionSecond high voltage protection

Third stage of emergency pressure relief protectionManual pressure relief protection, automatic pressure relief, etc.
