digital bending resistance instrument fracture modulus ceramic tiles breaking strength test equipment

Summarize:

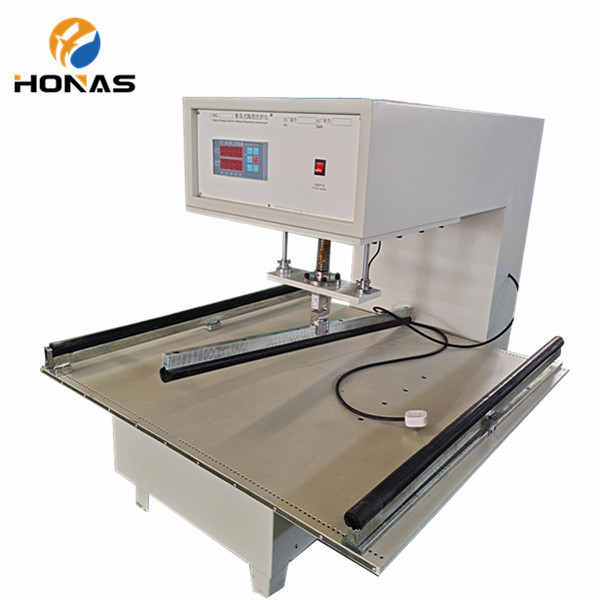

SKZ-10KN digital bending-resistance instrument adopt motor-driven loading mechanism and multiple-unit spring to achieve constant speed loading. It meets GB/T3810.4-2016, EN ISO10545-2 ceramic tile-modulus of rupture and breaking strength determination, and also applies to measure breaking strength of engineering ceramics, electro ceramics, domestic ceramics, pottery pipe, tile products, gesso template etc.

Changing the fixture can also be used for the determination of performance parameters such as bending, compressive and broken resistance etc.

1. Structure

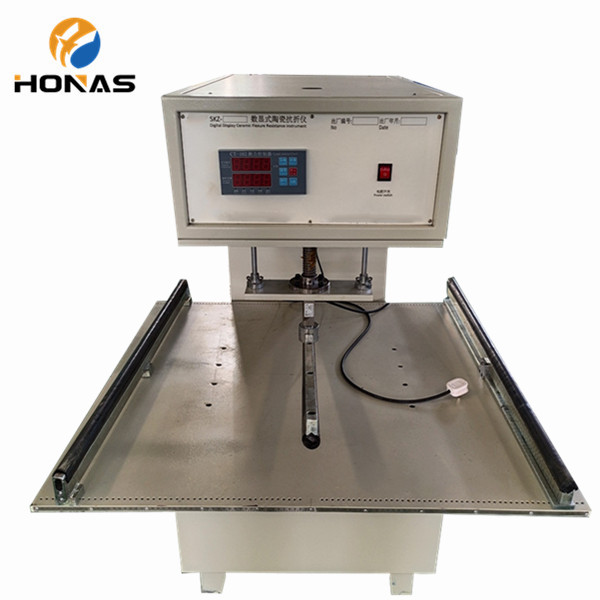

The instrument is made up of motor-driven loading mechanism, spring constant speed loading mechanism, fixture, digital display pressure detecting equipment, and control system.

2. Operating principle

Exert pressure to the center of the sample’s surface in certain velocity for determine the ceramic tile’s breaking load, flexural strength, and modulus of rupture.

Main technical parameters:

1. Max loading: 10000N;

2. Sample scope: 50*60~800*800mm adjustable;

3. Loading rate: 1~700(N/S) adjustable;

4. Computer complete data processing, accuracy < 0.5%;

5. Power supply: 220V, 0.8KW.

6. Electric loading system.
