glazed tile edge straightness ,right angle ,edge length ,tile degree flatness tester ceramic comprehensive test machine

Overview

This instrument is suitable for measuring the size and shape characteristics of various wall tiles and floor tiles. The measured parameters include the edge straightness, right angle, edge length, flatness (center curvature, edge curvature, warpage) of the tile (Degree) and several other indicators, the above six data can be quickly and accurately measured by one placement during the measurement. This product meets the requirements of GB/T3810.2-2016, ISO 10545-2-1995 "Test Methods for Ceramic Tiles-Part 2: Inspection of Dimensions and Surface Quality", EN98-84/BS6431 "Ceramic Floor and Wall Tiles" Dimension and surface quality inspection method", ASTM C485-83 "Tile Warpage Measurement Method"

The main technical parameters

Measurement accuracy: ±0.1mm;

Measuring range: 100×100～600×600 (mm) adjustable;

The instrument must be equipped with a standard board for testing.

The size of the standard board and the size of the test sample are one to one; the standard board for ceramic tile testing (aluminum alloy material) such as 600×600, 300×300, 200×200 (mm) Various specifications can be customized according to customer requirements. The accuracy of the above-mentioned standard board is better than 0.1mm, and it has a verification certificate from the measurement and testing department. (Optional purchase)

The linear bearing is used as the guide rail, which makes the operation more convenient.

Principle and structure

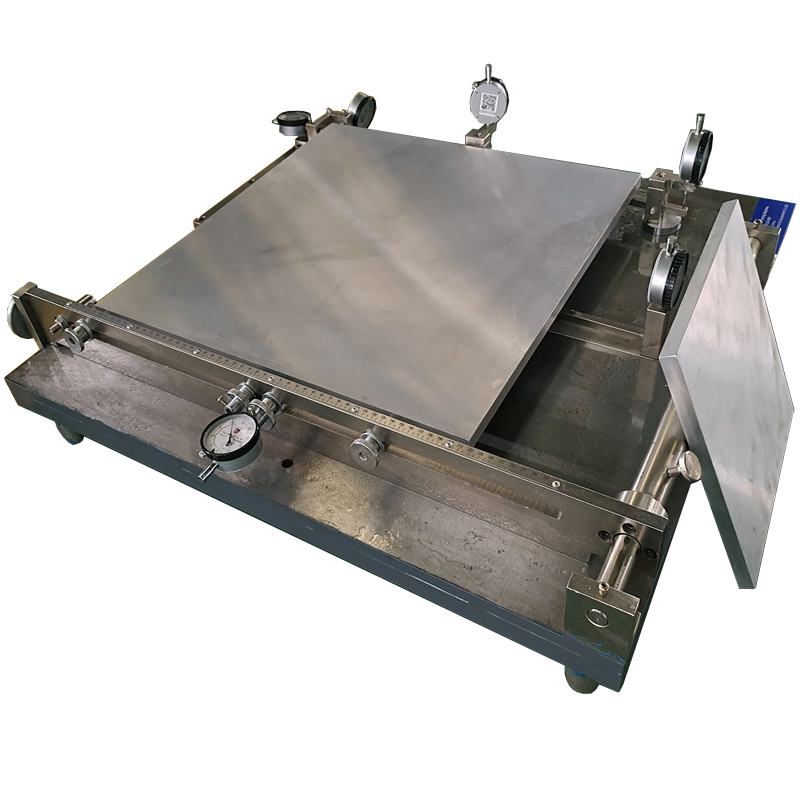

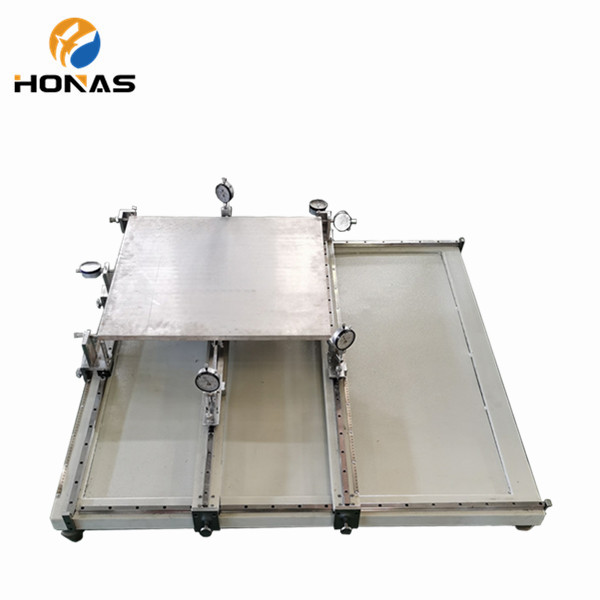

This instrument consists of a support plate, a movable left support and a right support to form a rectangular coordinate system. There are three equal height support pins on the flat plate with a similar appearance to the ceramic tile and a standard plate with ideal dimensions for detection, and adjust the meter value to an appropriate position, and write down the indicated value. Then, replace the standard plate with the measured ceramic tile, and measure six index parameters without moving the measuring point. The left and right support and the center measurement support can be moved in parallel on the plate to form the spatial coordinates of different positions to suit the measurement of ceramic tiles of different specifications and size
