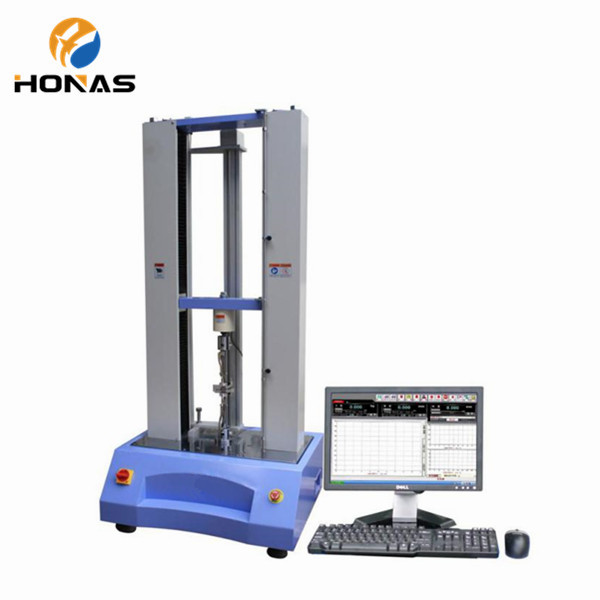

10KN Tensile test machine for wire test

Resolution:1/500,000
Load accuracy:±0.25%F.S
Effective measurement range:0.25%~100%F.S
Effective stretching space:800mm
Product description:10KN Tensile test machine for wire test
INQUIRY EMAIL

10KN Tensile test machine for wire test

Application:

This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.

Technical parameter:

capacity	10KN
Unit switching	N，KN，Kgf，Lbf
Resolution	1/500,000
Load accuracy	±0.25%F.S
Effective measurement range	0.25%~100%F.S
Effective stretching space	800mm
Effective measurement width	400mm
Test speed range	0.001~500mm/min
Deformation measurement	10~800mm
Deformation measurement accuracy	Within 0.5% of the indicated value
Test bench installation	Mechanical limit
Test bench lifting device	Fast / slow speed automatic control, jog control
Test bench return function	Manual or automatic return, automatic carriage return
Overload protection	10% of maximum load, the machine automatically protects
Dimensions	830x670x1940mm
Weight	About 245kg
Noted	Can do the elongation test,can test the wire diameter 0.1-9mm(with two fixture)
