  • High quality sanitary ware water tap flow rate tester

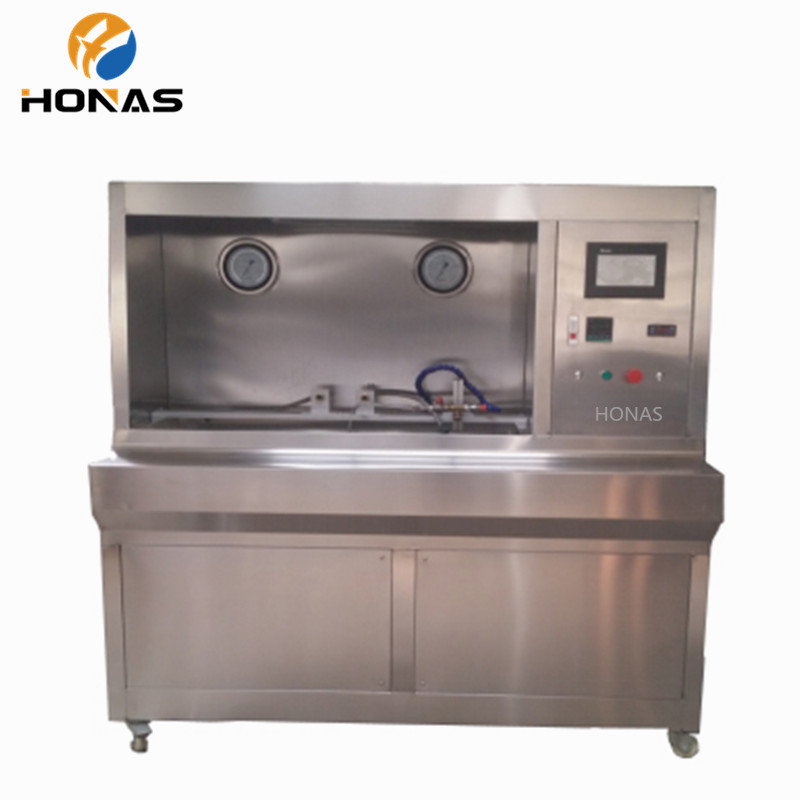

High quality sanitary ware water tap flow rate tester

High quality sanitary ware water tap flow rate tester

  • Materials :SUS304 stainless steel
  • Pressure range:0. 01~0.6MPa (adjustable) dynamic
  • Practical power:15KW
  • Protection :Overload, leakage protection
  • Product description:High quality sanitary ware water tap flow rate tester
  • INQUIRY   EMAIL

Bathroom accessaries test equipment

Application:

The system running process is:The hot and cold water source is given by the water tank,working with a pressure pump,constant pressure frequency conversion system gives the required constant water pressure,automatically control the water source via a solenoid valve,the tooling product effluent to the sink,the water in the tank is returned to the water tank for recycling.The specific settings and detection parameters are set and displayed on the display unit and the inverter panel.


It is mainly designed and manufactured according to national standard, American standard, European standard and Australian standard.


Equipment requirements technical parameters

1.US standard requirements: cold water 10 ± 6 °C, hot water 66 ± 6 °C, water pressure 20 ± 2 psi (low), 125 ± 2 psi (psi). The maximum flow rate is 60 psi (water temperature: 5-71 °C), and the minimum flow number is 20 psi (water temperature: 5-71 °C). Shower 80psi (38 ± 6 °C).

2.European standard: cold water 10-15 °C, hot water 60-65 °C water pressure 0.3 MPa. The water pressure of the low pressure tap is 0.1 bar (the required water temperature is the same)

3.National standard: cold water 10-15 °C, hot water 60-65 °C water pressure 0.1MPa.


二、Technical parameter:

Item

Parameter

Standard

ASTM , EN, BS

Station

1pcs

Materials

SUS304 stainless steel

Pressure range

0. 01~0.6MPa (adjustable) dynamic

Power supply

380V

Test time

0-999s adjustable

Temperature range

Hot:room temperature~90℃(adjustable

Cool:10~room temperature

Practical power

15KW

Flow measurement

Average flow, maximum instantaneous flow, and cumulative flow

Cooling type

Direct cooling refrigeration system

Protection

Overload, leakage protection

External size

1650×1000×1700
