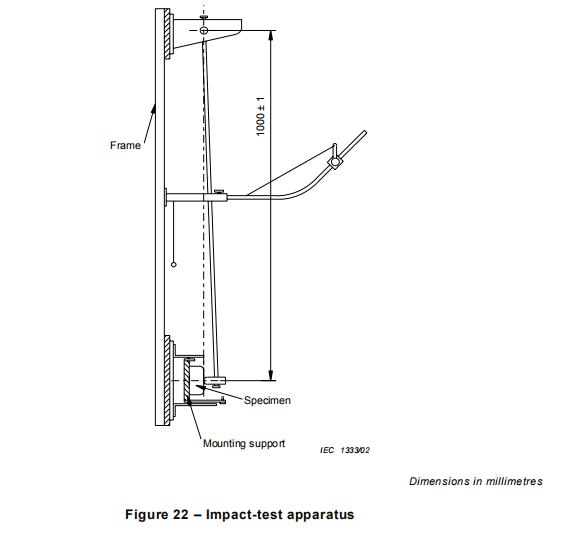

IEC60884 fig22 plug socket covers pendulum impact test apparatus

standard:iec60884 fig22
Pendulum steel pipe: length 1000mm
mounting bracket: weight 10 ± 1 kg
impact energy :below 2J

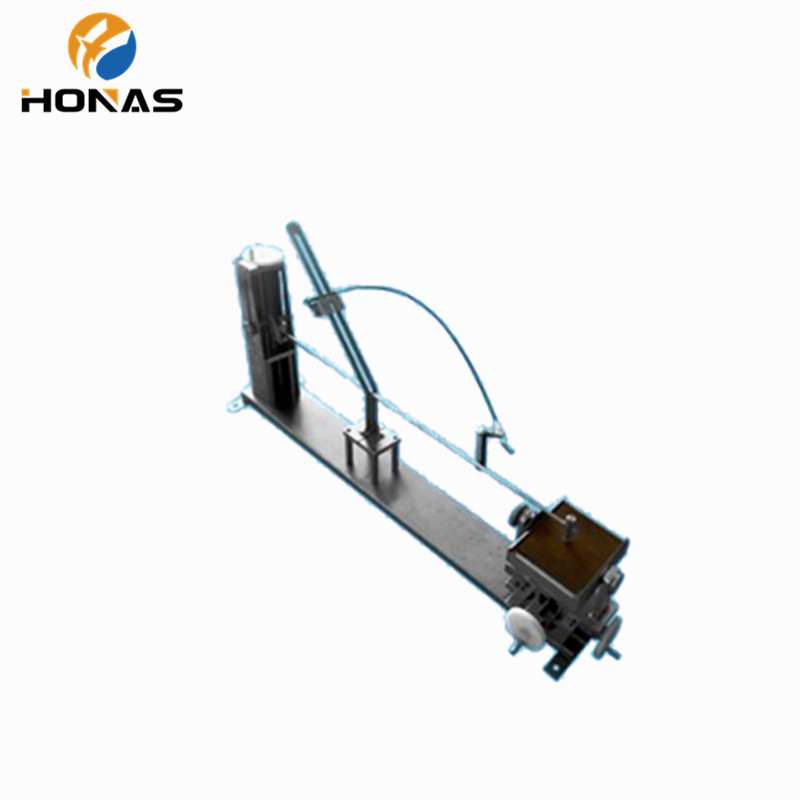

Product description:IEC60884 fig22 plug socket covers pendulum impact test apparatus
INQUIRY EMAIL

IEC60884 fig22 plug socket covers pendulum impact test apparatus

Meet the standard: GB2099.1-2008 Article 24.1 and Figure 22-26, GB16915.1-2014, IEC884-1 Figure 22-26, GB2423.55, IEC60068-2-75

Uses: Suitable for household and similar plugs and sockets, wall mounted mounting boxes, screw glands, covers, switches and other electrical accessories for mechanical strength test

Sample range: plug and socket, wall mounted mounting box, screw gland, cover, switch and other electrical accessories

Structure and function: The mounting bracket can be moved up and down, left and right, and the impact angle can be adjusted. This device is a low energy pendulum impact device below 2J.

Technical Parameters:

1. Pendulum: steel pipe with length of 1000mm, outer diameter of 9 mm and wall thickness of 0.5 mm, mass 100±1g;

2, the mounting bracket: weight 10 ± 1 kg, the structure is firm, X, Y axis is adjustable, can be rotated ±90 ° around the rotation axis of the mounting plate.

3, the impact hammer according to the standard, with 150g hammer (equivalent mass 200g), 200g hammer optional

4.The impact energy, equivalent mass and drop height are shown in the table below.

Energy/J	0.14	0.2		(0.3)	0.35	(0.4)	0.5		0.7	1	2	5	10	20	50
Equivalent mass/kg	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0 .25	0.5	1.7	5	5	10
Drop height±1%mm	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), g round the whole value of 10m / s2.
