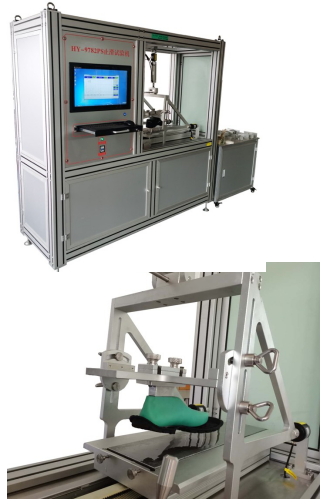

ASTM20345 slip resistance tester for safety shoes test

Application:

used to test the anti slip performance of the rolling or bottom to bottom working state;

Standards:

GB / T 28287-2012, en 13287-2012, ASTM f2913-2011 (ASTM f1677-2005), SATRA tm144 EN 15020344, EN 15020345；

Principle: according to different media (not referring to weak board, ceramic tile or specified), add specified section check. Set the specified times and speed of alum wiping to measure the bottom to bottom friction coefficient, so as to determine the sliding resistance of each sub;

Test item:

follow xiaowat forward (Forward heel slip)

Back in front of you (Backward forepart slip)

Forward five to Wan Zhen (Forward flat slip)

Specifications;

1.Vertical pressure: 0-1000n;

2.Horizontal tension: 0-1000n;

3.The test speed is adjustable from 0 to 0.3 ± 0.03 M / s;

4.The stroke of movable board: 0-200mi;

5.Static contact time: 0 ~ 5 s;

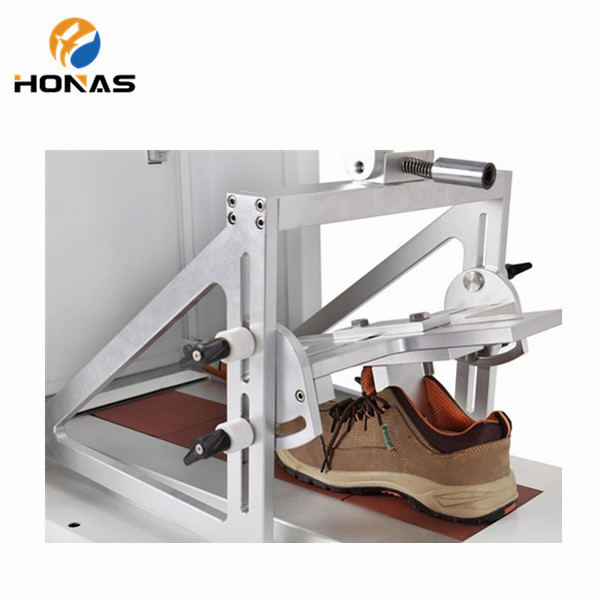

6.Shoe last fixing device: 0-30;

7.Vertical sensor: 1kn one (Japanese NTS disc type);

8.Horizontal sensors: two 1knv (Japanese NTS disc type);

9.Accuracy: ± 0.5%;

10.Vertical pressure control accuracy: ± 1%;

11.Vertical pressure control time: 0 ~ set value, less than 0.2 s;

12.Planetary reducer: reduction ratio 1:15, low noise during operation;

13.Precision linear guide rail is adopted;

14.Brake clutch: Taiwan research and Development Co., Ltd;

15.Transmission timing belt: Samsung, Korea;

16.The accuracy of displacement sensor is 0.001mm;

17.Working table: 600 * 320mm (made of stainless steel);

18.Control motor: Panasonic 750W servo motor;

19.Pressurization system: controlled by Japanese SMC proportional valve, set by computer and automatically pressurized;

20.Loading frame: made of aluminum alloy;

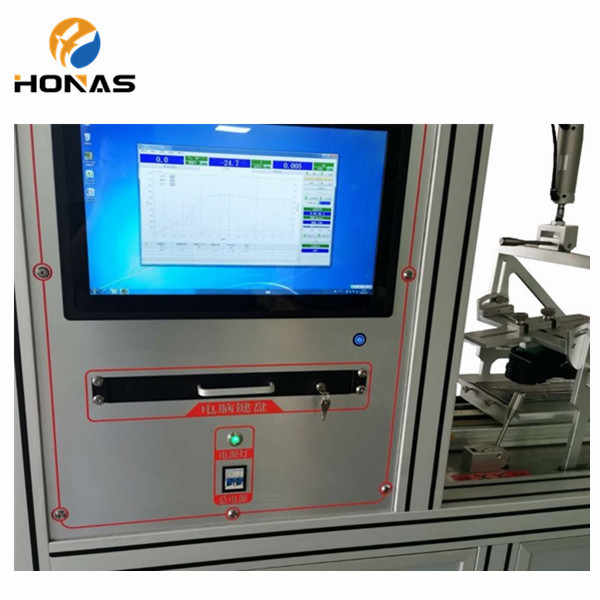

21.Control system + software: the high-speed acquisition system and special test parts developed by hengzi company, and the test methods such as en13287, satrm144, astmf2913, GB / t3903.6, etc. are directly used; 22. The force application cylinder: the simc cylinder of Japan is used;

23.Protection capacity: leakage protection, pressure overload protection, air buffer travel limit protection. Emergency stop switch;

24.Mould angle gauge: 7 ° and 5 ° respectively;

25.Compressed air: minimum 6 bar, with cleaning capacity after grinding (pneumatic gun);

26.The instrument is equipped with a foldable quick loading rack; the size (L * w * h cm): 191 * S0 * 175;
