Other gauges

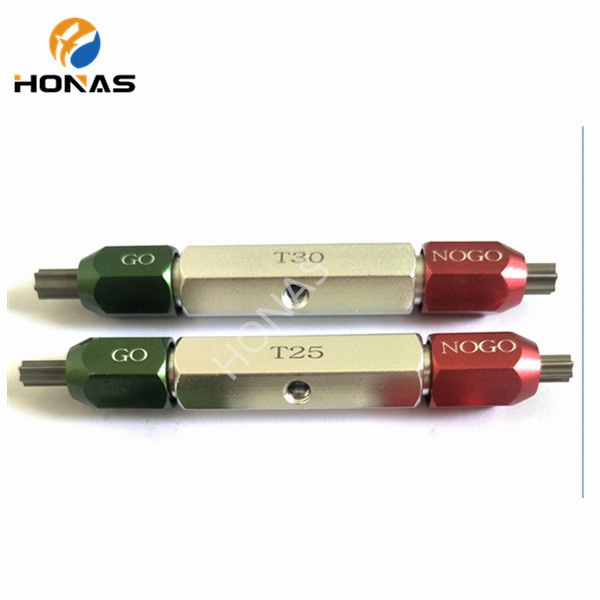

  • DIN EN ISO10664 torx go no go thread gauge
DIN EN ISO10664 torx go no go thread gauge

DIN EN ISO10664 torx go no go thread gauge

  • standard:ISO10664
  • SIZE:T10 T20 T25 T40 T45
  • Delivery time:3-20days
  • warranty:12monthes
  • Product description:DIN EN ISO10664 torx go no go thread gauge
  • INQUIRY   EMAIL

Principle:

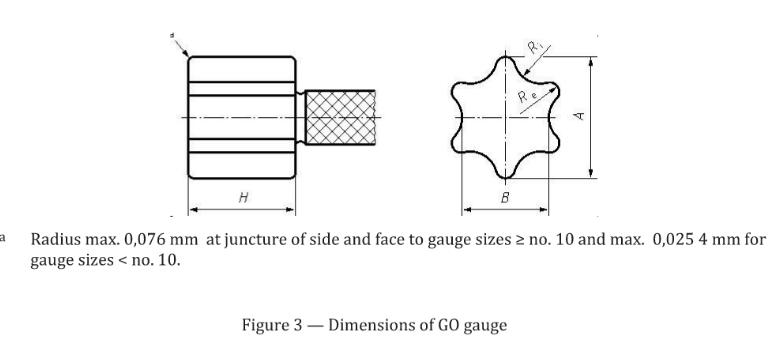

The hexalobular internal driving feature shall allow the go gauge to enter freely to the penetration depth,t, as specified in the relevant product standards.

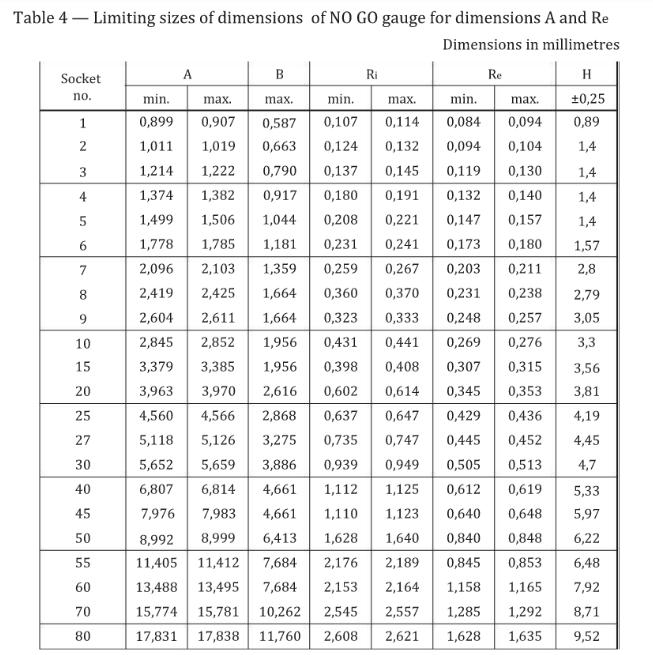

The no go gauges shall not enter the hexalobular internal driving feature to a depth greater than the fallaway allowance specified
