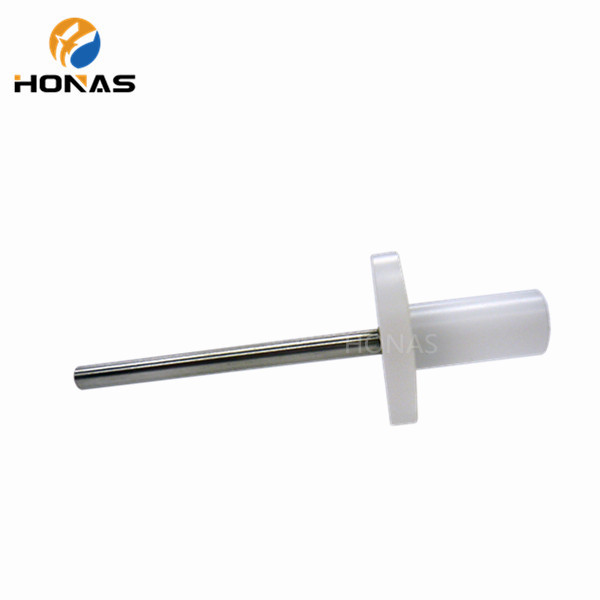

electrical safety tester IEC61032 long test pin probe 12
- The Probe Diameter：4mm
- The Probe Length ：50mm
- Dam-board Diameter：25mm
- Dam-board Thickness：4mm
- Product description:electrical safety tester IEC61032 long test pin probe 12
Application:

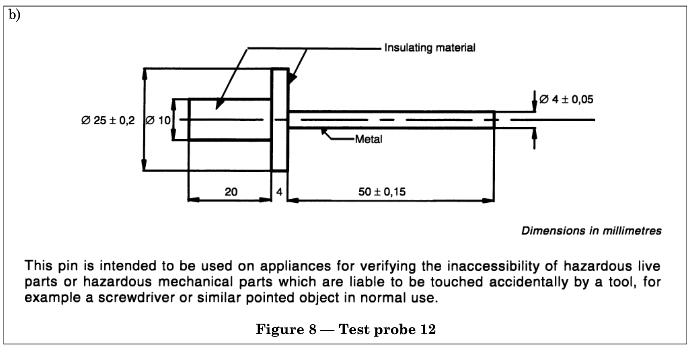

The Long Test Pin (Figure 8 - Test probe 12) of IEC 61032.
This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
Technical parameter:
|
Materials |
Nylon+ Stainless Steel |
|
The Probe Diameter |
4mm |
|
The Probe Length |
50mm |
|
Dam-board Diameter |
25mm |
|
Dam-board Thickness |
4mm |
|
Standard |
IEC61032-Probe 12-Figure 8 |
|

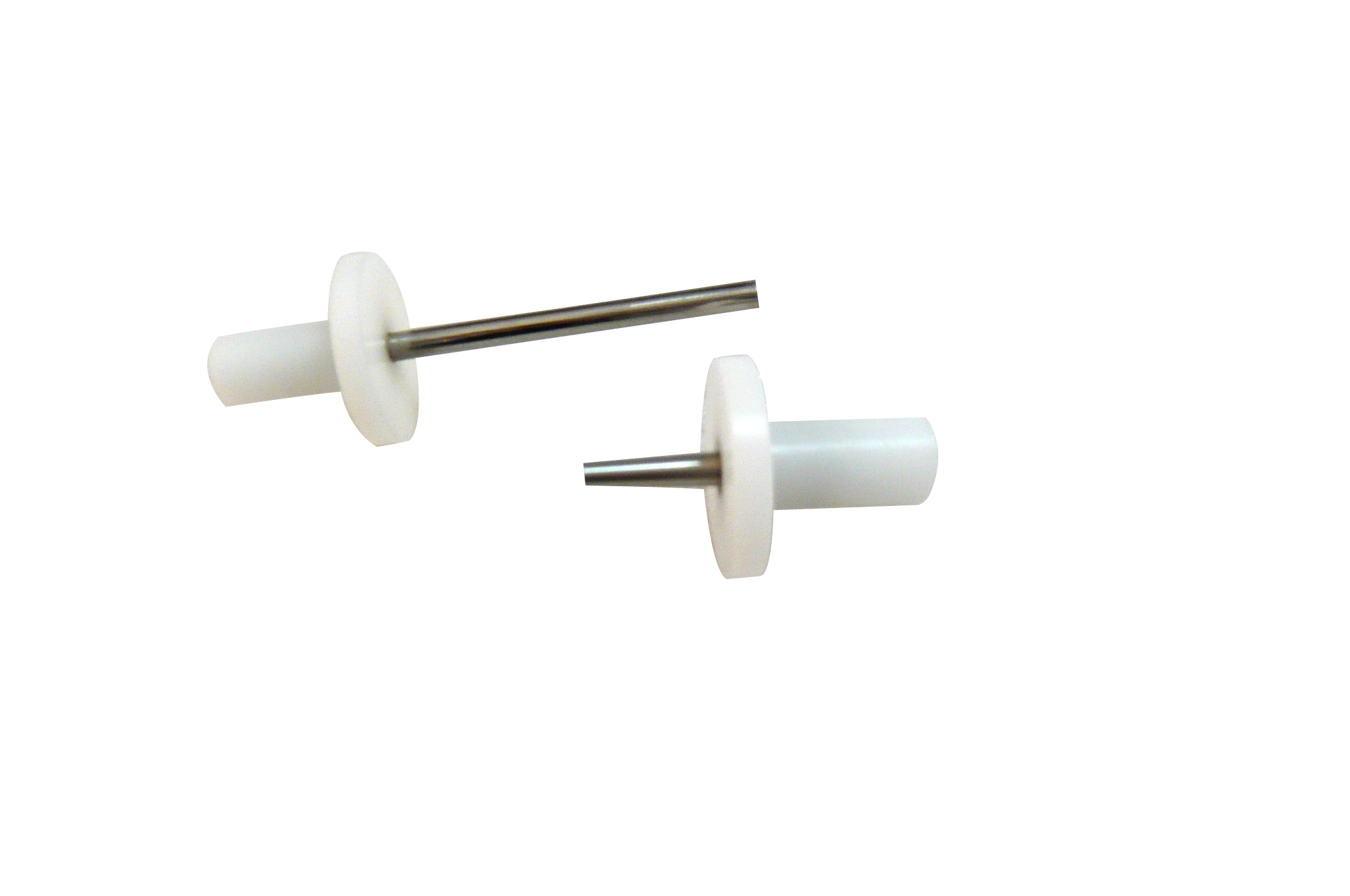

Product picture |
Reference Standard |
Specification |
|
Long test pin probe |
IEC61032 |
The probe Diameter:4mm The probe Length:50mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
|
Short test pin probe |
IEC60065 IEC60335-1 IEC61032 |
The probe Diameter:Head 3mm Tail 4mm The probe Length:15mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
