IEC60884 plug socket Torque resistance strength test device

IEC60884 plug socket Torque resistance strength test device

Standard: IEC 60884-1 2013 clause 24.6, IEC 60598-1 clause 4.12.5 Application: This device is use for test the torque resistance strength of screwed gland of lamps and similar appliances.

Test sample: Screwed gland of lamps and similar appliances.

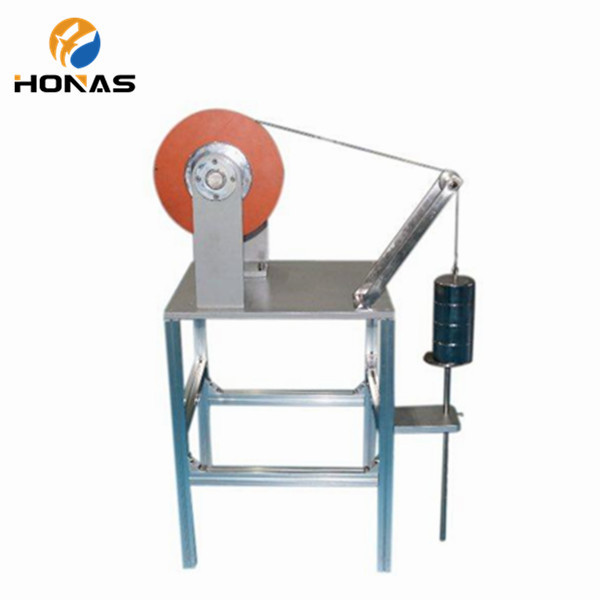

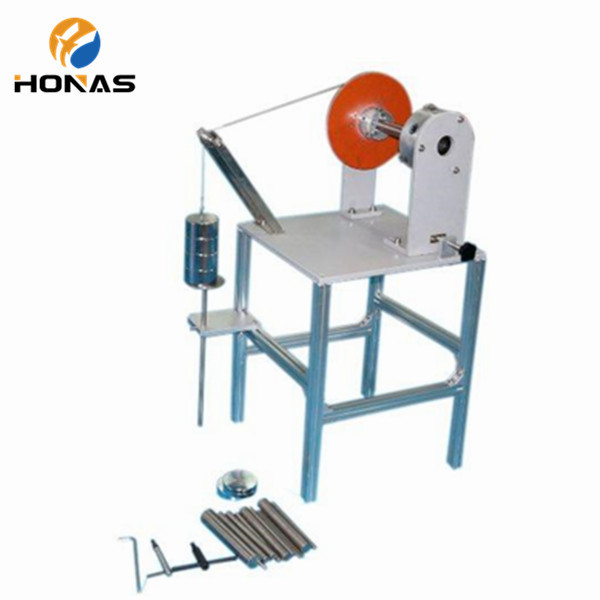

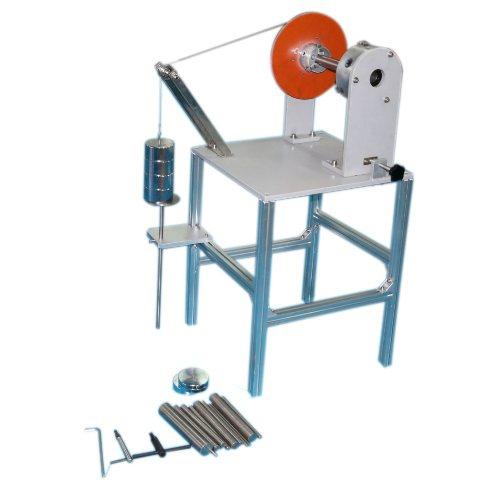

Feature: Floor type support, lifting weights mechanism drive turntable to achieve torque test.

Parameters:

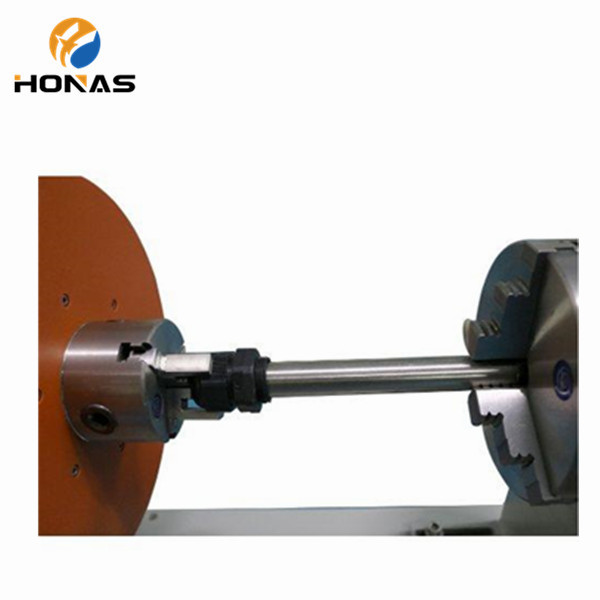

Cylindrical metal rod: Ф5, Ф7, Ф9, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф22, Ф25, Ф30, Ф32, Ф40mm, one each, 14 pc in all

Weights: 20N, 40N, 50N, 60N weight with hook, one each; 10N, 20N weight with hole, one each. Can meet the test requirements to most screwed glands.

Diameter of the disc: 250mm(500mm disc for option, with less weights)
