Face mask test equipment

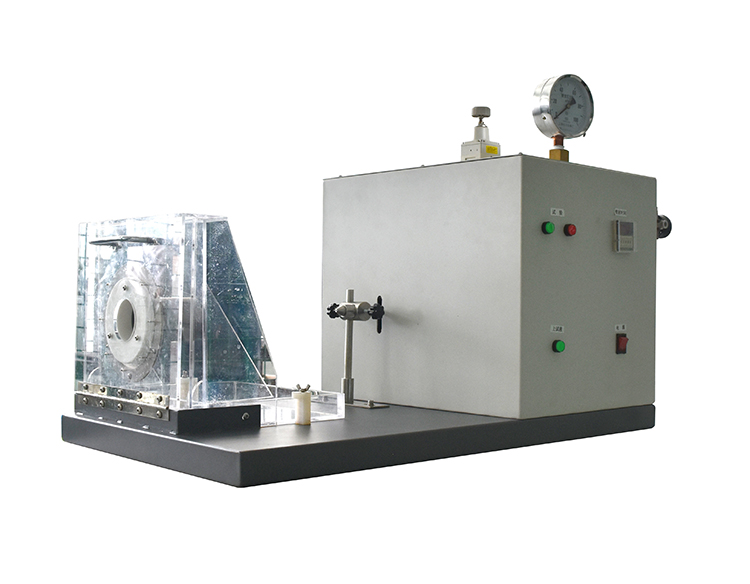

Medical Face Masks tester for Resistance against Penetration by Synthetic Blood

Spraying distance: 300mm ～ 310mm adjustable
Needle tube inner diameter: 0.84mm
Spraying speed: 450cm / s, 550cm / s, 635cm / s
Spraying speed: 450cm / s, 550cm / s, 635cm / s
Product description:Medical Face Masks tester for Resistance against Penetration by Synthetic Blood
INQUIRY EMAIL

Uses: Used to detect the resistance of medical masks to penetration of synthetic blood under specified test conditions.

Standards compliant:

GB / T 19083-2010 Technical requirements for medical protective masks 5.6 Penetration barrier performance of synthetic blood

YY 0469-2011 medical surgical mask 5.5 synthetic blood penetration testISO 22609: 2004 Protective Equipment for Infectious Pathogens Test Method for Penetration Resistance of Medical Masks to Synthetic Blood (Fixed Volume, Horizontal Jet)

ASTM F1862-07 Standard Test Method for Resistance of Medical Face Masks to Penetration by Synthetic Blood (Horizontal Projection of Fixed Volume at a Know Velocity)

Technical Parameters:

1. Spraying distance: 300mm ～ 310mm adjustable

2. Needle tube inner diameter: 0.84mm

3. Spraying speed: 450cm / s, 550cm / s, 635cm / s

4.Liquid ejection speed:0.6kPa, 16.0 kPa, 21.3 kPa (ie 80mmHg, 120mmHg, 160mmHg)

5,Equipment weight :about 50kg

6.Power:220V 50 Hz

7.Environment temperature:20℃±2℃

8.Relative humidity: 65±2%

9.Dimension: about 116*42*52cm air pump: about 56*37*56cm
