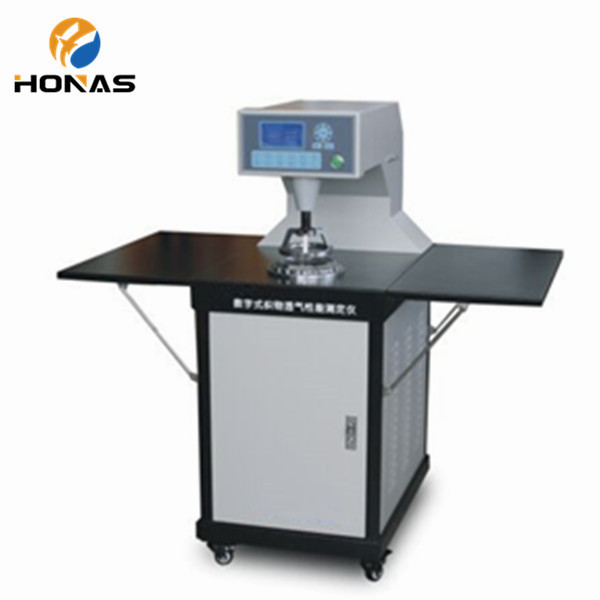

Textile Fabric Air Permeability Testing Machine

Application:

It is used to measure the air permeability of various textile fabrics, including industrial fabrics, non-woven fabrics and other textile products and other breathable materials.

Related standards:

GB / T5453 GB / T13764 ISO9237 ISO7231 ISO5636 ASTM D737 DIN 53887 JIS L1096 BS5636

Instrument characteristics:

1. Automatic sample clamping, automatic nozzle replacement, and quick test.

2. Microcomputer processing, the test results are displayed directly, without manual table calculation.

3. Built-in continuous test mode, the test unit can be switched as needed.

4. Chinese LCD menu operation, configure computer interface.

Technical Parameters:

1. Range of sample pressure difference: 1 ～ 4000Pa

2. Measurable air permeability: 1 ～ 40,000mm / s

3. Measurement error: ≤ ± 2%

4. Measurable fabric thickness: ≤8mm

5. Test area: 5cm2; 20cm2; 50cm2; 100cm2;

                       Ф50mm (≈19.6cm2)

                       Ф70mm (≈38.5cm2)

6. Power source: AC220V 50Hz 2kW

7. Shape: 1250 × 700 × 1250mm

8. Weight: 80kg
