30A with resistance conductance capactive load cabinet for socket tester

1.Application:

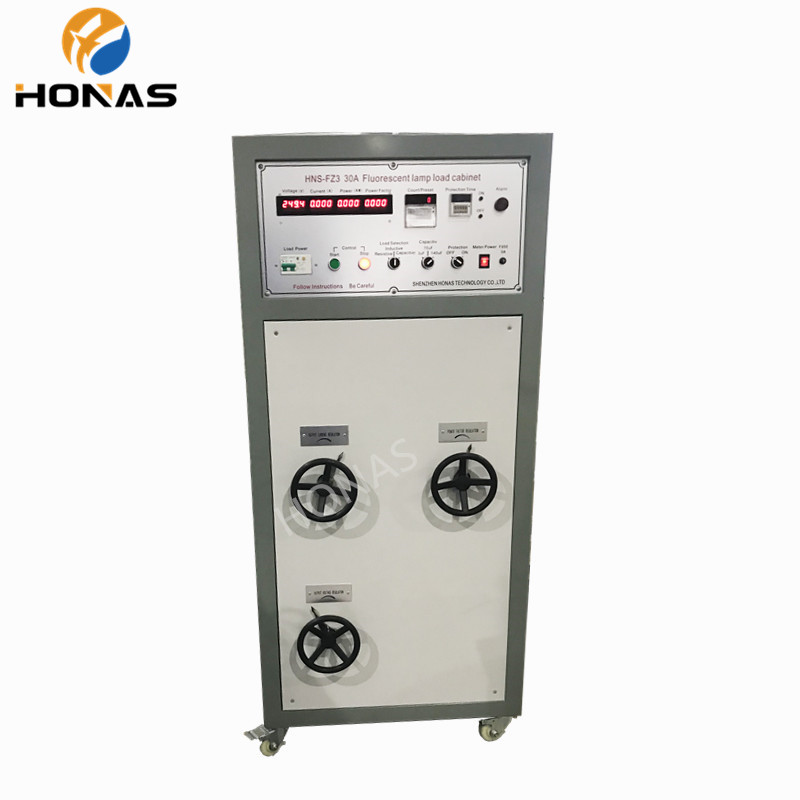

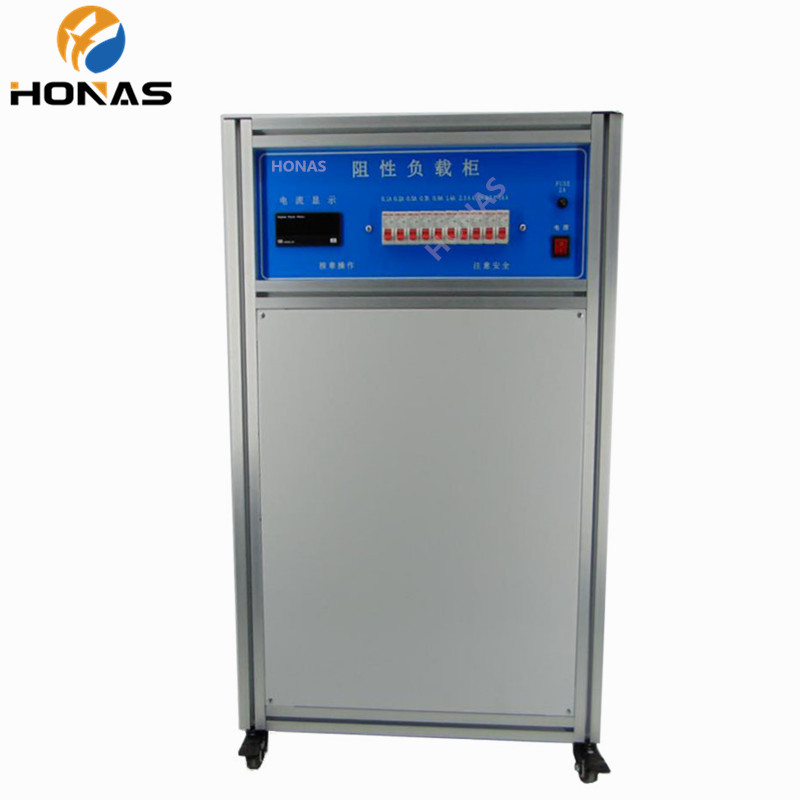

Appearance dimensions are: width (720mm) × depth (600mm) height (1500mm), frame color is blue gray, side panels are light gray. The front side is the operation control panel, and the panel is made of high-quality aluminum plate by etching, sand blasting and coloring process, which is beautiful and durable.there is Control power switch, product current, voltage and power, power factor display instrument, load power output switch, status indicators, current output and stop button, alarm, etc on this equipment .

Below the front of the machine are voltage output adjustment knobs, current adjustment knobs and inductance adjustment knobs, capacitance switchers, and load type changeover switches. There are load combinations, AC contactors, relays, and the heat is cooled by strong wind.

2.Technical parameter:

1.Use power: with ground single-phase AC220 ± 10% / 50Hz.

2.Test power supply: single-phase AC220±10%/50Hz or two-phase three-wire AC380±10%/50Hz.

3.Digital display voltmeter: range 0 ~ 300V, accuracy ± 0.5% ± 2d.

4.Digital display ammeter: range 0 ~ 30A, accuracy ± 0.5% ± 2d.

5.Digital power factor meter: range 0.3～0.999, accuracy ±0.5%±2d.

6.Load mode: three-in-one function of resistive, inductive and capacitive load.

7.Number of outputs: 1 way.

8.Load power capacity: 7.5KVA.

9.The maximum output current is 30A, and the load is automatically cut off when it exceeds 35A.

10.The maximum output voltage is 300V, and the load is automatically cut off when it exceeds 305V.

11.The capacitive load is equipped with three sets of capacitors: 70uF, 140uF, and 7.3uF.

12.Counter: 0~999999 times can be preset.

13.Ambient temperature: 5 to 40 ° C, relative humidity: (20 to 90)% RH

14.Atmospheric pressure: 80 ~ 106kpa

15.No strong vibration, vibration, no electromagnetic interference, no dust, explosive, corrosive gas, good heat dissipation.
