test probe

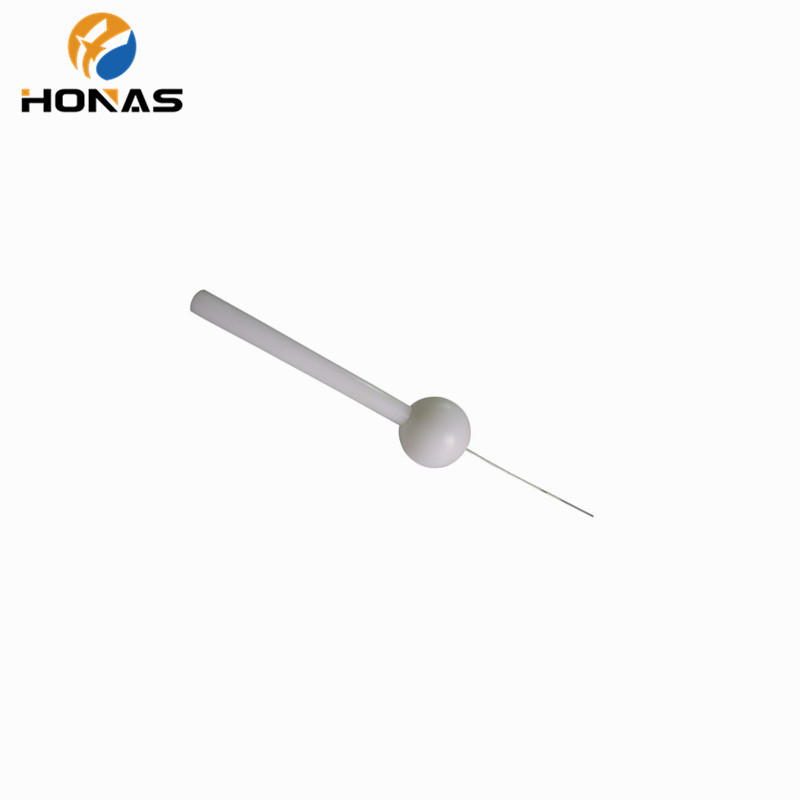

IEC 61032 IP3X 2.5mm handheld disjointed test rod probe C

Test probe diameter:2.5+0.05 mm
Dam-sphere diameter:S 35±0.2mm
Handle diameter:10mm
Handle length:100mm
Product description:IEC 61032 IP3X 2.5mm handheld disjointed test rod probe C
INQUIRY EMAIL

Application:

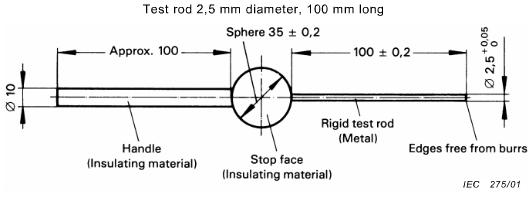

IEC61032 fig 3 IP3X 2.5mm test rod is mainly manufactured for testing the protection against access to hazardous parts,such as hand tools .

Standard:

According to IEC60529: Degrees of protection provided by enclosures(IP Code)

The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.

Technical Parameter:

Model	HNS-P3C	HNS-P3C-F
Name	Test probe C	Test probe C with force
Test probe diameter	2.5+0.05 mm
Dam-sphere diameter	S 35±0.2mm
Handle diameter	10mm
Test probe length	100±0.2mm
Handle length	100mm	----
Force	----	3N force
Standard	IEC61032.1/GB16842.1/IEC60529	IEC60529/GB4208

Customized:

Equipped with terminal block for electric shock test, or M6 threaded hole at the end of the handle (used with push-pull force meter) for shell protection test

It can be with 3±0.3N force (HNS-CT)
