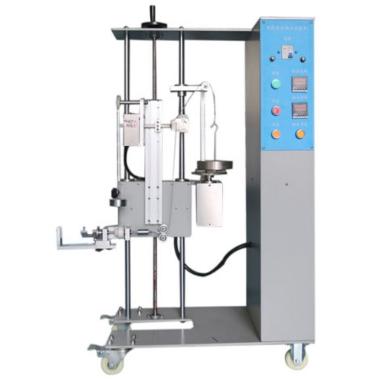

IEC60598 power cable pull tension torque test equipment

IEC60598 power cable pull tension torque test equipment

Compliance with the standard:

GB4706.1-2005 "Safety of household and similar electrical appliances - Part 1 general requirements" 25.15, GB2099.1-2008, 5, GB7000.1, IEC60335-1, IEC60884-1, IEC60598-1

Uses:

It is used to test the tension and torque at the terminal for power supply lines such as appliances with power cords and appliances that are intended to be permanently connected to fixed wiring with flexible cords, medical equipment, lamps, etc. Check that the clamping device is secure.

Sample range:

household appliances, medical equipment, lamps, plugs and sockets

Structure and function:

The device adopts Z-shaped structure, which can be used to test the firmness of clamping terminals of large household appliances such as refrigerators and washing machines. The test method is to mark a wire sample 20 mm from the fixture position, then apply a tension 25 times at a rate of 1 time/second, and then apply a torque close to the appliance position for 1 minute. After the test, the wire mark position displacement does not exceed 2 mm.

Technical Parameters:

1, working power: AC220V 50HZ;

2, pull weight: 20N three, 30N two (can achieve 30N, 60N, 80N, 100N pull);

3, Torque weight: 5N, 12.5N, 17.5N each, torque arm 20mm (can achieve 0.1Nm, 0.25Nm, 0.35Nm torque);

4, the number of pulls: 0~999999 can be preset, the default is 25 times;

5. Pulling frequency: 1 time/second;

6, torque time: 0.01S ~ 99 hours 59 minutes 59 seconds.

7. Fixture: The combination of the tension clamp and the torque clamp, the middle of the bearing is matched to reduce the friction during the torque test;

8. The equipment adopts the motor cam ejector mechanism and Z-shaped connection, so that the fixture can clamp the sample with the power line above 150mm on the bottom surface.

9, sample tension torque matching table

10, equipment dimensions and weight: 900 × 500 × 1200mm, 120kg
