Bathroom accessaries test equipment

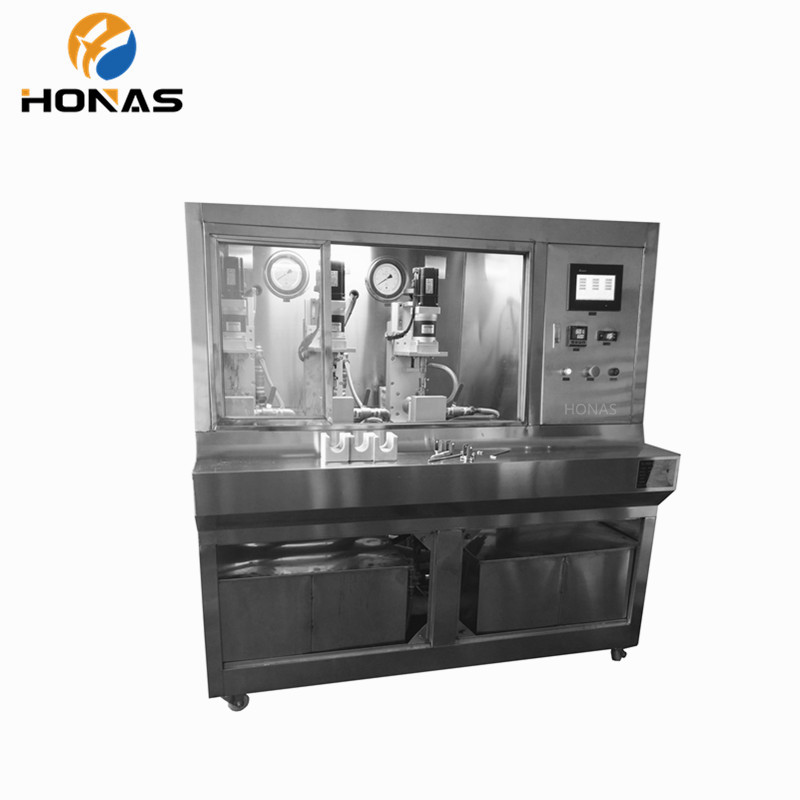

EN1112 shower ball head life test machine with hot and cold water

Working pressur:externally 0.3MPa-0.6MPa
Maximum power:16KW
Flow rate:Qmax=4m3/h
Working water pressure dynamic pressure:0.1MPa-0.5MPa adjustable
Product description:EN1112 shower ball head life test machine with hot and cold water
INQUIRY EMAIL

Application:

This machine adopts imported man-machine interface and programmable controller to form the control core. The cold and hot water is equipped with independent constant pressure variable frequency water supply and independent refrigeration and heating system. The machine is also equipped with drive and mechanical device to mechanically spray the ball head. Action test to test the life of the shower head.

Parameter:

Item	Parameter
Station	2pcs (can simultaneously perform 2 shower head life tests)
Working water temperature	cold water 10±6°C (settable), hot water 66°C±6°C (settable)
Working water pressure dynamic pressure	0.1MPa-0.5MPa adjustable
Working pressure	externally 0.3MPa-0.6MPa
Working voltage	Three-phase four-wire AC380V (heating, cooling, pump AC380V, other AC220V), with grounding
Maximum power	16KW
Flow rate	Qmax=4m3/h
Control system	PLC+7 inch man-machine interface
Residence time	1-9999S adjustable
Number of tests	1-999999 can be set
Water supply system	Multi-stage vertical pump + frequency
conversion Pressure adjustment range	0.1MPa-0.5MPa adjustable
Shape, water tank material	SUS 304 stainless steel
Dimensions	About Length 1650mmWidth 1000mm Height 1700mm
Standard	GB/T23447-2009 ASME A112.18.1-2005/CAS B125.1-05 3、EN1112
