Bathroom accessaries test equipment

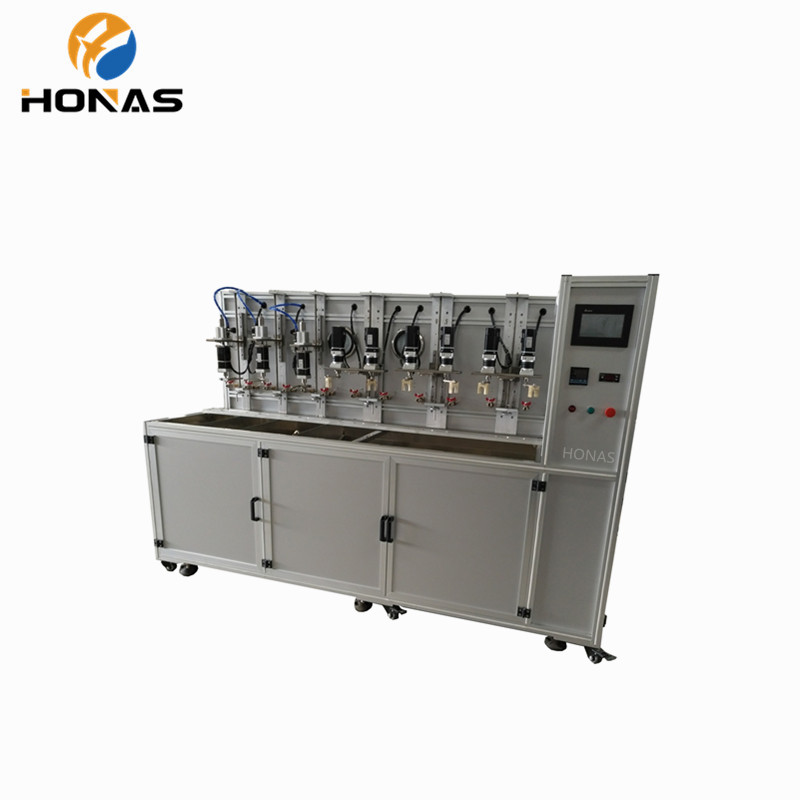

en817 water taps valve endurance life test equipment

Water supply pressure sensor range:0 ~ 1.6MPa
Cold water gauge range:0~1.6 MPa
Cold water pressure gauge accuracy:0.4 level
Cold water pressure gauge accuracy:0.4 level
Product description:en817 water taps valve endurance life test equipment
INQUIRY EMAIL

Application:

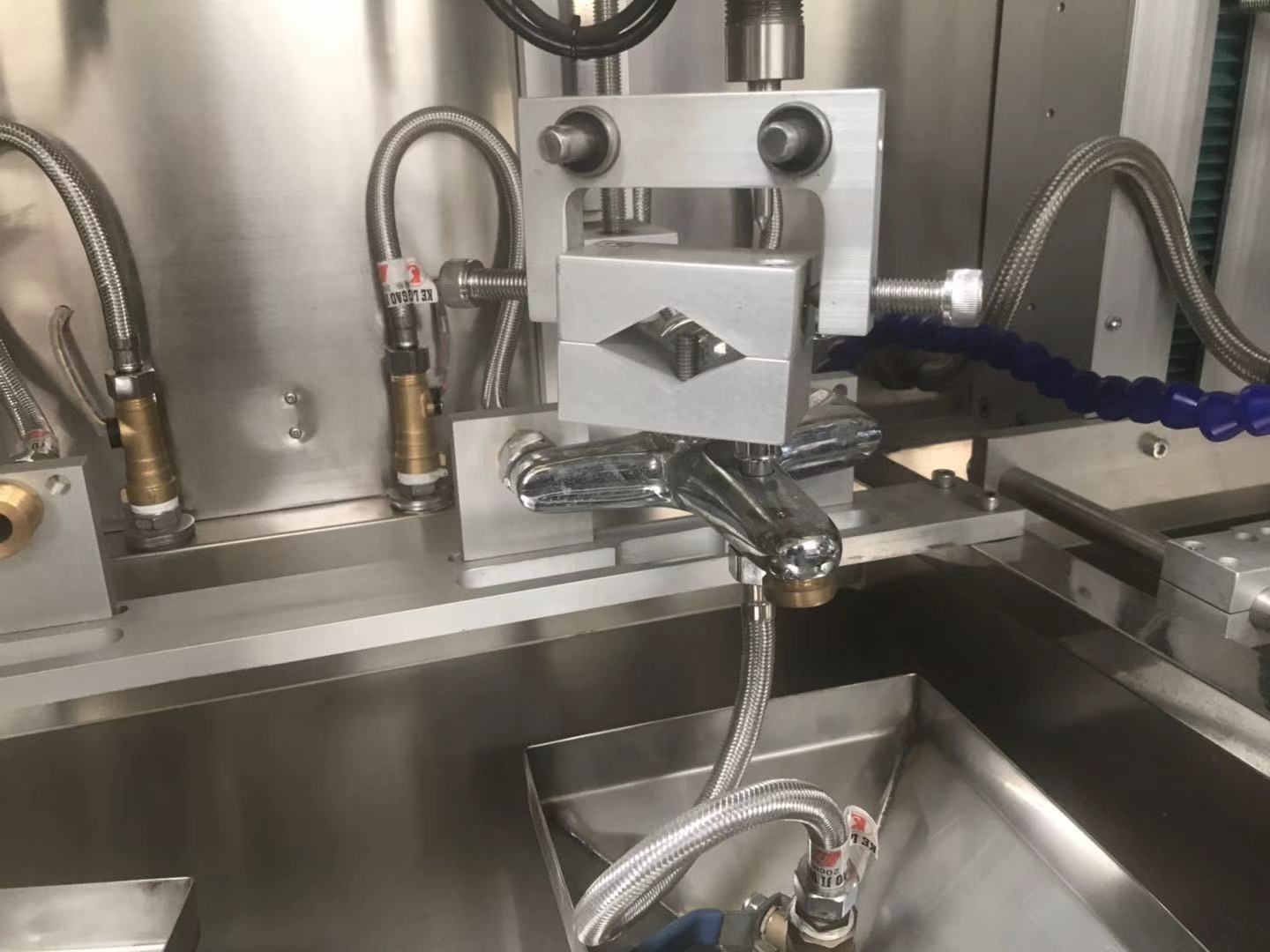

This water taps endurance test equipment is suitable for faucet switch life (single handle single control, single handle double control and double bing double control faucet) transfer switch, rotating shower life and extraction faucet life test item detection

The machine adopts the imported touch human-machine interface and programmable controller (PLC) to form the control core of the system, which is perfectly combined with the mechanical execution components to ensure the long-term stable operation of the system.

Technical parameter:

Items	Parameter
Dynamic pressure test range	0.01~0.6MPa (adjustable)
Test period	1~999 million times (can be set), the error is less than 1 time
Water supply pressure sensor range	0 ~ 1.6MPa
Cold water gauge range	0~1.6 MPa
Cold water pressure gauge accuracy	0.4 level
Hot water pressure gauge range	0~1.6 MPa
Hot water pressure gauge accuracy	0.4 level
Equipment power supply	380V
Temperature control range	Hot water: room temperature ~ 90 ° C (adjustable), cold water: within 30 degrees
Practical power	16KW
Test station	2 pcs (working separated)
Dimensions (l × w× h mm)	Operation equipment 1650×1000×1700
Standard	European standard En817,en200-2008, American Standard
Materials	SUS304 stainless steel
Controller	Programmable PLC touch screen
Water tank	2pcs(hot+cold) with hot and cold water separator
Reflux tank	V type

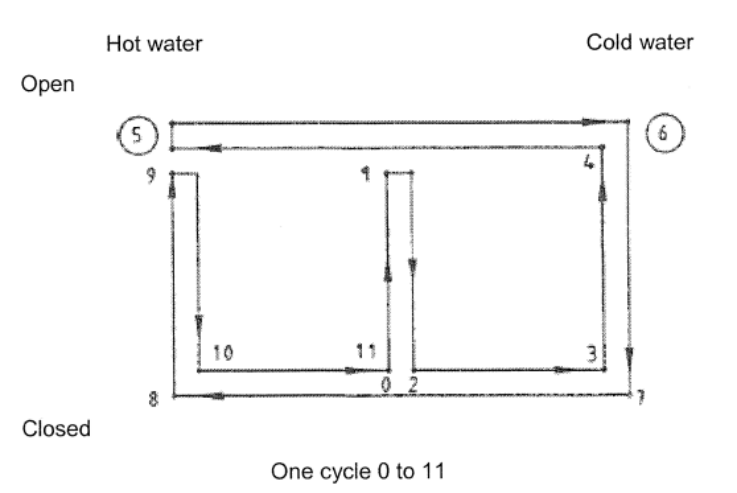

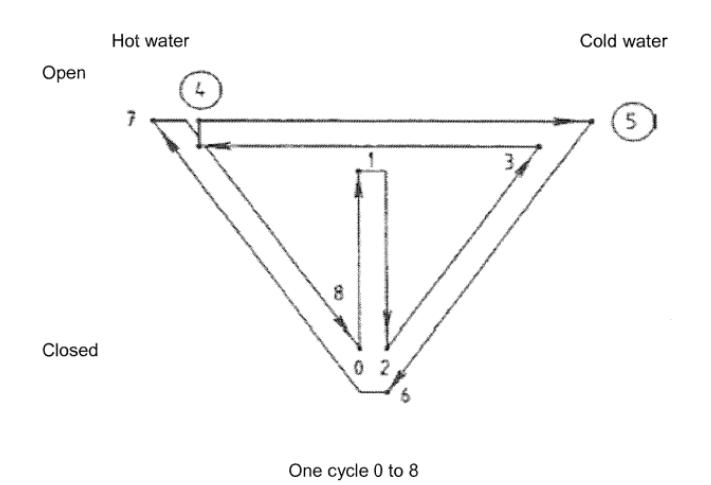

Test type	Rectangle ,triangle and American type
Water taps type	Single handle single control, single handle double control, (double handle double control-adjustable purchase)
Protection	Overload overload,leakage of electricity, heating, water supply etc
