Bathroom accessaries test equipment

EN817 Water tap pressure test equipment for faucet valve testing

Static pressure test range:0.1～3.5MPa adjustable
Medium temperature:room temperature ~ 60 ° C
Simultaneous test pipeline:1 to 3
effective volume of the water tank:80L
Product description:EN817 Water tap pressure test equipment for faucet valve testing
INQUIRY EMAIL

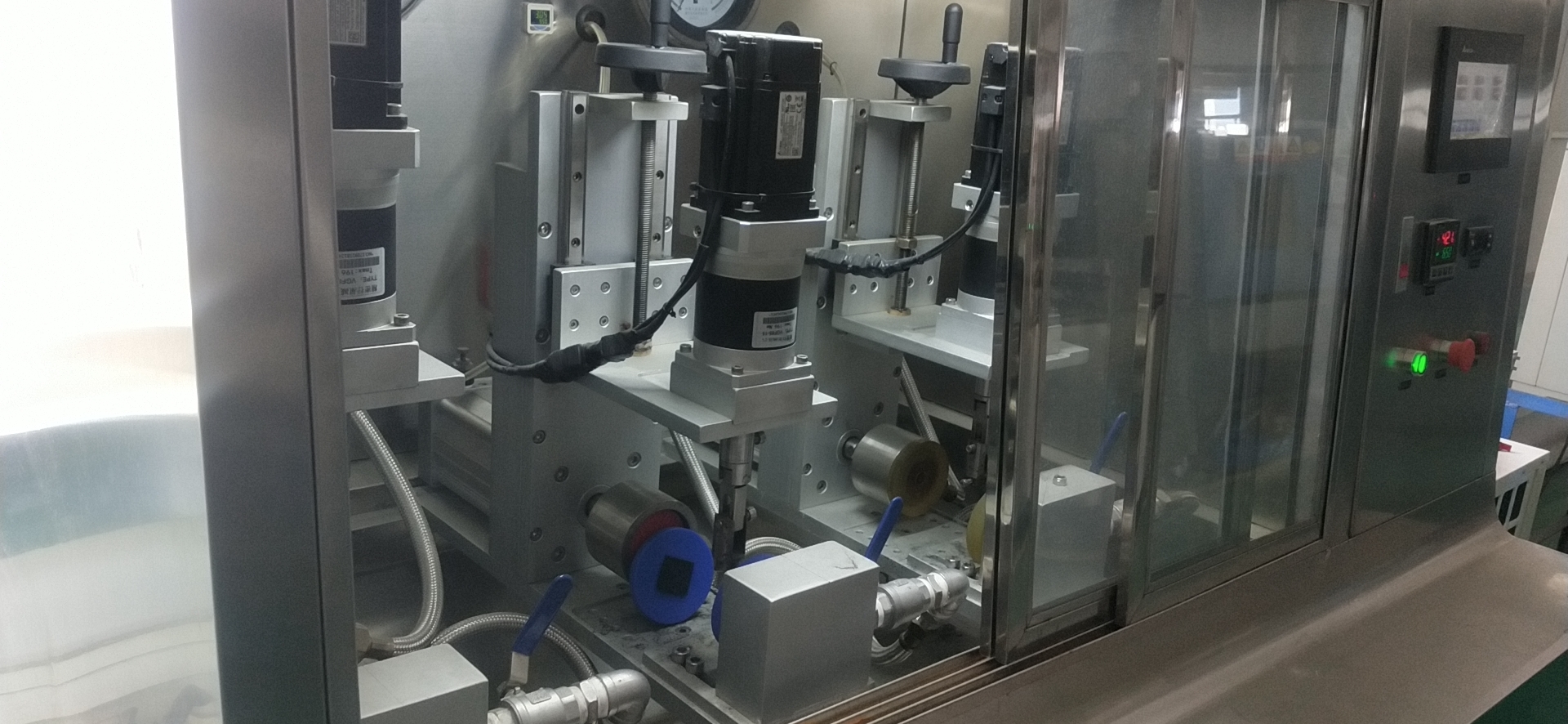

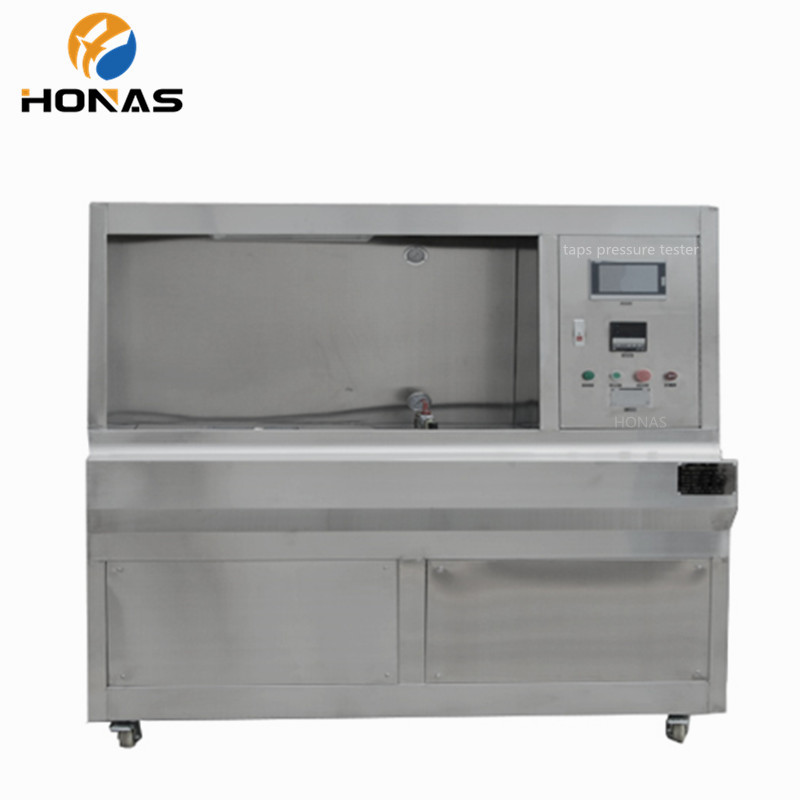

EN817 Water tap pressure test equipment for faucet valve testing

Application:

It is mainly used for testing high pressure and sealing strength of faucets, showers, valves, hoses, etc. The highest pressure is 3.5Mpa, the water temperature is normal temperature water, and it is 60+5min. It can meet various types of functions and various standards. Bathroom product testing

Parameter:

Items	Parameter
Static pressure test range	0.1～3.5MPa adjustable
Pulse frequency	0.05 ~ 1. Hz (3 times / minute ~ 60 times / minute)
Ambient temperature	room temperatur
Medium temperature	room temperature ~ 60 ° C
Simultaneous test pipeline	1 to 3
Test waveform	basic square wave or water hammer wave (see figure)
Installation method	180o or 90o; (The test piece should be installed according to the method specified by the standard)
Test medium	tap water
effective volume of the water tank	80L
Number of stations	1/2/3/4/5/6 etc (optional)
Test power	AC 380V
External size	1650×1000×1700(LWH)mm
Standard	En200 2008 en817
