Measuring gauge

IEC60335--2-9 fig104 6mm thickness steel disk measuring the hotplate

IEC60335--2-9 fig104 6mm thickness steel disk measuring the hotplate

thickness 6mm±0.03

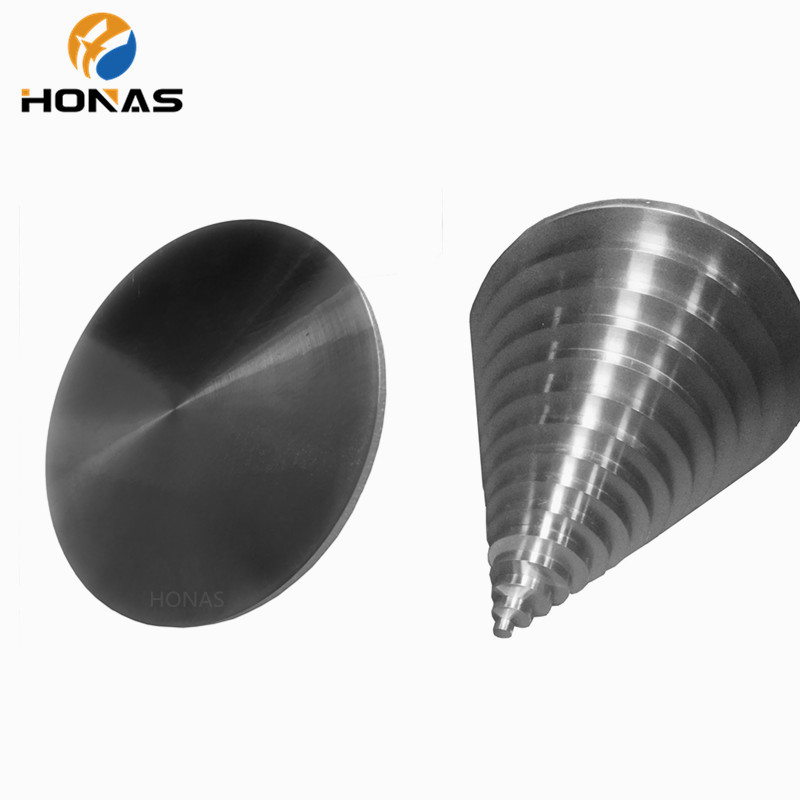

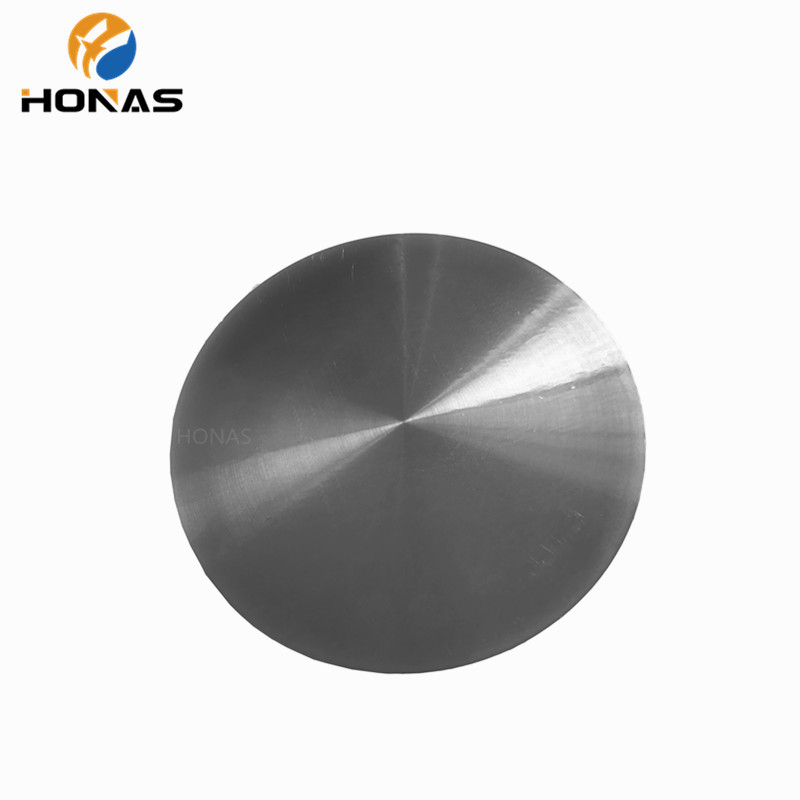

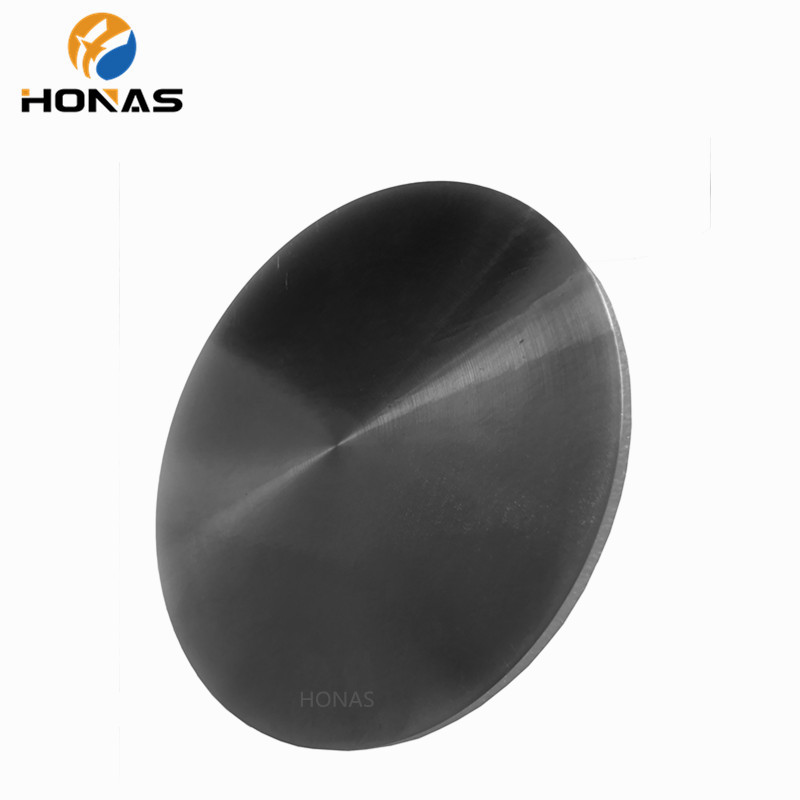

Product description:IEC60335--2-9 fig104 6mm thickness steel disk measuring the hotplate
INQUIRY EMAIL

Application :

19.103 Induction hotplates are supplied at rated voltage and operated with a steel disk placed on the centre of the cooking zone.The disk has a thickness of 6mm and the smallest diameter rounded up to the nearest centimetre ,which allows the appliance to operate.

19.104 Induction hotplates are supplied at rated voltage and operated under normal operation but with any control that limits the temperature during the test of Clause 11 short-circuited.

Note If the appliance incorporates more that one control, they are short circuited in turn.

The temperature rise of the oil shall not exceed 270k

item	diameter	thickness
1	2cm	6mm±0.03
2	3cm	6mm±0.03
3	4cm	6mm±0.03
4	5cm	6mm±0.03
5	6cm	6mm±0.03
6	7cm	6mm±0.03
7	8cm	6mm±0.03
8	9cm	6mm±0.03
9	10cm	6mm±0.03
10	11cm	6mm±0.03
11	12cm	6mm±0.03
12	13cm	6mm±0.03
13	14cm	6mm±0.03
14	15cm	6mm±0.03
15	16cm	6mm±0.03
