Measuring gauge

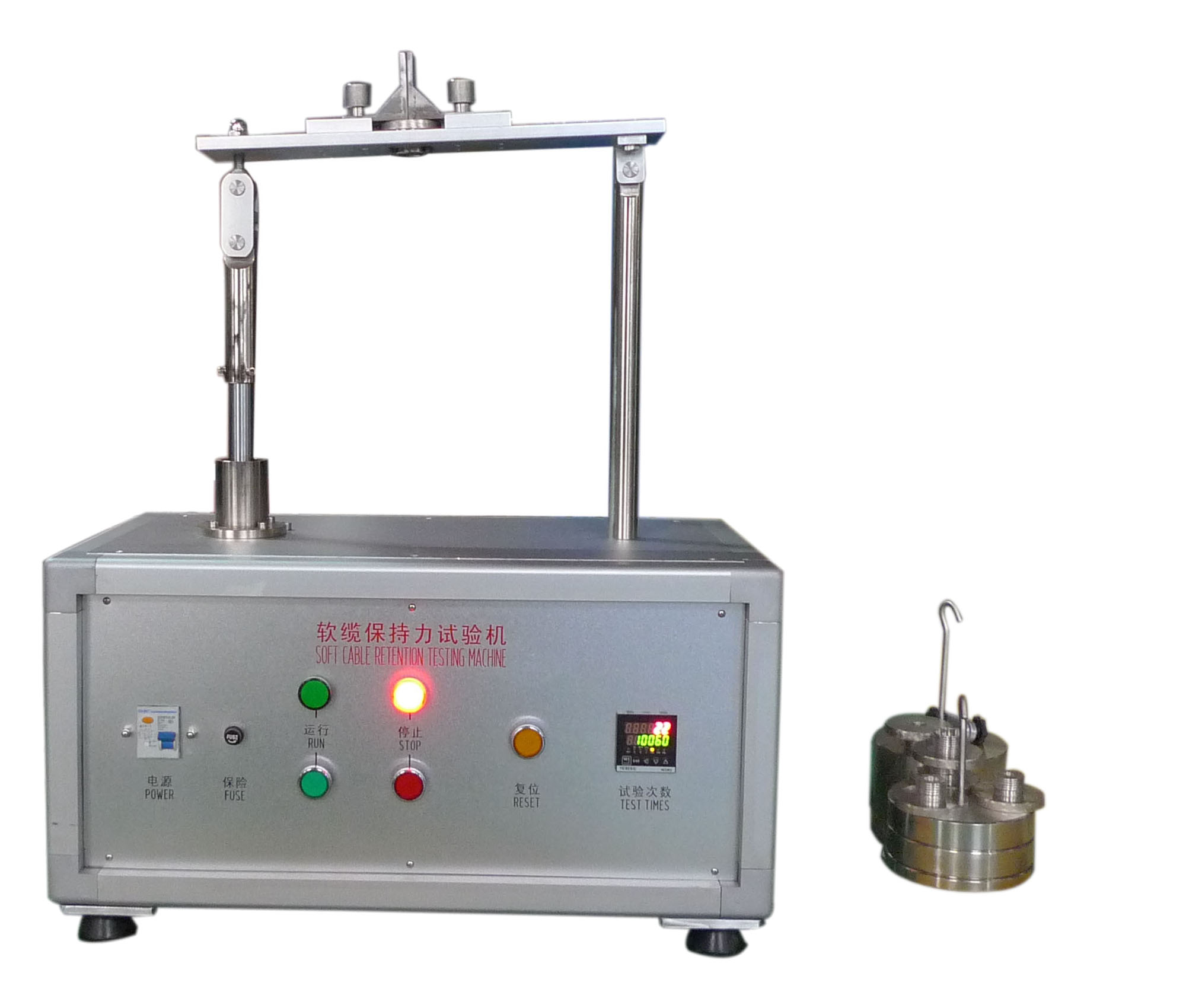

iec60884 fig20 Flexible cord retention force test apparatus
- Power supply: AC220V / 50HZ
- load weight: 10N, 60N each, 20N two
- the force frequency: 1 time / S
- the number of force: 0-9999 times, adjustable, the default 100 times
- Product description:iec60884 fig20 Flexible cord retention force test apparatus cord retention test apparatus , test apparatus , flexible cord apparatus

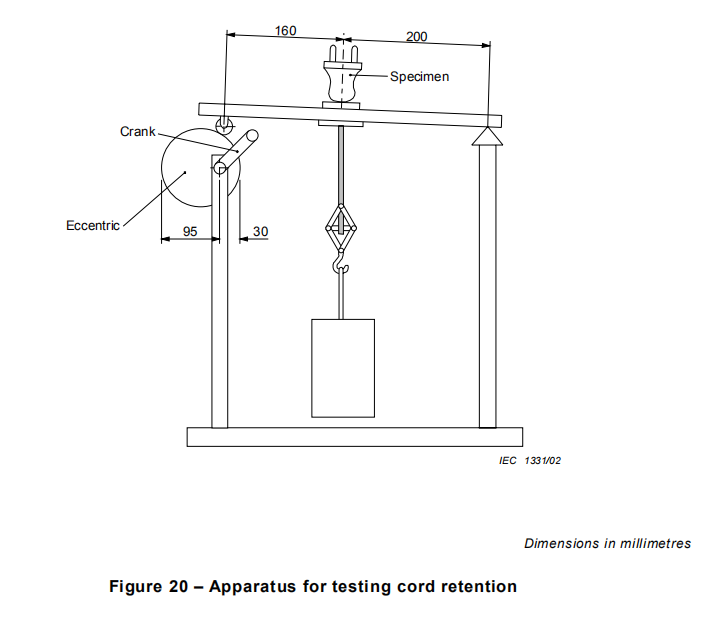

Meet the standard: GB2099.1-2008 Article 23.2 and Figure 20, IEC60884 Figure 20, VDE0620
Uses: It is used to check whether the plug wire and the electrical accessory are firmly fixed.
Sample range: detachable plug, detachable mobile socket, non-removable plug and non-removable mobile socket
Structure and function: According to the standard, check the tightness of the plug wire and electrical accessories
technical parameter:
1. Power supply: AC220V / 50HZ;
2, load weight: 10N, 60N each, 20N two;
3, the force frequency: 1 time / S;
4, the number of force: 0-9999 times, adjustable, the default 100 times;
Soft cable corresponding to the force table:
|
Flexible cord rated current（A） |
Flexible cord rated voltage（V） |
Tensile force |
|
2.5 |
— |
50 |
|
2.5～16 |
<250 |
60 |
|
2.5～16 |
>250 |
80 |
|
>16 |
— |
100 |
