Measuring gauge

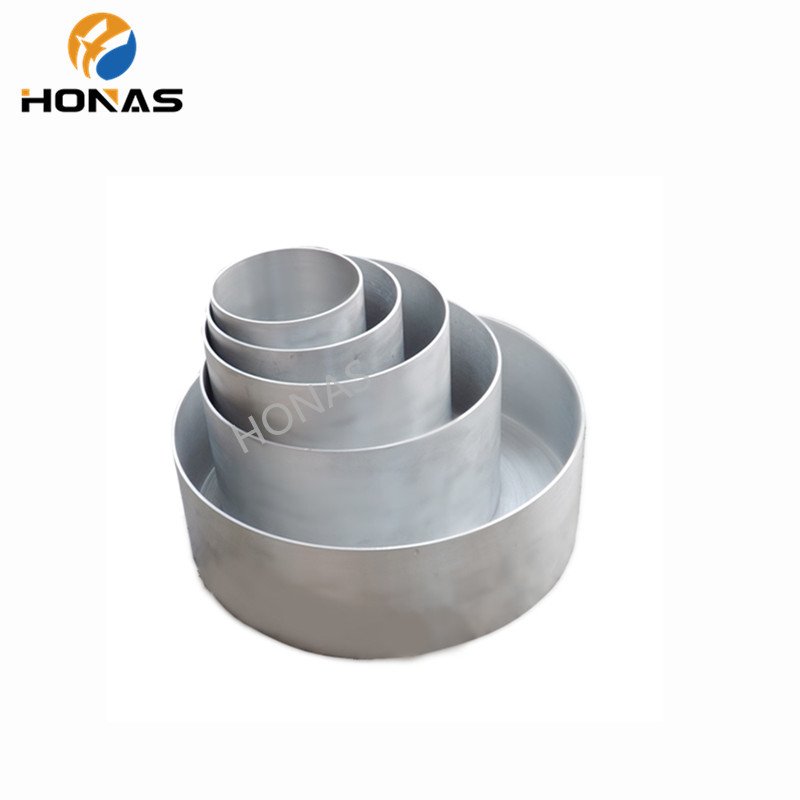

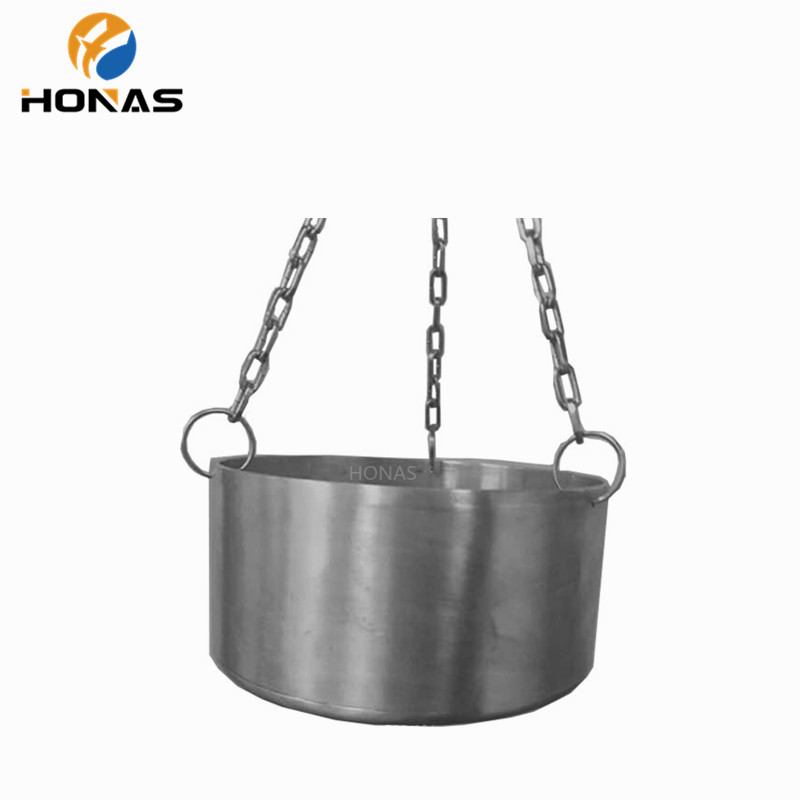

iec60335 fig 104 fig103 electric range aluminum test vessel

iec60335 fig 104 fig103 electric range aluminum test vessel

1. size: 110, 145, 180, 220, 300mm each one
Product description:iec60335 fig 104 fig103 electric range aluminum test vessel
INQUIRY EMAIL

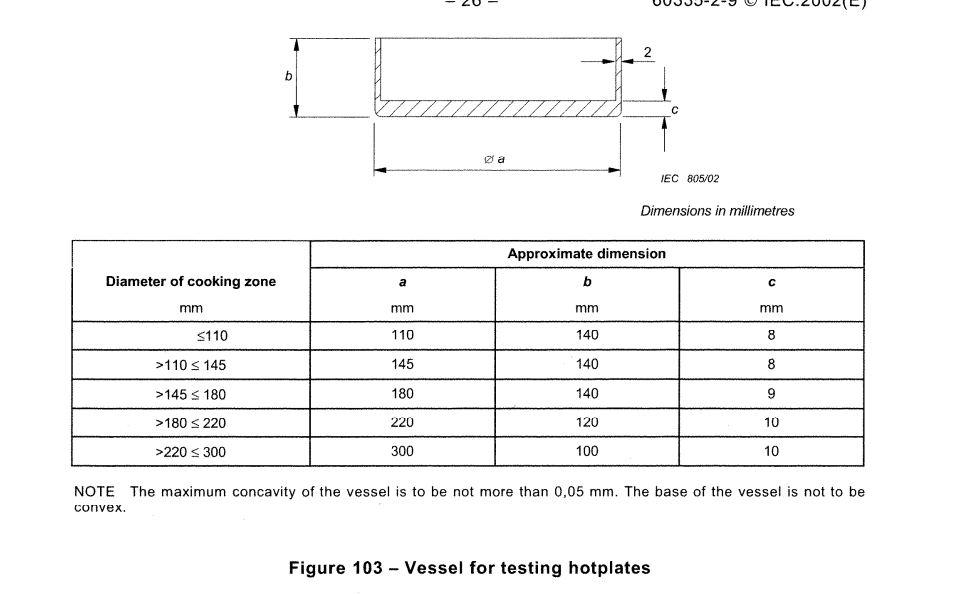

IEC60335-2-9 clause 3 figure 103

Parameter:

1. Pot and lid material industrial aluminum
2. Pot material thickness 2 mm;
3. The bottom of the pot body can not be outward convex, can not exceed 0.05mm;
4. Pot body and lid surface should be smooth;
5, size: 110, 145, 180, 220, 300mm each one

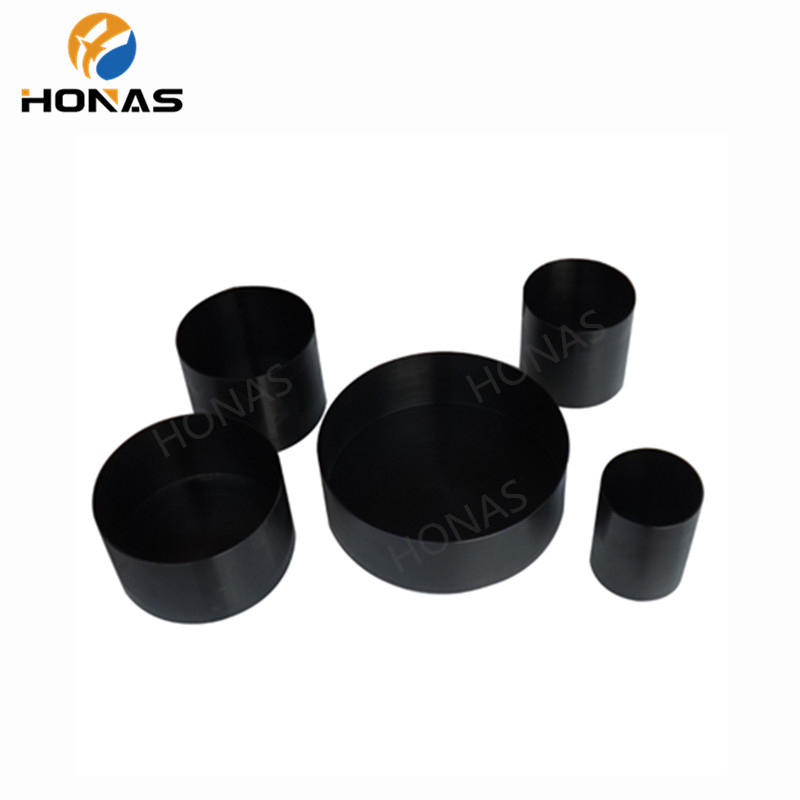

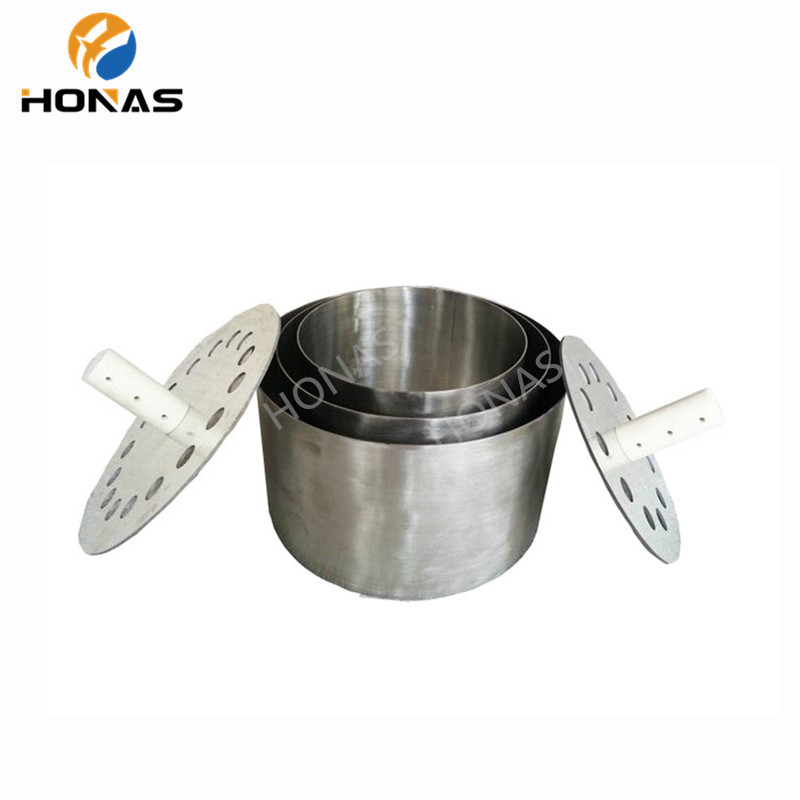

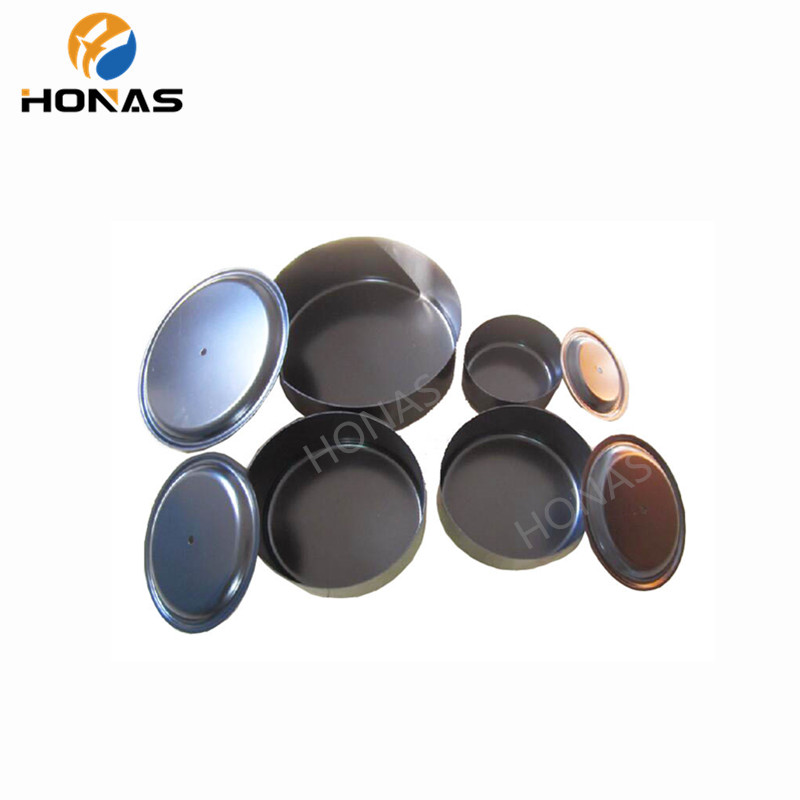

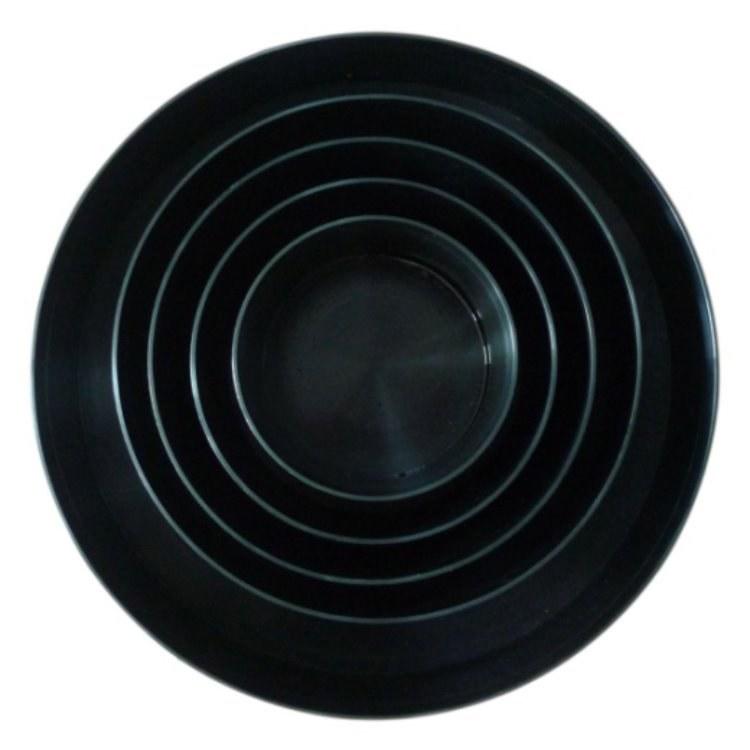

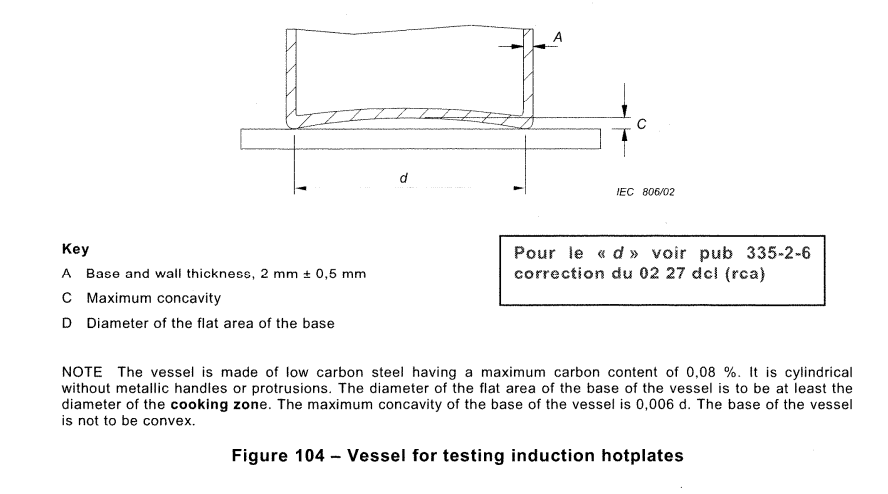

IEC60335-2-9 clause 3 figure 104

Parameter :

1. Pot and lid material is mainly Q235, carbon mass fraction <0.08%;
2. The thickness of the wall material is 2 mm;
3. The bottom of the pot body can not be outward convex, can not exceed 0.05mm;
4. Pot body and lid surface to be clean
5, size: 110, 145, 180, 220, 300mm each one
