  • IEC61032 fig9 short pin probe 13 for hazardous access test
IEC61032 fig9 short pin probe 13 for hazardous access test

IEC61032 fig9 short pin probe 13 for hazardous access test

  • The Probe Length :15mm
  • Dam-board Diameter:25mm
  • Dam-board Thickness:4mm
  • The Probe Diameter Head:3mm

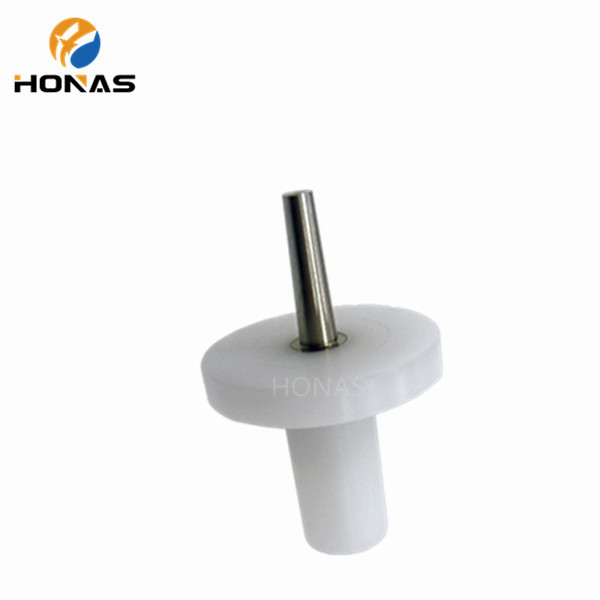

  • Product description:IEC61032 fig9 short pin probe 13 for hazardous access test
  • INQUIRY   EMAIL

Application:

The Short Test Pin (Figure 9 - Test probe 13) of IEC 61032 is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (IEC 60536).


Materials

Nylon+Stainless Steel

The Probe Diameter

Head:3mm

Tail : 4mm

The Probe Length

15mm

Dam-board Diameter

25mm

Dam-board Thickness

4mm

Standard

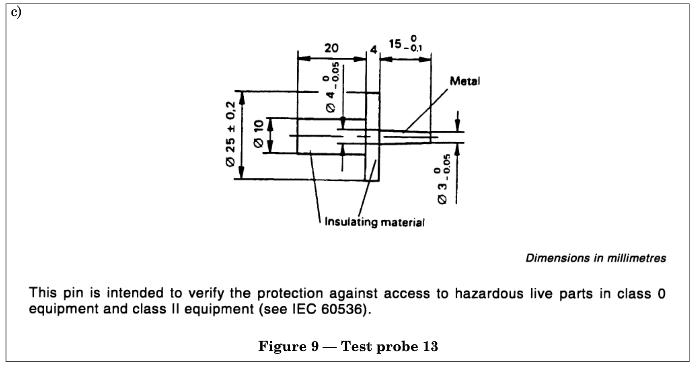

IEC 61032  Figure 9 - Test probe 13


Similar probe :

Product picture

Reference Standard

Specification

Long test pin probe

IEC61032

The probe Diameter:4mm

The probe Length:50mm

Dam-board Diameter:25mm

Dam-board Thickness:4mm

Short test pin probe

IEC60065  IEC60335-1  IEC61032

The probe Diameter:Head 3mm Tail 4mm

The probe Length:15mm

Dam-board Diameter:25mm

Dam-board Thickness:4mm
