test probe

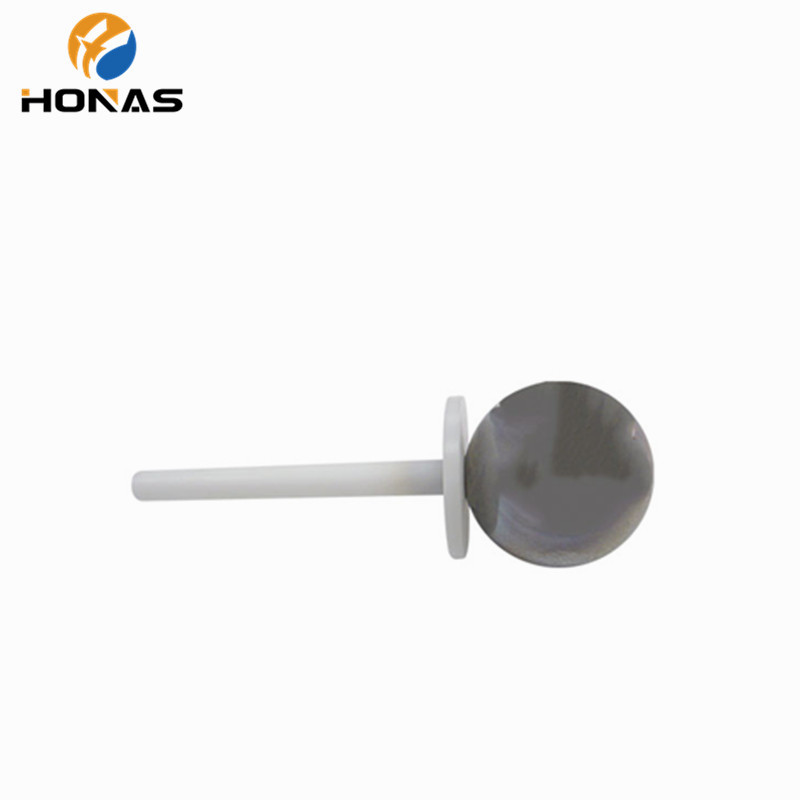

Iec61032 standard IP1X 50mm Test Sphere Probe A

Sphere Diameter :50mm
Baffle Plate Diameter :45mm
Baffle Plate Thickness:4mm
Standard:IEC60529，IEC61032，IEC60335，IEC60950 IEC60065，IEC61029
Product description:Iec61032 standard IP1X 50mm Test Sphere Probe A
INQUIRY EMAIL

Application:

Test probe HNS-A with 50mm diameter sphere for IP1X, which is necessary appliance for household and electrical appliance of against electric shock protection test.

Standard:

According to IEC60529: Degrees of protection provided by enclosures(IP Code)

The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.

Level sized	Effective against	Description
1	>50 mm	Any large surface of the body, such as the back of a hand, but no protection against deliberate contact with a body part

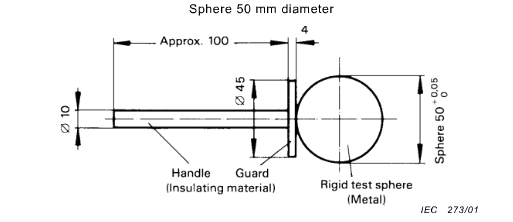

Technical Parameter:

Sphere Diameter	50mm
Baffle Plate Diameter	45mm
Baffle Plate Thickness	4mm
Handle Diameter	10mm
Handle Length	100mm
Standard	IEC60529，IEC61032，IEC60335，IEC60950 IEC60065，IEC61029
