test probe

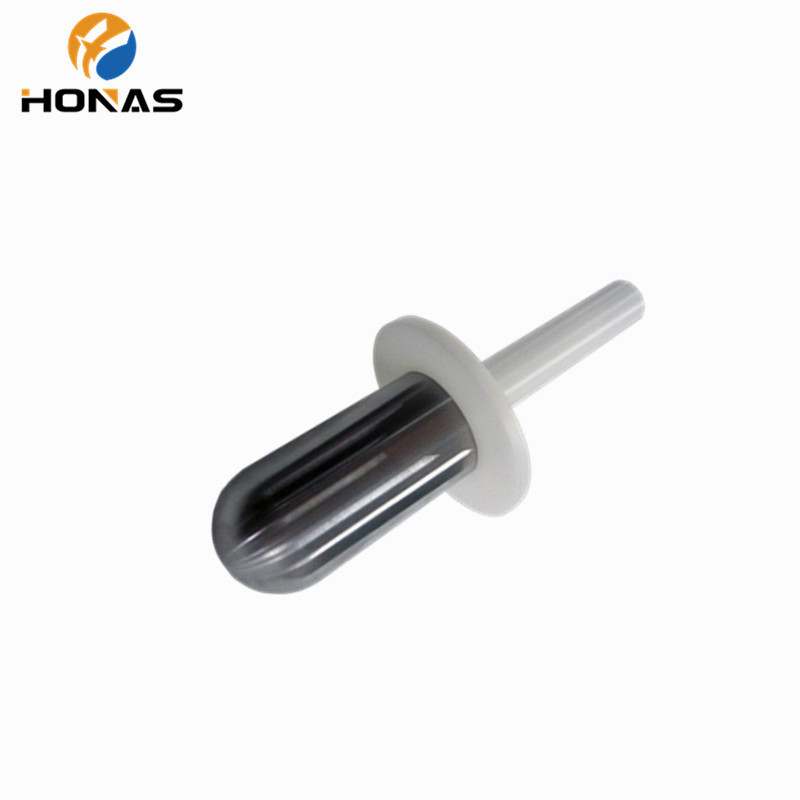

iec60335-2-14 20.103 5N cylindrical rod probe to the switch test

Probe Diameter: 40mm/75mm
Probe Length:50mm
Baffle Plate Diameter :100mm
Baffle Plate Thickness:10mm
Product description:iec60335 5N cylindrical rod probe to the switch test
INQUIRY EMAIL

Application：

The test probe meets the requirements of IEC 60335.2.6 & GB4706.22 and is mainly used to judge the surface that is inaccessible to the probe to determine whether the surface should be tested for temperature rise.

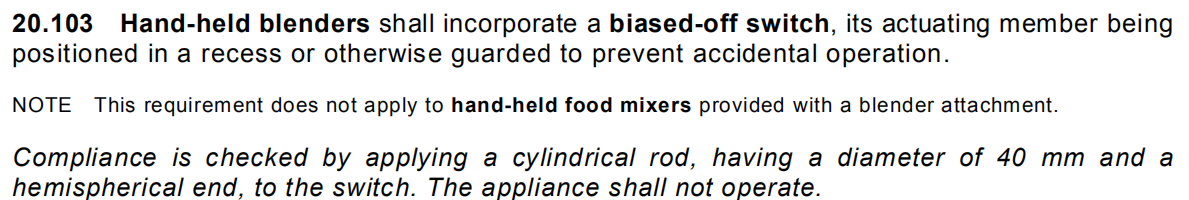

Standard：IEC60335-2-14 clause 20.103

Test method :

The test method is to use a cylindrical probe with a diameter of 40mm at the end to touch the switch, and the hand-held agitator and other appliances should not be operated.

Item	Parameter
Probe Diameter:	40mm/75mm
Probe Length	50mm
Baffle Plate Diameter	100mm
Baffle Plate Thickness	10mm
Materials	Stainless steel and Nylon
Pressure	5N (510g)
Standard	IEC60335-2-14 clause 20.103
