IP Waterproof test machine

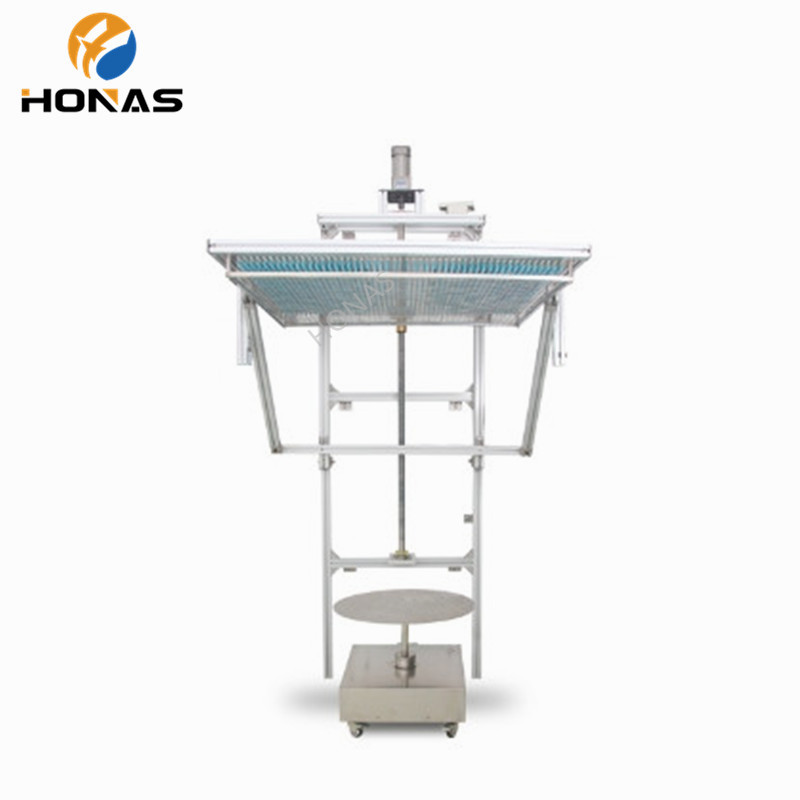

IEC60529 IP12C wall mounted rain drop test machine

IEC60529 IP12C wall mounted rain drop test machine

Distance between holes:20*20 mm
Rainfall :1-5mm/Min(±0.5mm/min)
Drop box height:1000*1800 adjustable
Turntable speed:1 r/min
Product description:IEC60529 IP12C wall mounted rain drop test machine
INQUIRY EMAIL

Application:

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Technical parameter:
No.	Model	HNS-IP12C-800	HNS-IP12C-1000	HNS-IP12C-1600

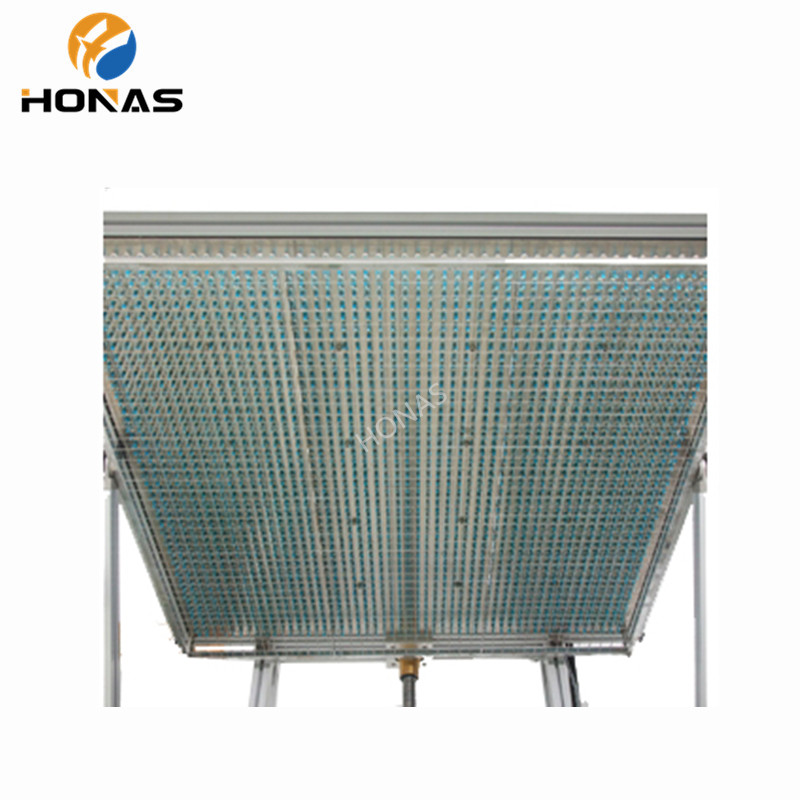

1	Drip area (mm)	800*800	1000*1000mm	1600*1600
2	Outer size (mm)	L1050×D1150×H2600	L1250D1350H2600	L2160D1800H2700

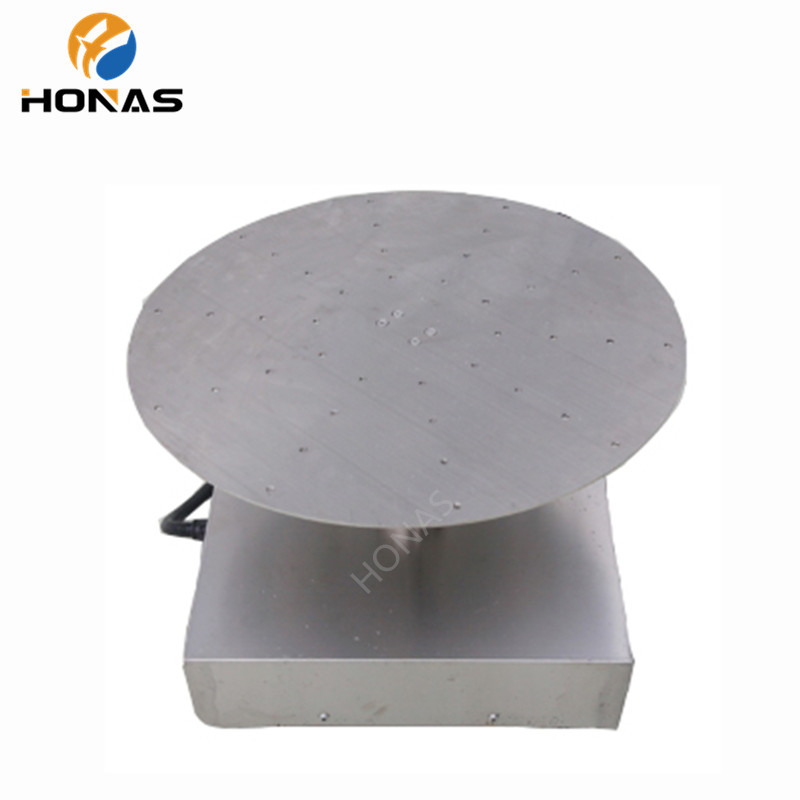

3	Turntable diameter	500 mm	600 mm

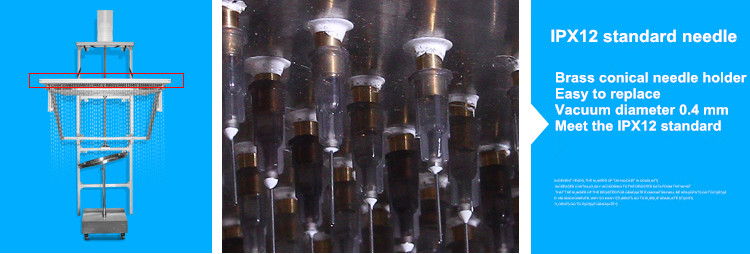

4	Dripping aperture	0.4mm
5	Distance between holes	20*20 mm
6	Rainfall	1-5mm/Min(±0.5mm/min)
7	Flow adjustment mode	Manual
8	Drop box height	1000*1800 adjustable
9	Turntable bearing	50KG
10	Turntable speed	1 r/min
11	Turntable tilt	0° or 15°
12	Turntable lifting range	Fixed type
13	Testing time	0-999 min
14	Equipment type	Wall mounted
15	Equipment materials	Stainless steel SUS304

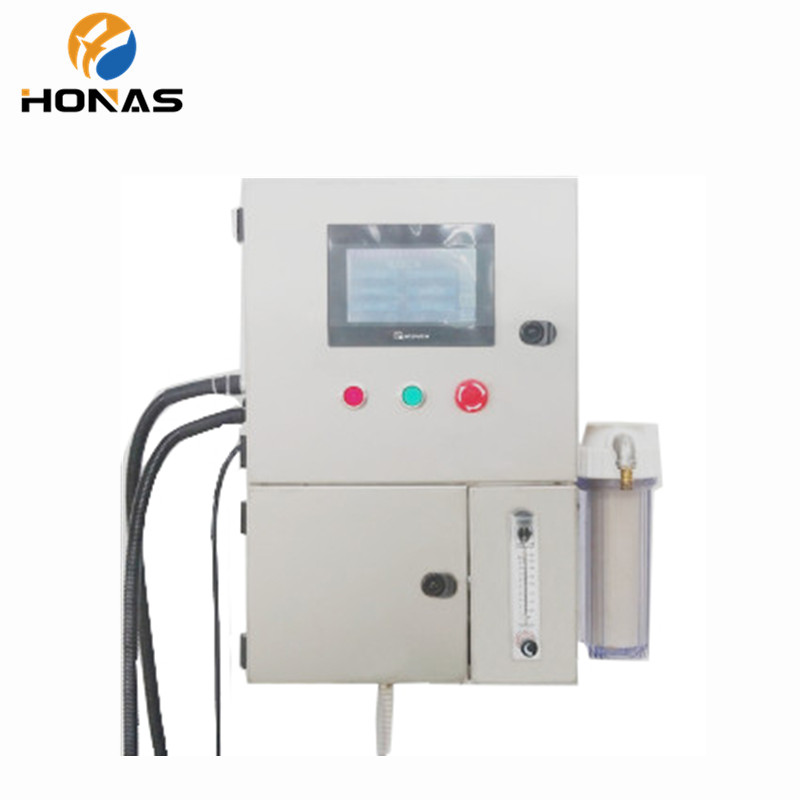

16	Controller	7inch touch screen
17	protector	Leakage, water short-circuit
18	Power supply	220V
19	Power	1KW
20	Standard	IEC60529:1989+A1:1999、GB4208、GB7000.（IPX1、IPX2)
