IP Waterproof test machine

Iec60529 IPX5 IPX6 handle water jet nozzle for waterproof measuring

Iec60529 IPX5 IPX6 handle water jet nozzle for waterproof measuring

Standard:iec60529

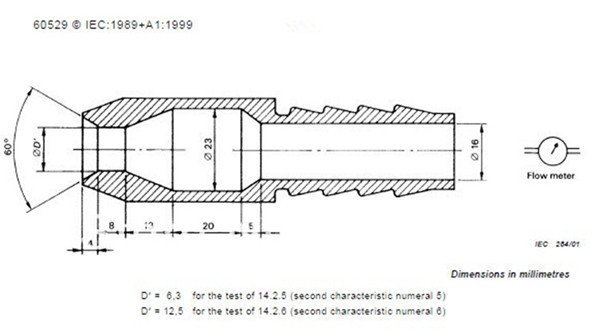

Nozzle diameter:6.3mm/12.5mm
Water pipe outer diameter:32mm
Materials :SUS304 stainless steel
Product description:Iec60529 IPX5 IPX6 handle water jet nozzle for waterproof measuring
INQUIRY EMAIL

Application ：

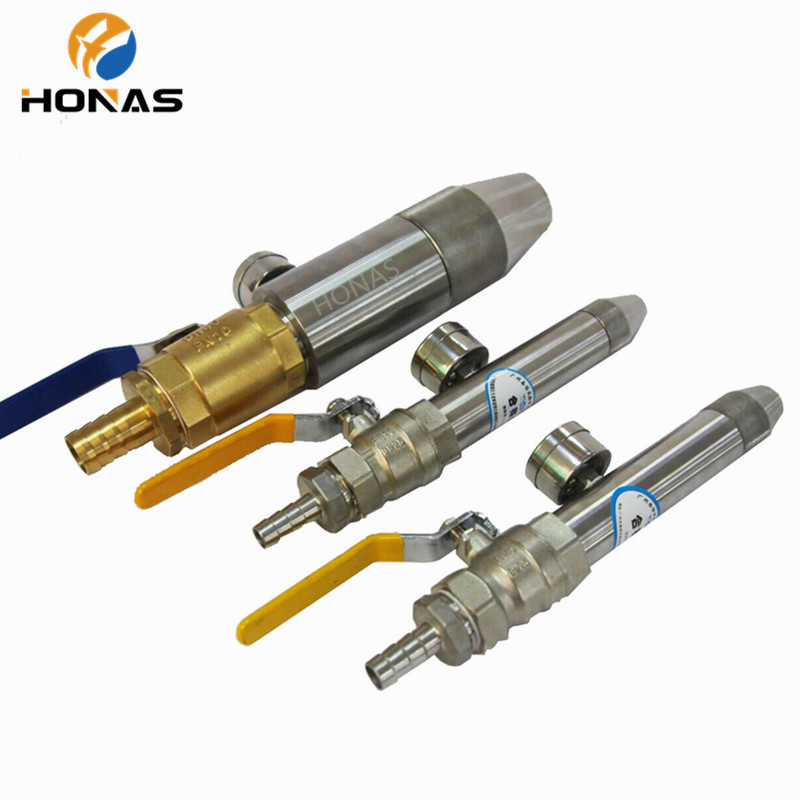

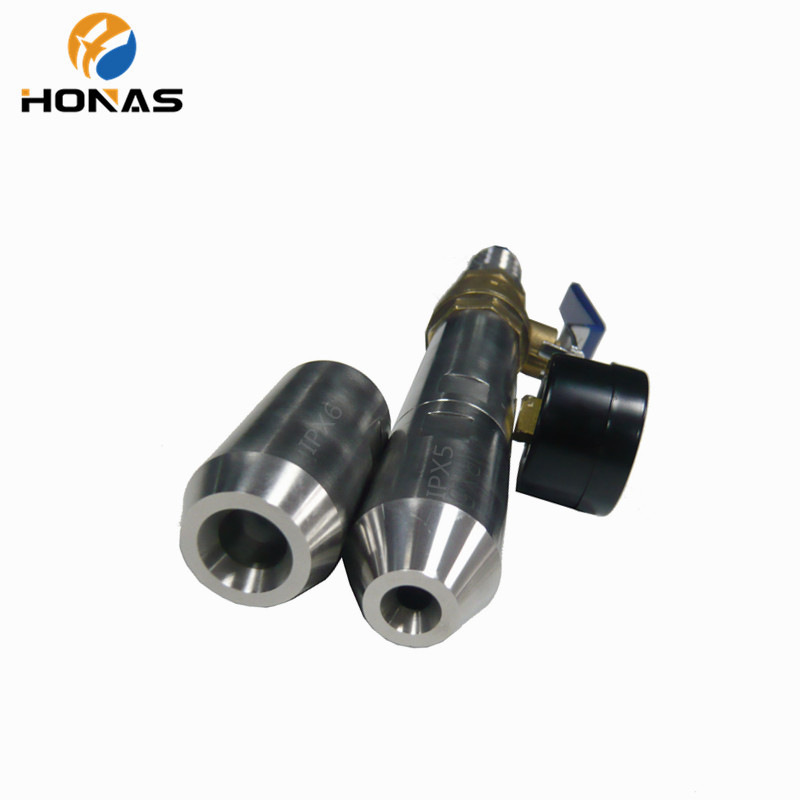

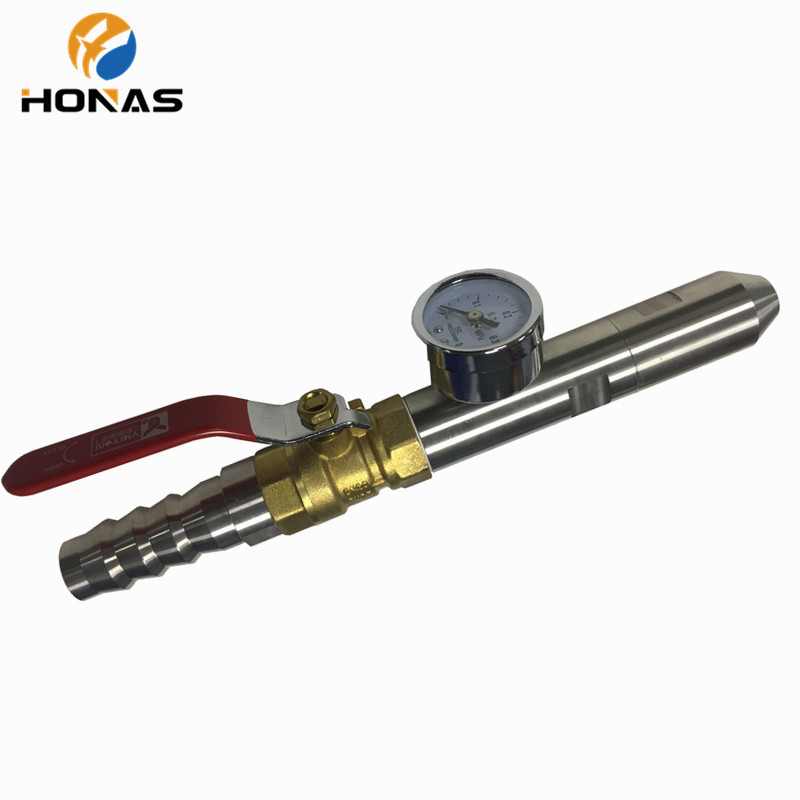

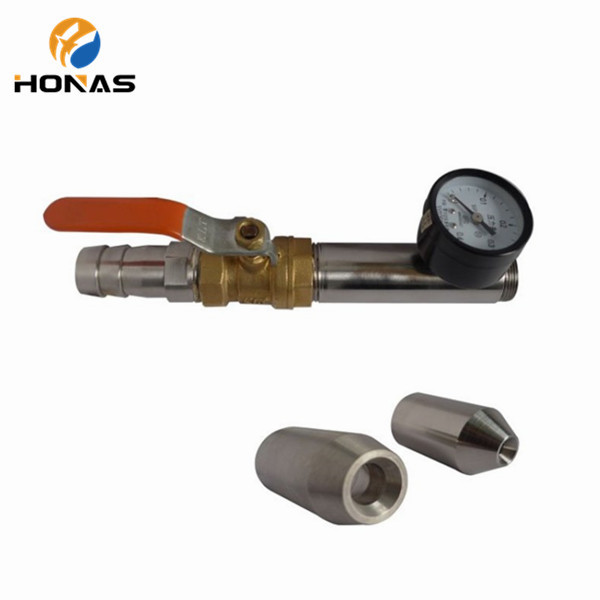

The IEC60035-5 IEC60529 Jet Nozzle IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

The IPX5/6 jet nozzle is mainly used for rain test machine (waterproof grade IPX/3/4), which can be easily replaced, and is suitable for box type and split type.

Technical parameter:

Item	IPX5	IPX6
Nozzle diameter	6.3mm	12.5mm
Pressure Gauge	0~0.25MPa	0~0.25MPa
Water pipe outer diameter	32mm	32mm
Water pipe joint outer diameter	28mm	28mm
Water flow	12.5±0.625L/min, adjustable	100±5L/min, adjustable
Distance between nozzle and the enclosure	2.5~3m	2.5~3m
Test time	More than 1min/m2 and 3mins	More than 1min/m2 and 3mins
Materials	SUS304 stainless steel
Conforms to	IEC60529
