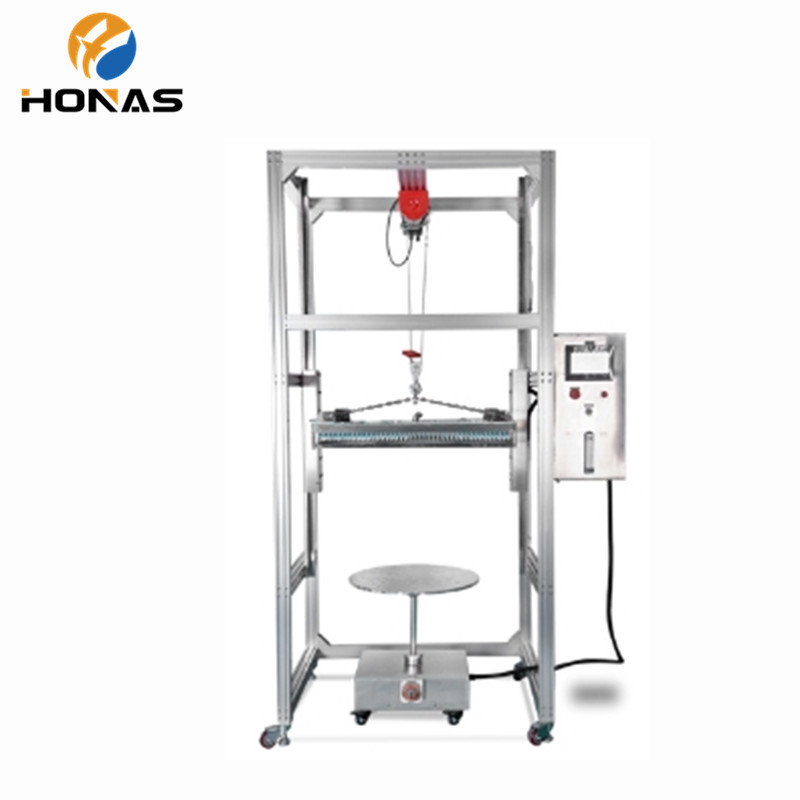

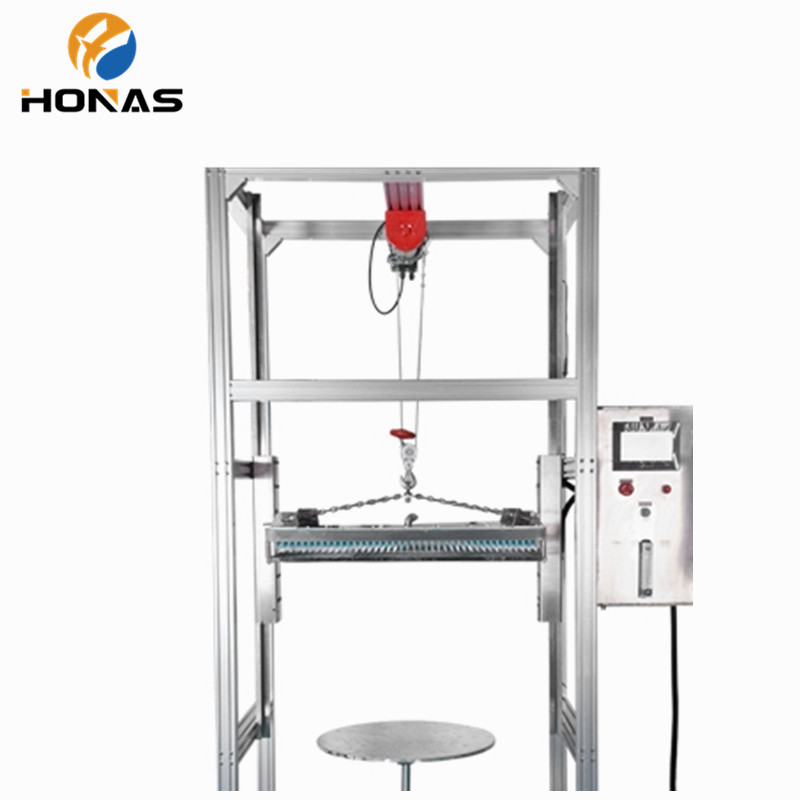

IPX12 column type vertical rain drip test device

Application:

The main function of this IPX12B vertical rain drip test device is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Feature:

1,Rainfall device can automatically lift, the nozzle is located in the highest point of 200mm when the test object automatically stops (through the photoelectric switch detection).

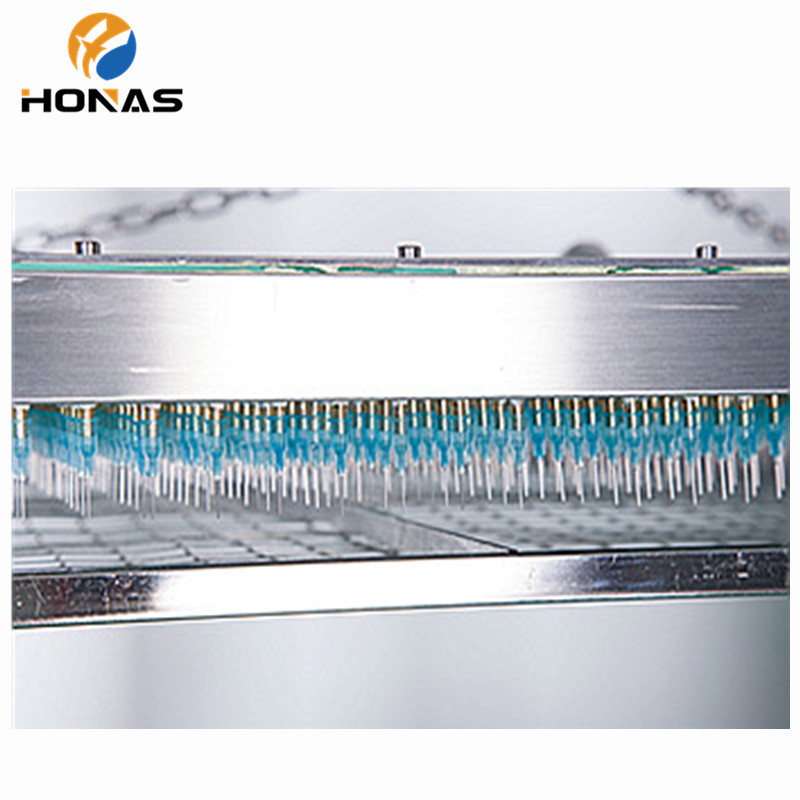

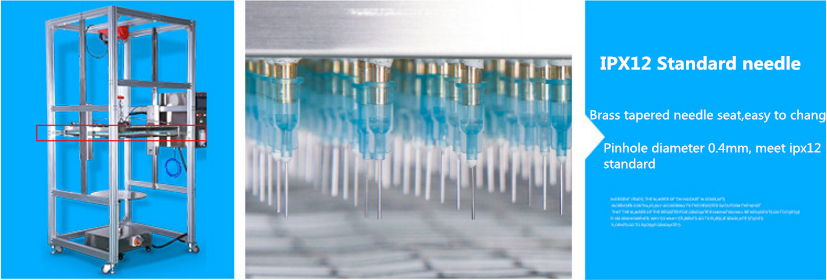

2,test needle: diameter 0.4mm, in full compliance with the test standard; removable, easy to replace.

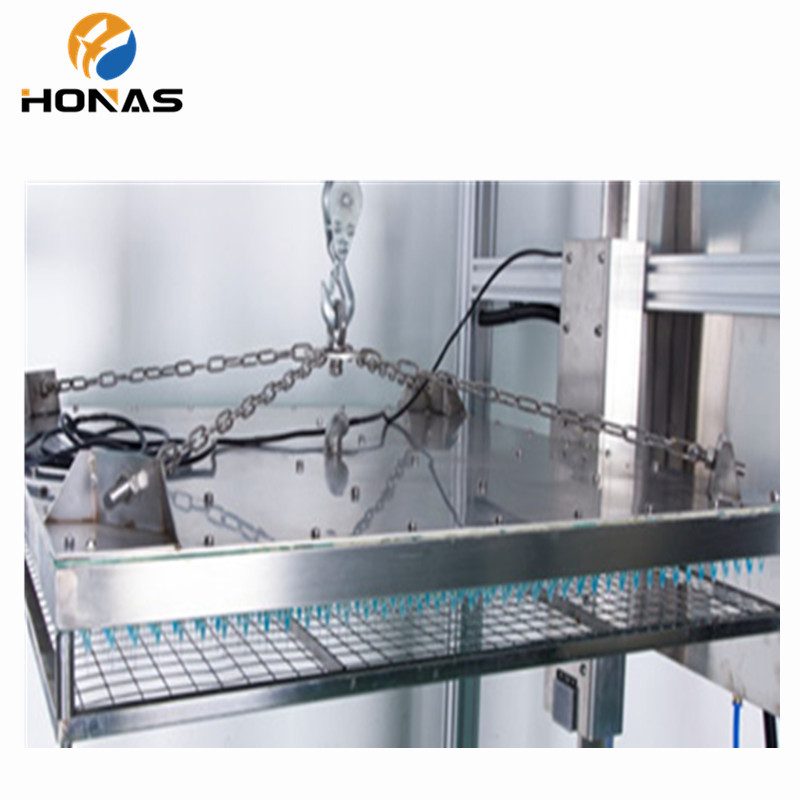

3,Nozzle contact Bit Brass conical design, no need for tools to replace the needle; needle below the installation of stainless steel mesh shield, effectively prevent the test operator accidentally hit the head of the test needle was injured.

4,Column-type structure, four columns can be fixed on the ground, the equipment runs smoothly, convenient for overall package transportation, saving on-site installation time.

5,drops of rain flow: flowmeter comes with regulating valve, manual precise adjustment.
