IP Waterproof test machine

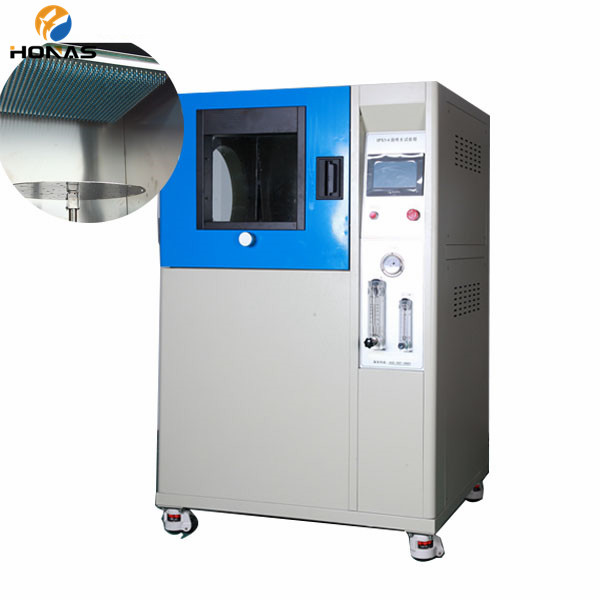

IEC60529 IPX12 rain drop test chamber

Dripping aperture:0.4mm
Rainfall:1-5 mm/min(±0.5mm/min)
Turntable tilt:0° or 15° (horizontal direction)
Voltage: 220V±5%
Product description:IEC60529 IPX12 rain drop test chamber
INQUIRY EMAIL

Application:

IPX12 rain drop Test Chamber is used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. Under the rain/drip environment,test the physical and other related properties of the product.

The main function of this IPX12 rain drop test equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Technical parameter:

Model	HNS-IP12A-600	HNS-IP12A-1200
Drip area	600*600 mm	1200*1200mm
Inner size	L800D800H1000mm	L1400D1400H1400mm

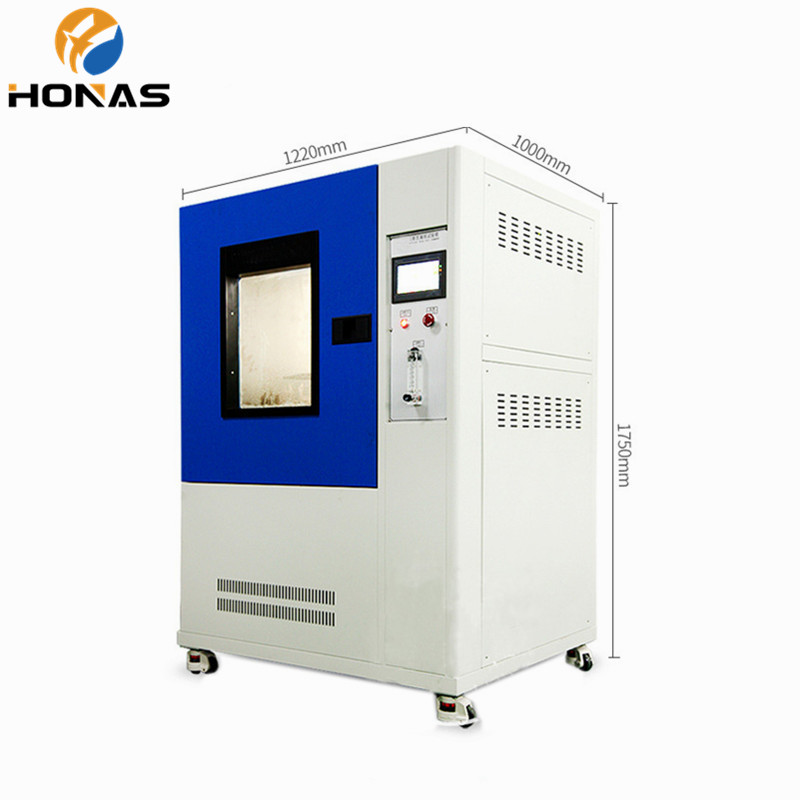

Outer size	About 125010001750mm	L2050D1800H2150mm

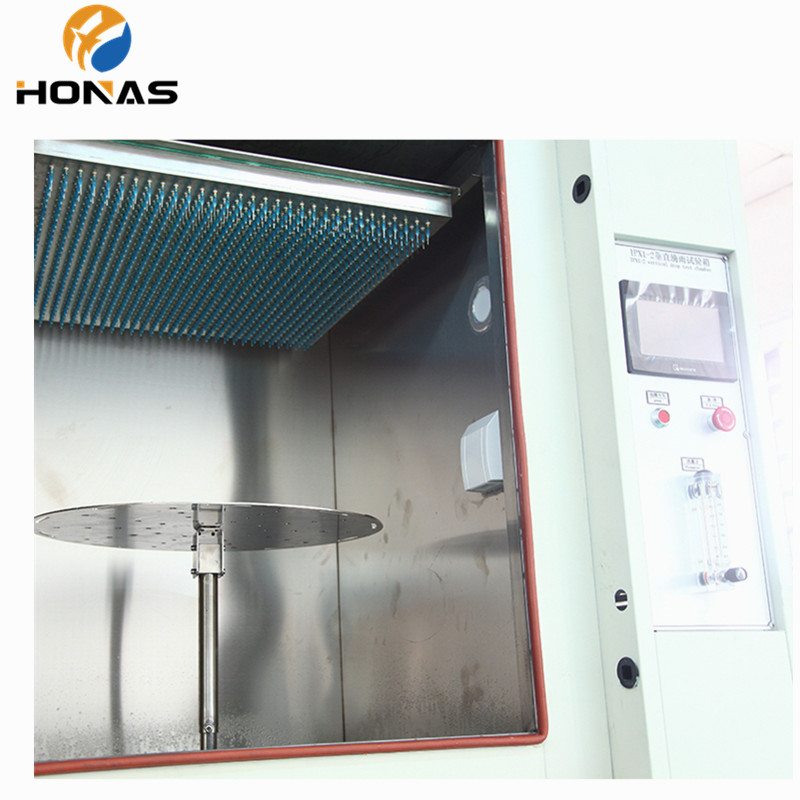

Turntable diameter	600 mm	800mm
Turntable bearing	50KG	50kg
Turntable lifting range	350-700 mm	650-1100mm

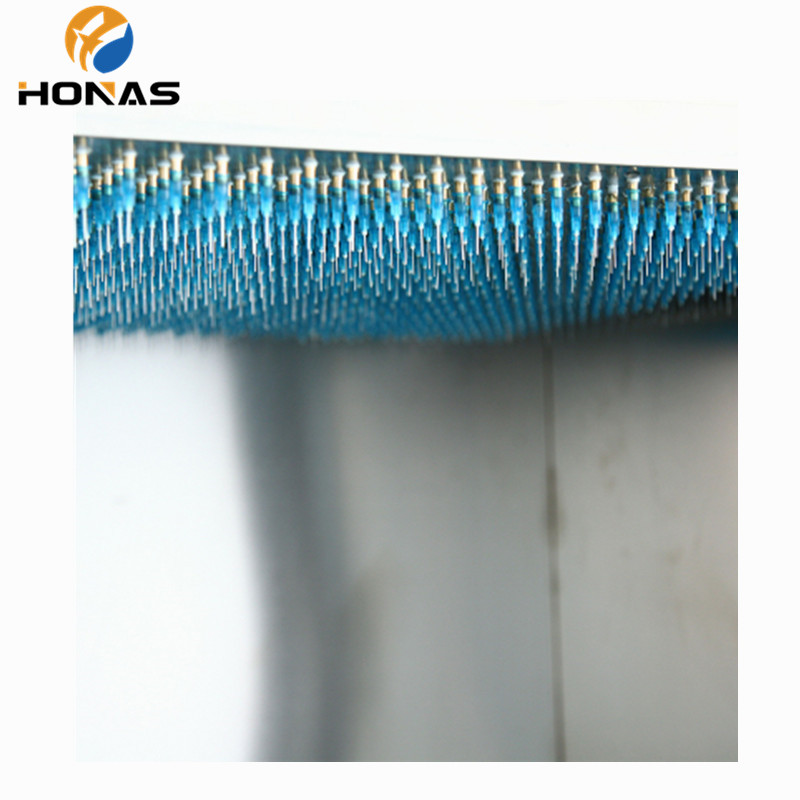

Dripping aperture	0.4mm
Distance between holes	20*20 mm
Rainfall	1-5 mm/min(±0.5mm/min)
Flow adjustment mode	Manual
Drop box height	stationary
Turntable speed	1 r/min(IPX1)
Turntable tilt	0° or 15° (horizontal direction)
Testing times	0-999 min
Protector	Leakage, water short-circuit

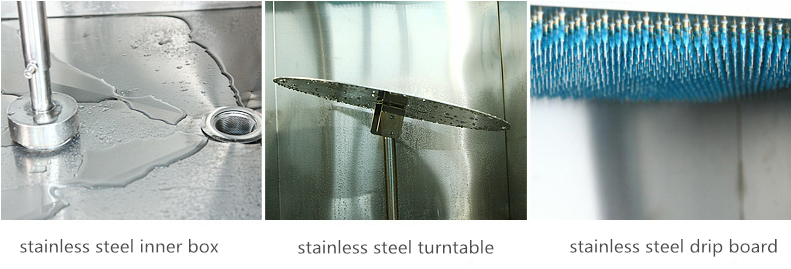

Materials	SUS304 stainless steel
Controller	7inch touch screen
Environment temperature	5℃～35℃ Air pressure: 86kPa ~ 106kPa
Voltage（V）	220V
Power（KW）	1.0KW
Standard	IEC60529:1989+A1:1999、GB4208、GB7000.（IPX1、IPX2)
