IP Waterproof test machine

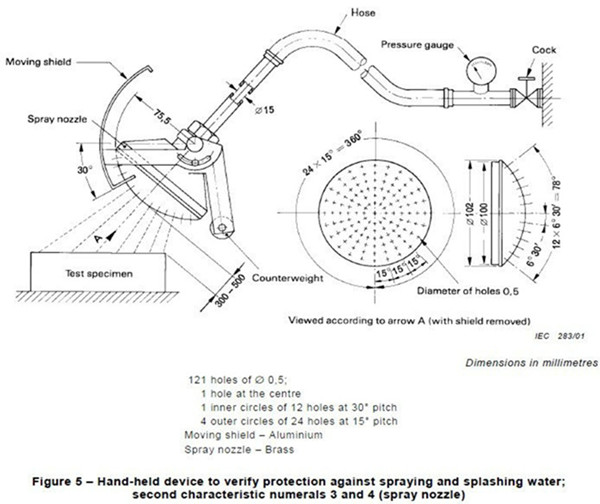

IEC60529 fig5 IPX34 water splash test nozzle for waterproof testing

IEC60529 fig5 IPX34 water splash test nozzle for waterproof testing

Standard:iec60529 fig5
Water flow:10L/min±5%

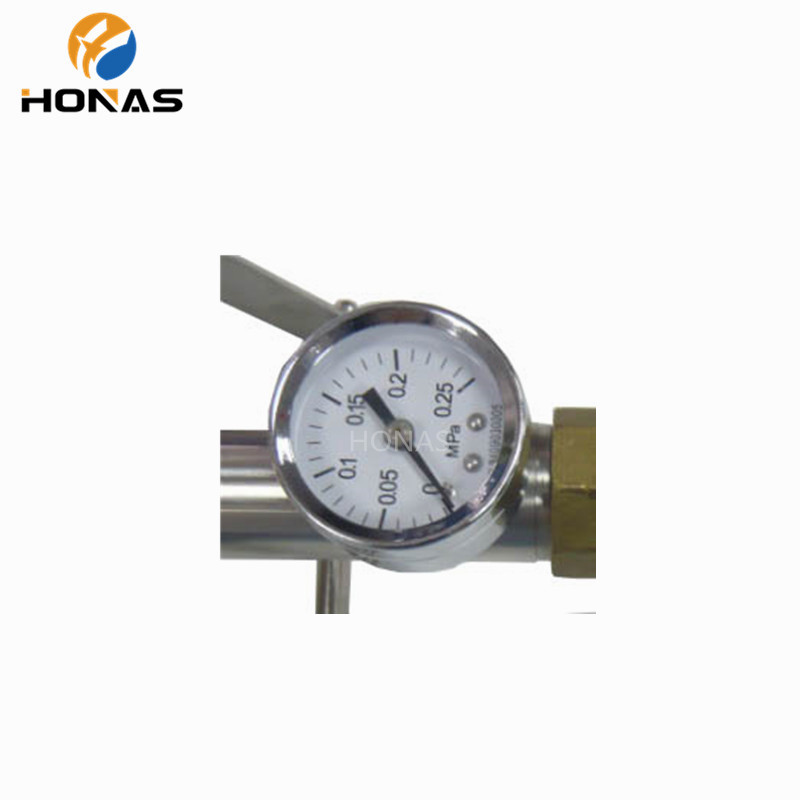

Pressure gauge:0~0.25MPa
Materials :Sus304 Stainless steel

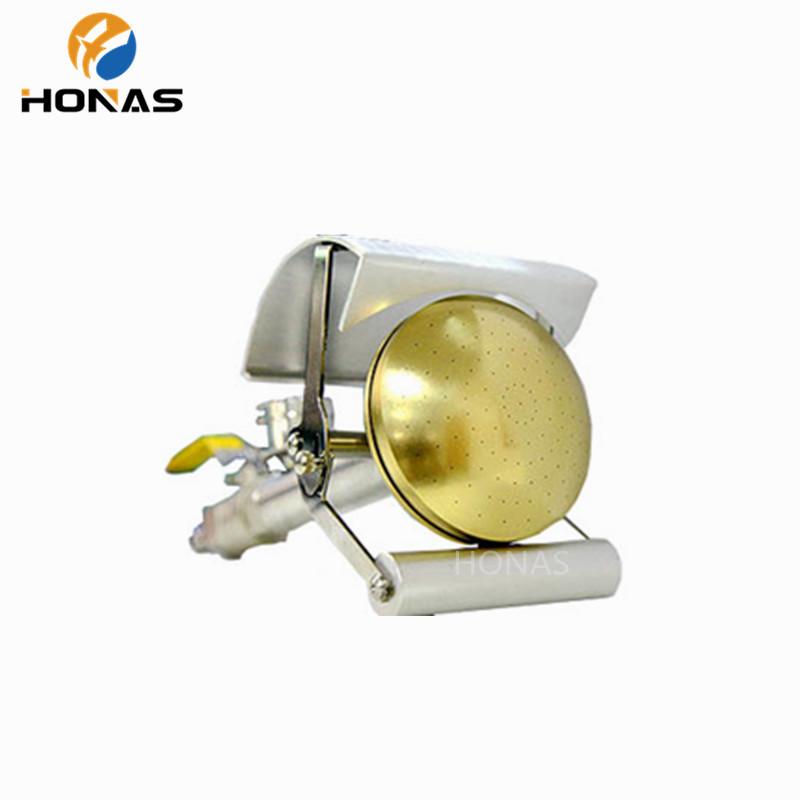

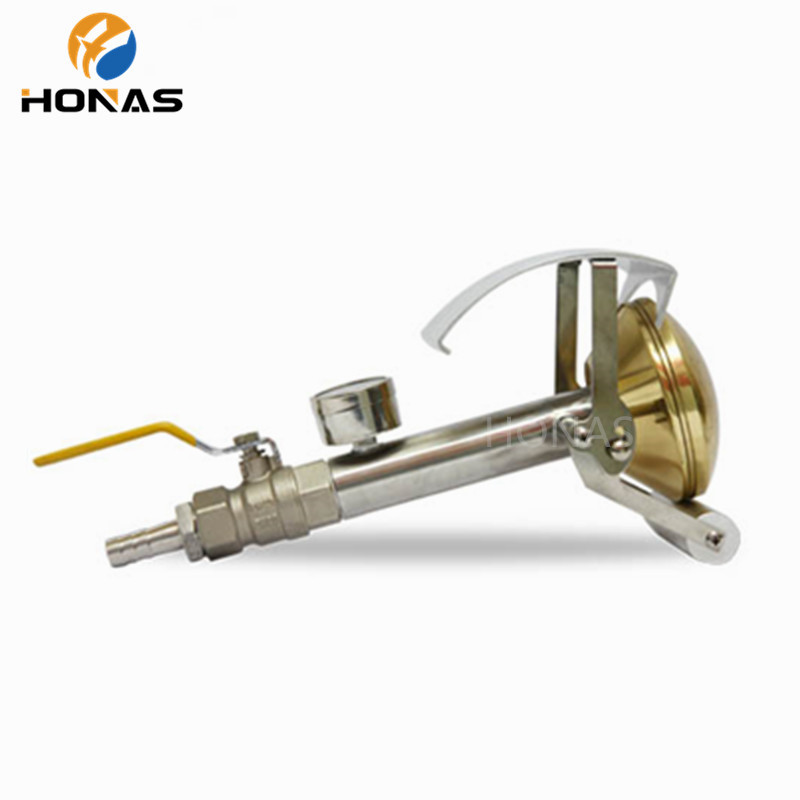

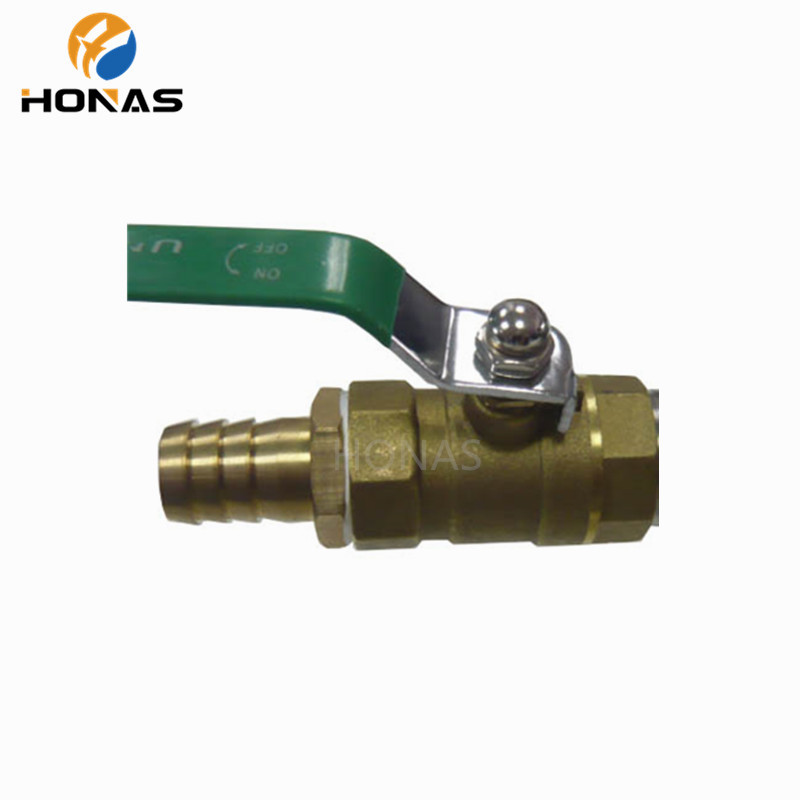

Product description:IEC60529 fig5 IPX34 water splash test nozzle for waterproof testing
INQUIRY EMAIL

Application:

The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rain conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.e.

The nozzle is made of stainless steel and brass and can be removed for cleaning.

It is made according to the relevant provisions of EN60598, IEC60529-2001, GB4208-2008, GB4942.1-2006 (IPX3, IPX4) and other standards, and is used to test the waterproof performance of appliances or appliances with rain-proof function. For some types of equipment, the casing cannot be completely wetted by the pendulum and rain, and it is supplemented by manual operation with anti-watering and splashing hand-held test equipment.

The main difference between the IPX3 and IPX4 handheld waterproof test is that the IPX4 needs to remove the balance baffle of the shower head, so that the shell is splashed in every possible direction, and the IPX3 needs to be covered with a baffle for testing.

Technical parameter:

Item	parameter
Water supply	Water flow rate is 50~150kpa clean water without inclusion.
Water flow	10L/min±5%,Flow meter is adjustable
Range of pressure gauge	0~0.4Mpa
Baffle	removable
Pressure gauge	0~0.25MPa
Inlet outer diameter	18mm
Stainless steel pipe outer diameter	28mm
Brass nozzle size	102mm
Number of water spray holes	121
Water jet aperture size	0.5mm
Opening position	2 circles, 12 holes/ring, 30° apart 4 holes, 24 holes/ring, 5° apart There are 96 holes in the external circle of holes of which the included angle is 15°.
spherical diameter	S 75.5mm
Materials	Sus304 Stainless steel
Site requirements	Dedicated IP waterproof test room The ground should be flat with illumination with good function of inflow and drainage.
Outer size of equipment	Approx. length 380* width 130* height 150mm
