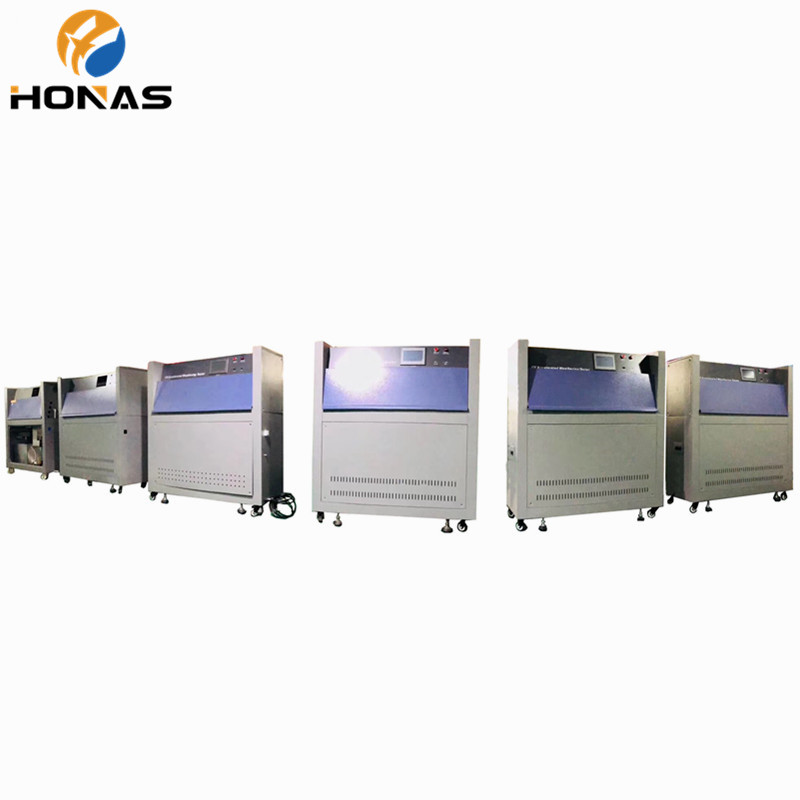

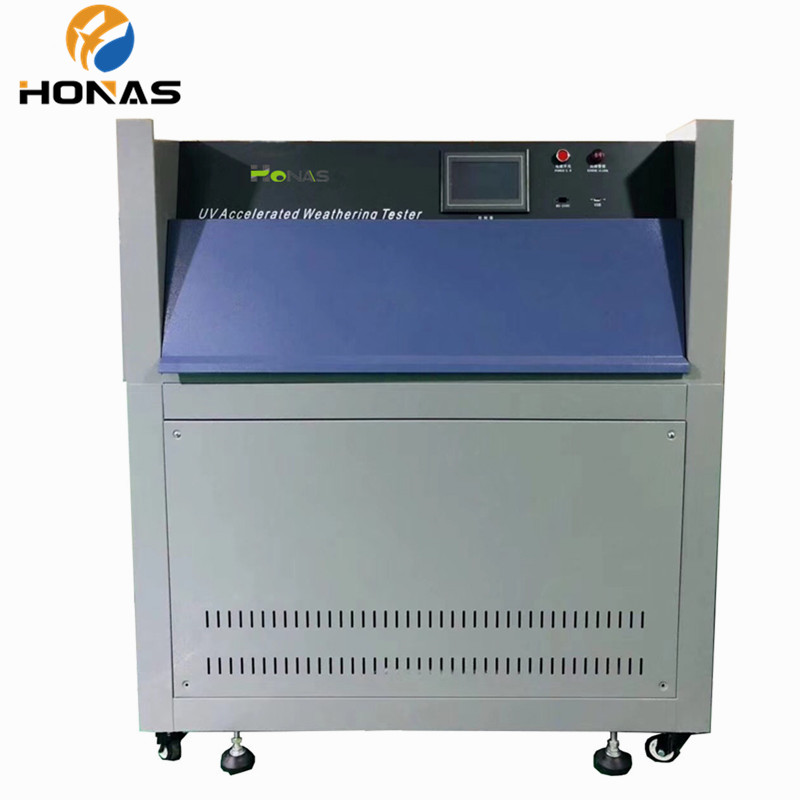

UV weathering test chamber

External size 147*63*145cm
Weight 160kg
UV temperature +40℃~85℃ +40℃~95℃ +40℃~85℃
Power 1800W max 1600W max 2000W max
Product description:UV weathering test chamber
INQUIRY EMAIL

Application :

Sunshine and moisture damage the materials, causing tens of thousands of economic losses every year. The UV weatherproof test chamber can reproduce the damage caused by sunlight and dew.The test chamber is tested by exposing the material to be tested to a controlled cycle of sunlight and moisture while increasing the temperature. The test chamber uses ultraviolet fluorescent lamps to simulate sunlight and simulates the effects of moisture by condensation.

It is suitable for testing various materials and testing the aging degree of related products and materials under the change of climatic conditions such as sunlight, temperature, humidity and condensation.

Technical parameter:

Model	HNS-UVA-1	HNS-UVA-2	HNS-UVA-3
Ultraviolet exposure	√	√	√
Condensation		√	√
Irradiance display		√	√
Irradiance adjustment	√	√	√
Water spray		√	√
Curve recorder	Purchase
UV temperature	+40℃~85℃	+40℃~95℃	+40℃~85℃
Condensation temperature		+40℃~+60℃	+40℃~85℃
External size	14763145cm
Weight	160kg
Test capability	48pcs sample(75*150mm)
Power supply	230V/50hz
Power	1800W max	1600W max	2000W max
Water supply and consumption		Condensation:Tap water or distilled water about 8L/day	Condensation:Tap water or distilled water about 8L/day Spray:Distilled or deionized water about 7L/MIN
Lamp usage	Depending on the irradiation time

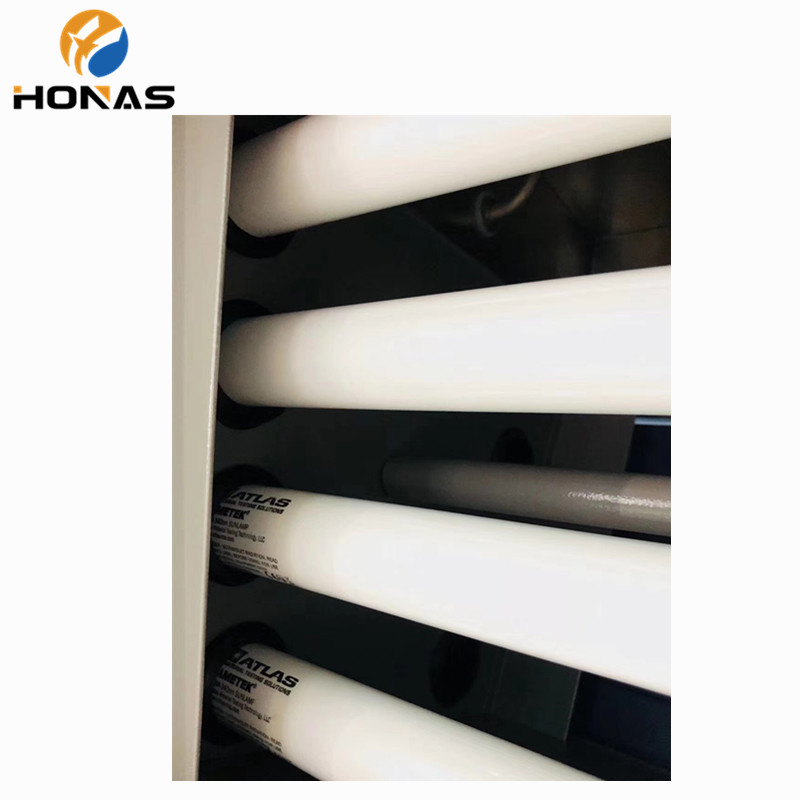

Uv lamp can be choose	USA Q-lab original UVB313L、UVA340 optional 4pcs		USA Q-lab original UVB313L、UVA340 optional 8pcs
Remarks	For the choice of lamp,we offer UVB313L、UVA340 lamp,In principle, the aging acceleration effect of UVB313 is faster and more obvious than UVA340. However, the UVB340 is better than the UVB313 in terms of the reproducibility of the corresponding weathering test. This depends on the customer's aggressiveness and harshness in the experimental test time.
