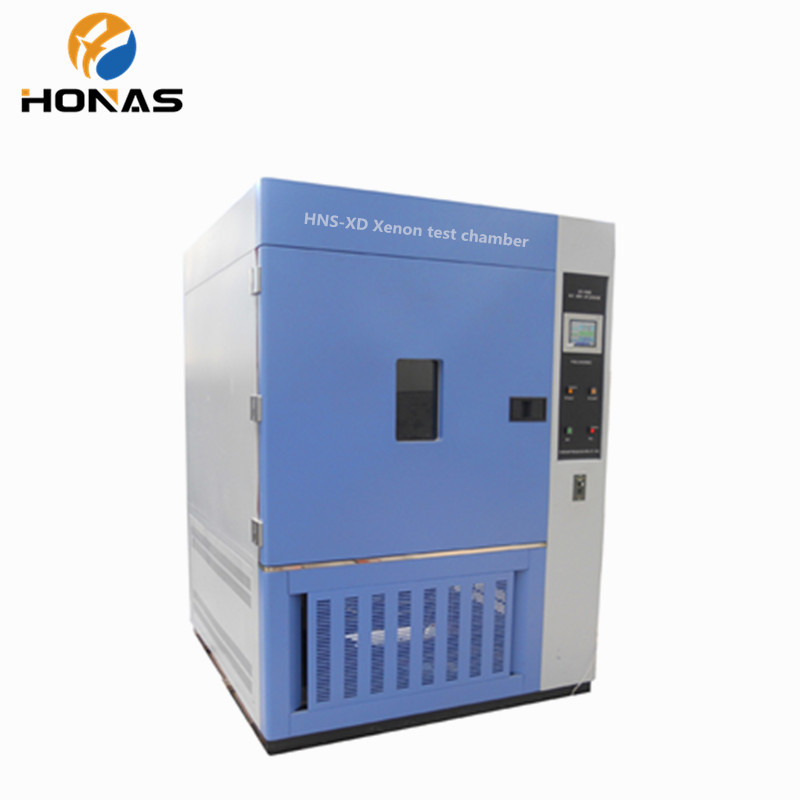

ASTM Xenon arc accelerate aging test chamber

ASTM Xenon arc accelerate aging test chamber

Temperature range RT+10℃-85℃
Humidity range 65%～98%R.H ±3%R.H
Rainfall time 1~999hour ,59min adjustable
Rainfall cycle 1~240min,Interval (off) adjustable
Product description:ASTM Xenon arc accelerate aging test chamber xenon test .test chamber , xenon aging test chamber
INQUIRY EMAIL

Application:

Xenon arc chamber can be used to select a new material, or to change an existing material or to assess the durability of changed materials product. It can simulate the product under different environmental conditions to see the changes of the exposed material to the sun,

Through aging the sample which to be exposed under the xenon arc lamp light and thermal radiation to evaluate the weather resistance and light resistance. It mainly used in automotive, paints, rubber, plastics, paint, adhesive , fabric and so on.

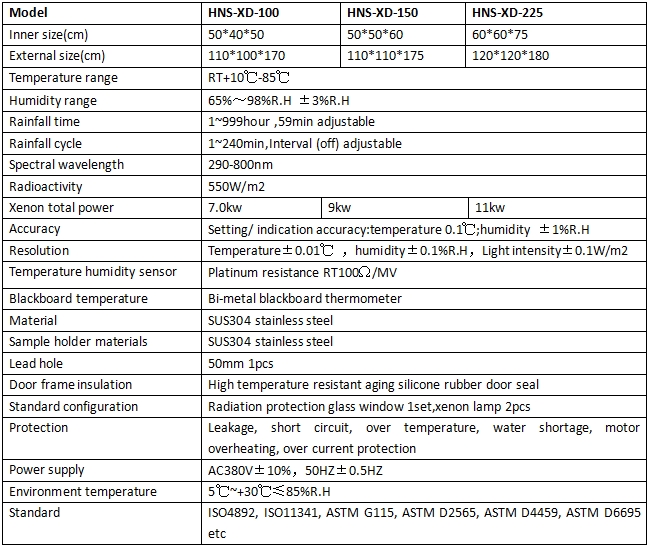

Technical parameter:

Model	HNS-XD-100		HNS-XD-150	HNS-XD-225
Inner size(cm)	504050		505060	606075
External size(cm)	110100170		110110175	120120180
Temperature range	RT+10℃-85℃
Humidity range	65%～98%R.H ±3%R.H
Rainfall time	1~999hour ,59min adjustable
Rainfall cycle	1~240min,Interval (off) adjustable
Spectral wavelength	290-800nm
Radioactivity	550W/m2
Xenon total power	7.0kw	9kw			11kw
Accuracy	Setting/ indication accuracy:temperature 0.1℃;humidity ±1%R.H
Resolution	Temperature±0.01℃ ，humidity±0.1%R.H，Light intensity±0.1W/m2
Temperature humidity sensor	Platinum resistance RT100Ω/MV
Blackboard temperature	Bi-metal blackboard thermometer
Material	SUS304 stainless steel
Sample holder materials	SUS304 stainless steel
Lead hole	50mm 1pcs
Door frame insulation	High temperature resistant aging silicone rubber door seal
Standard configuration	Radiation protection glass window 1set,xenon lamp 2pcs
Protection	Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection
Power supply	AC380V±10%，50HZ±0.5HZ
Environment temperature	5℃~+30℃≤85%R.H
Standard	ISO4892, ISO11341, ASTM G115, ASTM D2565, ASTM D4459, ASTM D6695 etc
