  • iec60335 50N 75N disjointed force test probe

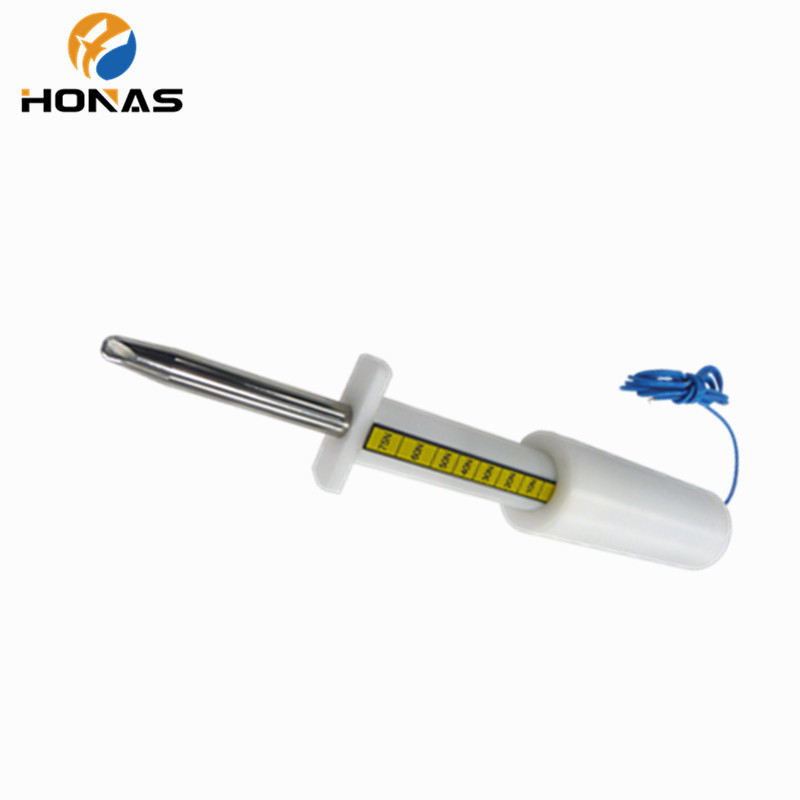

iec60335 50N 75N disjointed force test probe

iec60335 50N 75N disjointed force test probe

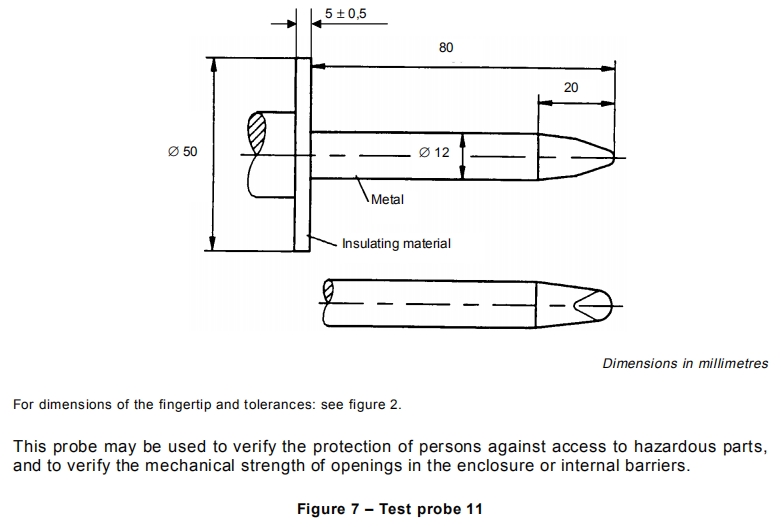

  • Nodular Finger Length:80mm
  • Nodular Finger Diameter:12mm
  • Dam-board Thickness:5mm
  • Dam-board Diameter:50mm
  • Product description:iec60335 50N 75N disjointed force test probe
  • INQUIRY   EMAIL

Application :

The thrust test is directed to meet the requirements of IEC 60335 & GB 4706. It is used to simulate fingers in tests. It is mainly used to prevent the proximity of dangerous parts when the external force is applied.


Test method:

1.Use a power supply of not less than 40V and not more than 50V, connect one end of the power supply in series with a light bulb, connect it to the wire of the test finger (or pin, rod), and connect the other end to the sample to be tested;

2.the thrust test is directed to the finger part that cannot touch the live parts or the dangerous parts, and the 50mm-20mm baffle cannot enter.

3.In the test requirements to prevent access to hazardous parts, the thrust test directly refers to the need to apply thrust.


Technical parameter

Item

Parameter

Nodular Finger Length

80mm

Nodular Finger Diameter

12mm

Dam-board Thickness

5mm

Dam-board Diameter

50mm

With Dynamo-meter

10/20/30/40/50/75N

Standard

IEC61032 IEC60335 IEC60065

Model type

Type A:10N~50N

Type B:10N~75N

Type C:20N
