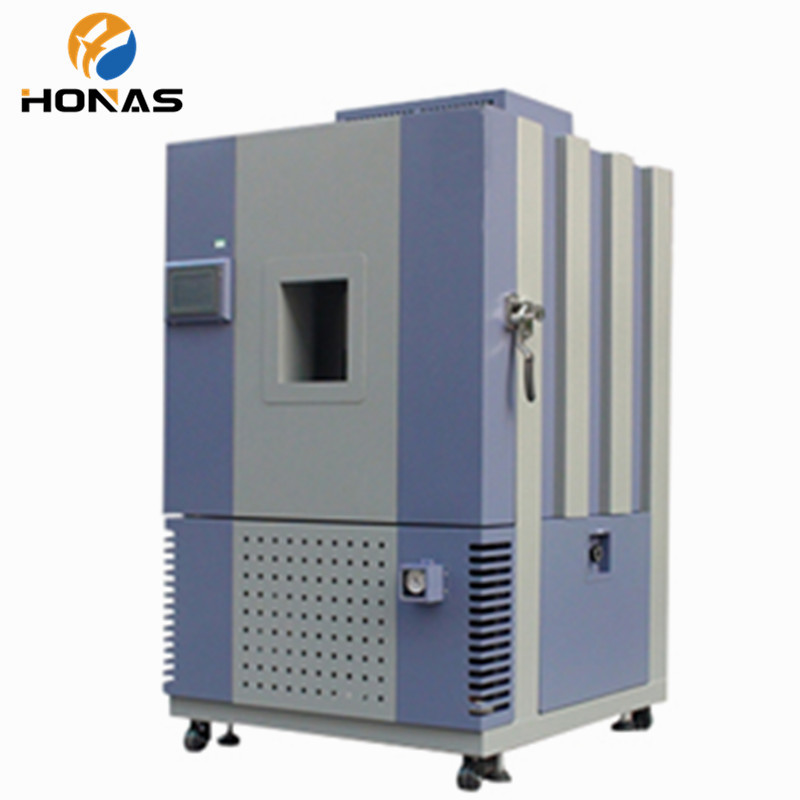

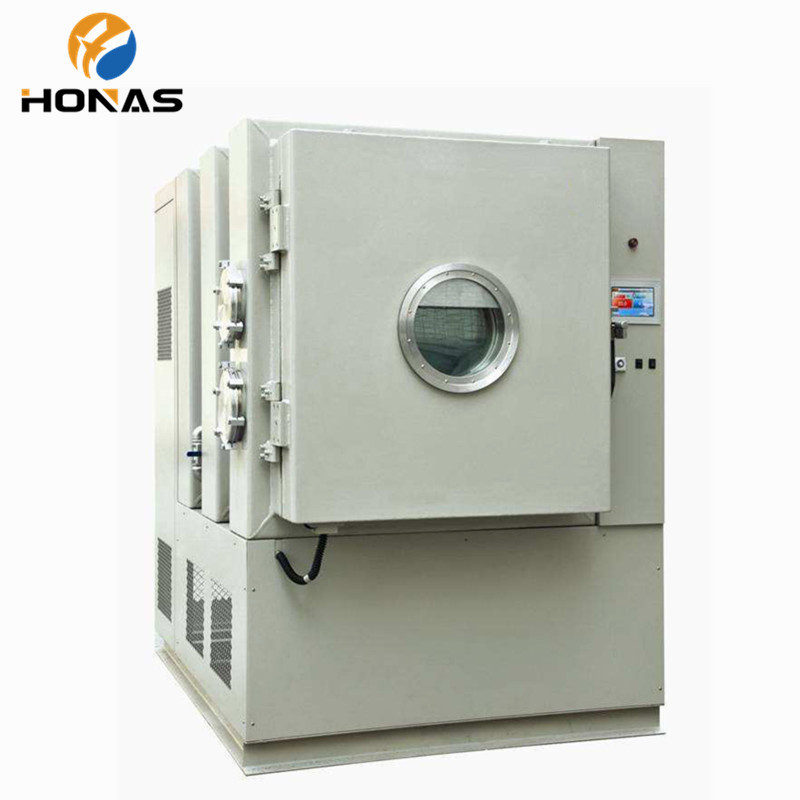

Low pressure tester for electrical performance testing

Low pressure tester for electrical performance testing

Temperature range -70℃,-60℃,-50℃,-40℃,-30℃,-20℃,-10℃,0℃～150℃
Temperature fluctuation ±0.5°C (normal pressure, no load)
Temperature uniformity ≤2°C (normal pressure, no load)
Temperature deviation ≤±3°C (normal pressure, no load)
Product description:Low pressure tester for electrical performance testing low pressure tester , electrical performance tester , tester
INQUIRY EMAIL

Application:

The low-pressure test chamber is mainly used in aviation, aerospace, electronics, defense, scientific research and other industrial sectors to determine the electrical and electronic products (including components, materials and instruments), etc., under the action of high and low temperature and low pressure, respectively, for reliable storage and transportation. Sex test, and the test piece can be energized at the same time to test the electrical performance parameters.

Features:

1. The low-pressure test chamber is machined and formed by CNC machine tool. It has beautiful appearance and adopts no reaction handle, which is easy to operate.

2. The inner bladder of the box adopts imported high-grade stainless steel (SUS304) mirror panel, and the outer shell of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

3. Temperature control instrument adopts imported touch screen, programmable microcomputer PID control SSR output operation, all imported large LCD color touch screen screen, controller operation interface is available in Chinese and English, real-time running curve can be displayed by screen;

120 sets of programs, each group of 99 segments, each segment can cycle 999 steps of capacity, each period set the maximum value of 99 hours and 59 minutes;

4. The chiller adopts the French original "Taikang" fully enclosed compressor.

5. Multi-wing blower is used to strongly supply air circulation, avoiding any dead angle and making the temperature distribution in the test area uniform. The wind path is designed to return to the wind and return to the wind. The wind pressure and wind speed are in compliance with the test standards, and the temperature can be stabilized at the instant of opening the door.

Parameter:

Model		HNS-HLP-250	HNS-HLP-500	HNS-HLP-1000
Temperature range		-70℃,-60℃,-50℃,-40℃,-30℃,-20℃,-10℃,0℃～150℃
Temperature fluctuation		±0.5°C (normal pressure, no load)
Temperature uniformity		≤2°C (normal pressure, no load)
Temperature deviation		≤±3°C (normal pressure, no load)
Heating time		60min (no load)
Cooling time		90min (no load)
Pressure range		Atmospheric pressure (1.01325 × 105 Pa) ~ 0.5kPa (optional 2.5kpa / s fast step-down function)
Pressure deviation		Atmospheric pressure ~ 40Kp: ± 2Kp; 40Kp ~ 4Kp: ± 5%; 4Kp ~ 1KPa: ± 0.1Kp (about 1mmHg);
Buck time		Atmospheric pressure ~0.5KPa ≤45min (normal temperature, dry inside the box)
shell		Cold-rolled steel sheet surface sprayed (ivory white)
Liner		Stainless steel plate
Insulation materials		Superfine glass wool
Cooling method		Double-stage compressor refrigeration (water cooling)
Refrigerator		Imported compressor
Observation window		200×270(mm)
Terminals		A stainless steel flanged connector with a 50-core air socket is located on the side wall of the test chamber.
Temperature Sensor		Platinum resistance Pt100
Pressure Sensor		Pressure Transmitters
Controller		Siemens PLC controller, Siemens color LCD touch screen
Recording device		Micro printer
Computer interface		RS485 interface、RS232 Conversion line

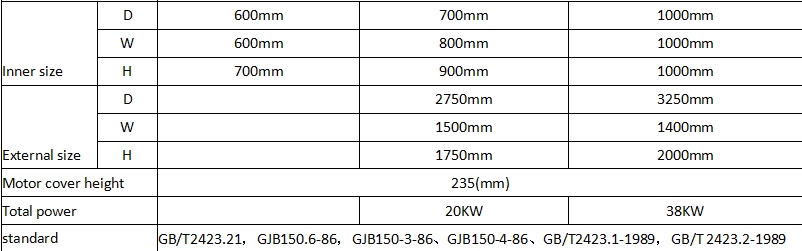

Inner size	D	600mm	700mm	1000mm
	W	600mm	800mm	1000mm
	H	700mm	900mm	1000mm
External size	D		2750mm	3250mm
	W		1500mm	1400mm
	H		1750mm	2000mm
Motor cover height		235(mm)
Total power			20KW	38KW
standard		GB/T2423.21，GJB150.6-86，GJB150-3-86、GJB150-4-86、GB/T2423.1-1989，GB/T 2423.2-1989
