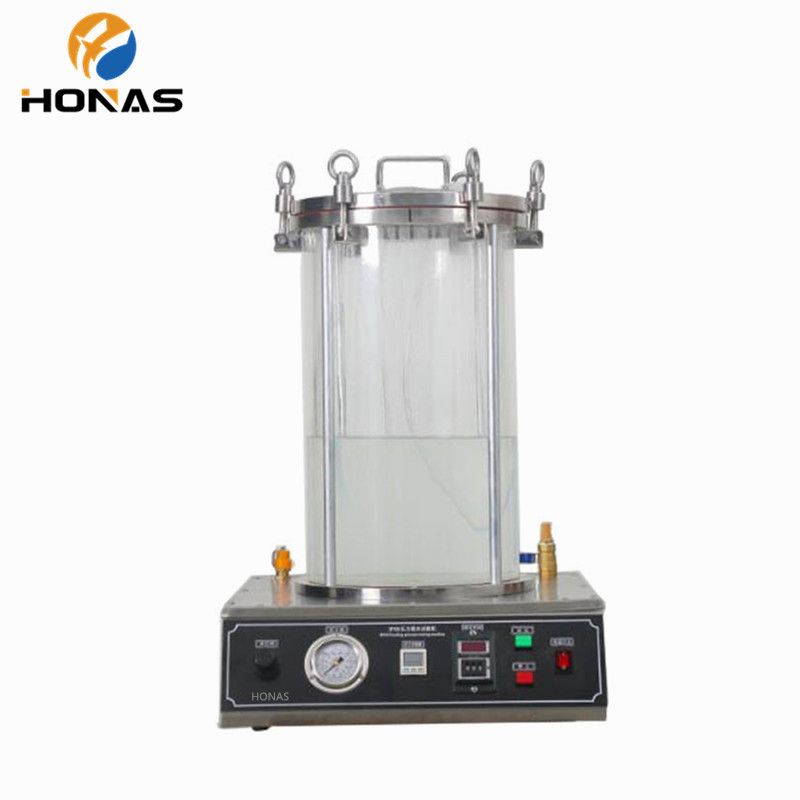

IP Waterproof test machine

  • IPX8 full view water submerging test equipment
  • IPX8 full view water submerging test equipment
  • IPX8 full view water submerging test equipment
IPX8 full view water submerging test equipmentIPX8 full view water submerging test equipmentIPX8 full view water submerging test equipment

IPX8 full view water submerging test equipment

  • accuracy:0.0001Mpa
  • Test water depth range:0-30m
  • Plexiglass body thickness:15mm
  • Tank diameter:270mm
  • Product description:IPX8 full view water submerging test equipment
  • INQUIRY   EMAIL

Application:

The main function of the device is for the electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and other parts and other products in the simulated rain conditions, the physical and other related properties of the test. After the test, through the test to determine whether the performance of the product requirements, in order to facilitate the product design, improvement, testing and factory inspection use.


Features:

1, suitable for product IPX8 test.

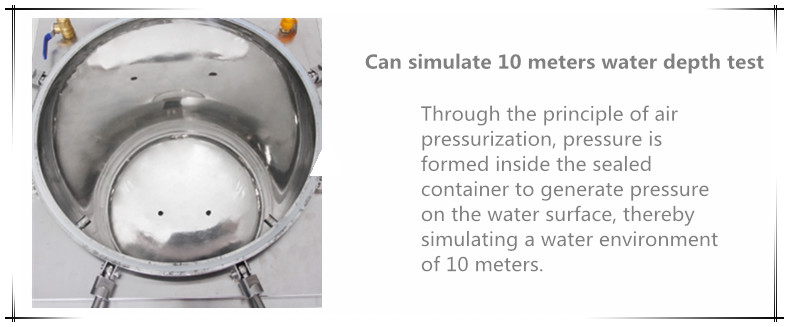

2, IPX8 pressure immersion test device tank all imports of plexiglass, transparent (easy to observe the test sample test situation), more endurance.

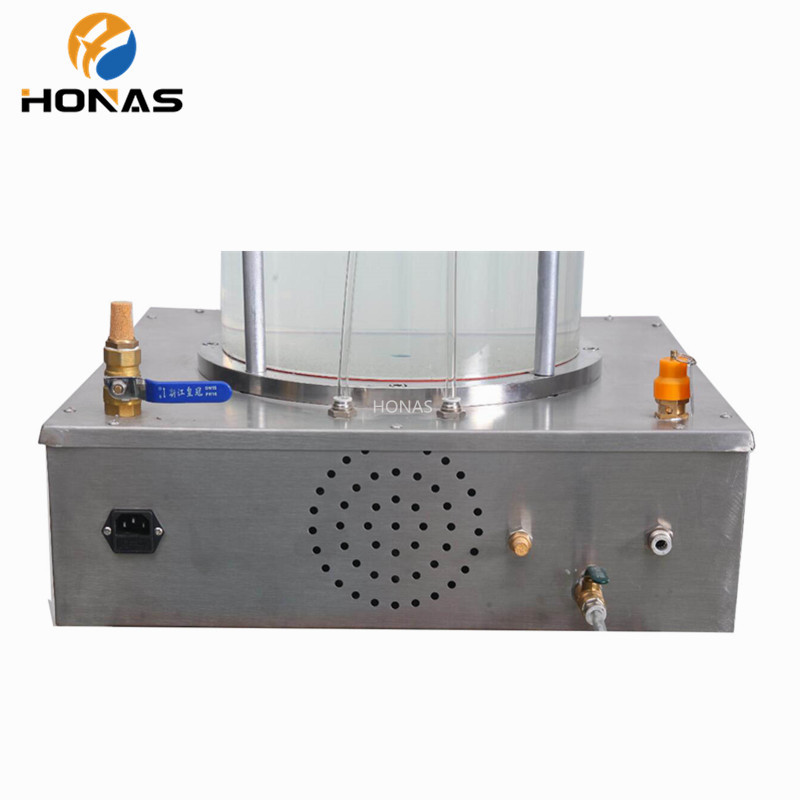

3, the chassis all the use of stainless steel welding molding, rust and beautiful appearance, human design (tank height just easy to open the lid operation and observation tank test situation, the panel 45 degrees slope mode key operation)

4, special silicone seal (good elastic never aging, a seal can be used for ten years).

5, all the electronic control components imported LG, Panasonic, Omron, Anliang and other brands, pneumatic components, including gas fittings all the procurement of Taiwan original Yade grams, large brand parts is the equipment life and reliability of the fundamental guarantee.

6, a time control function, set the time: 0-999 minutes, to reach the test time can automatically stop the pressure, and automatically drain the tank air, the tester opened the lid to remove the test sample can be.

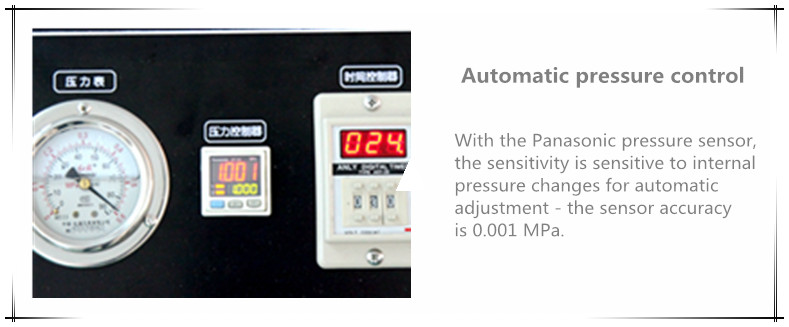

7, automatic testing machine ---- imported Panasonic brand "pressure sensor" automatic control tank test pressure, control accuracy ± 0.002Mpa, display accuracy of 0.001Mpa.



Technical Parameter:

Model

HNS-IP8-10Z-20L

HNS-IP8-30Z-20L

HNS-IP8-30Z-30L

Pressure adjustment method

auto

auto

auto

control precision

±0.0002 M paauto

±0.002 M paauto

±0.002 M paauto

Pressure adjustment range

0.00-0.1Mpa

0.00-0.3Mpa

0.00-0.3Mpa

Test water depth range

0-10m

0-30m

0-30m

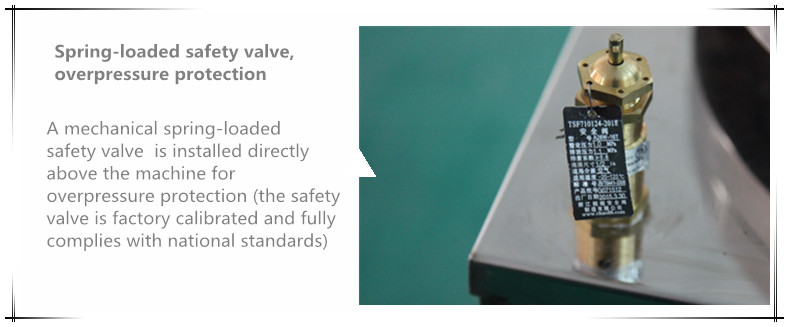

Safety valve exhaust pressure

0.15 M pa

0.35 M pa

0.35 M pa

Maximum ultimate pressure

0.2Mpa

0.4Mpa

0.4Mpa

accuracy

0.0001Mpa

0.001Mpa

0.001Mpa

Plexiglass body thickness

15mm

15mm

15mm

Flange thickness

20mm

20mm

20mm

Tank diameter

270mm

270mm

270mm

Height of water level in tank

300mm

300mm

500mm

External size

E500*D550*H600mm

E500*D550*H600mm

E500*D550*H800mm

Tank material

All SUS304 # + imported transparent plexiglass

Time control

0999Min

Protective function

Pressure relief valve protection, leakage switch

Power supply

AC220V

Power

100W

Weight

40KG

40KG

45KG

Standard

IEC60529:1989+A1:1999GB4208-2008GB7000.1IPX8)
