Application:

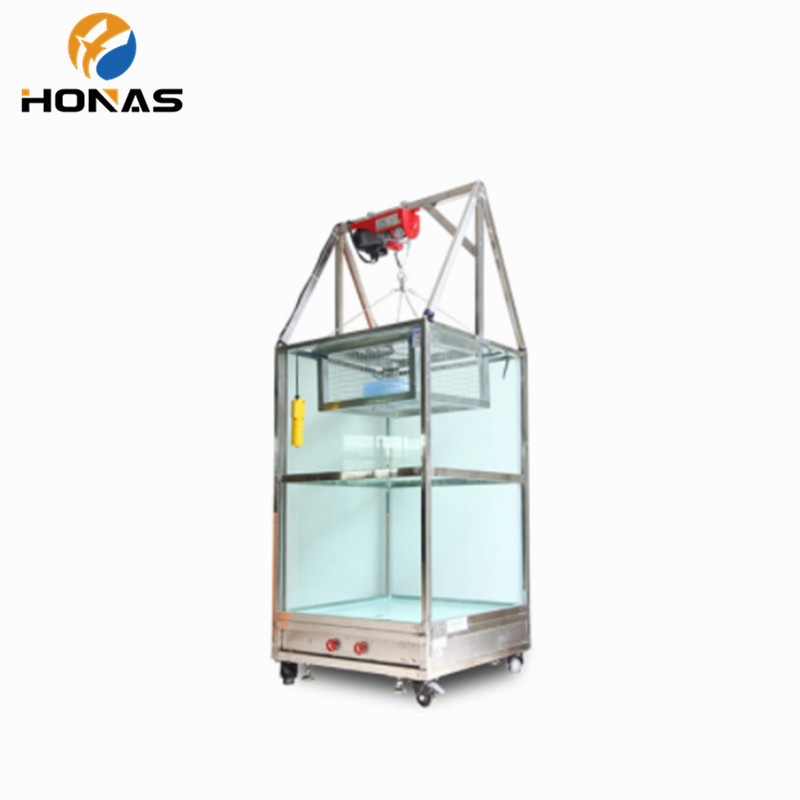

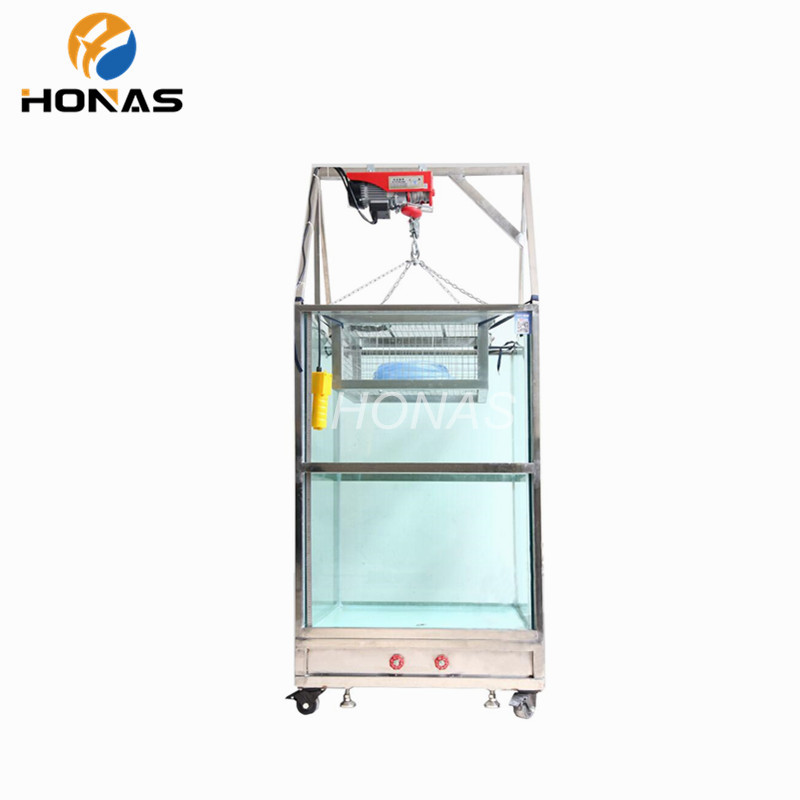

Ipx7 test equipment is used to test the IPX7 waterproof grade of the product. The test sample includes electronic components, outdoor lighting, mobile phone casing, auto parts, etc. It adopts box structure, no site limitation, 304# stainless steel material, and electric hoist, making the test easier.
Features:
1.Applicable to IPX7 testing of products.

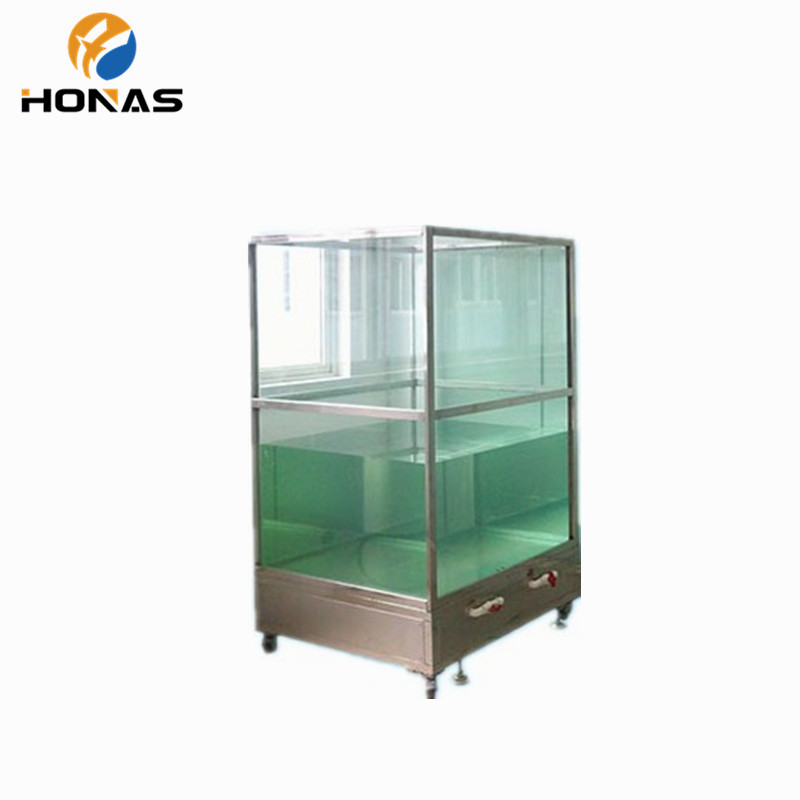

2.Stainless steel rack, fixed and support glass water tank, solid and reliable
3.The inlet and outlet piping is under the glass tank and is hidden beneath the stainless steel base. There are two external water valve switches on the front side of the base, one inlet valve, one drain valve
4.Precise stainless steel ruler shows water level

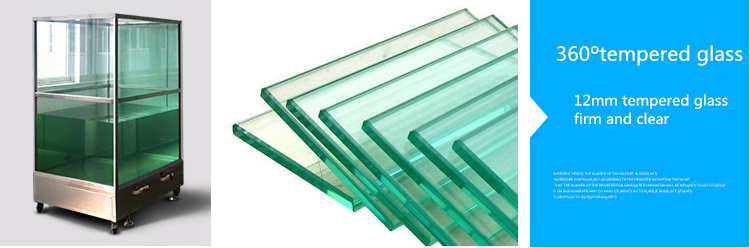

5.The tank is made of 5 tempered glass, fully transparent to observe the test sample test; durable, long-term use of watertight

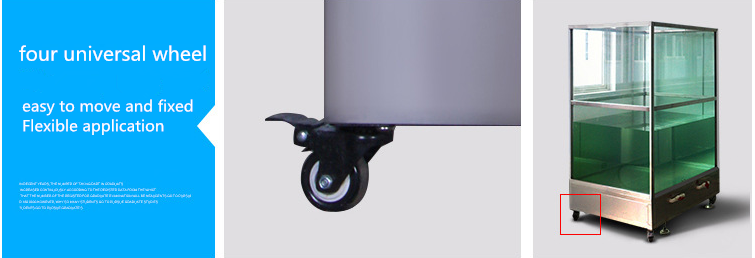

6.Stainless steel chassis with heavy casters and foot cups for easy movement and fixation
Technical parameter:
No. |
Model |
HNS-IP7A-600 |
HNS-IP7A-800 |
HNS-IP7A-1000 |
1 |
Inner size (mm) |
600*600*1200 |
800*800*1200 |
1000*100*1200 |
2 |
External size (mm) |
660*660*1400 |
860*860*1400 |
1060*1060*1400 |
3 |
Tempered glass thickness |
12mm |
12mm |
15mm |
4 |
Test the maximum water depth |
1.2m |
||
5 |
Water level adjustment method |
Positive valve adjustment |
||
6 |
Water level display |
Stainless steel ruler 1.5m(show several degree 1mm) |
||
7 |
Rack material |
Stainless steel |
||
8 |
Standard |
IEC60529:1989+A1:1999、GB4208、GB7000.(IPX7) |
||
9 |
Environment temperature |
5℃~35℃ |
||
10 |
Air pressure |
86kPa~106kPa |
Test notice:
1 Before using the equipment, add water from the water inlet until the water volume of the water tank is sufficient to test the water depth of the sample.
2 When testing, you should pay attention to placing the sample on the bottom of the tank to avoid affecting the test data.
3 After the test is over, the test condition of the sample should be checked to see if there are any fault factors such as water ingress or short circuit.
