IP Waterproof test machine

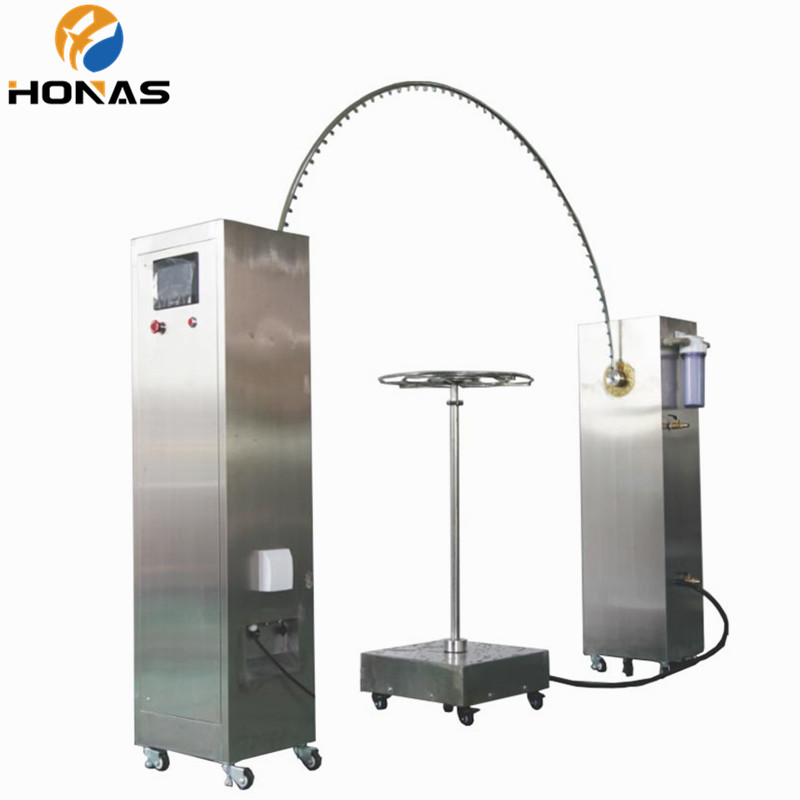

environment IPX3 IPX4 water spray test equipment

Water pore size：0.4 mm
Power supply ：220V
Pendulum tube angle：120º（IPX3）, 350º（IPX4）or customize
Turntable speed test：1-5r/min(accurate control)
Product description:environment IPX3 IPX4 water spray test equipment
INQUIRY EMAIL

Application:

IPX34 water spray test equipment is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4. It is used for the waterproof test of the electrical equipment.

The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.

Technical parameter:

No.	Model	HNS-IP34C-R1000	HNS-IP34C-R1200	HNS-IP34C-R1400	HNS-IP34C-1600
1	Swing pipe size (mm)	R1000	R1200	R1400	R1600
2	External dimensions (mm)	L2800D2000H2200	L3200D2400H2400	L3600D2800H2600	L4000D3200H2800
3	Flow (L / mm))	0-4L/min	0-6L/min	0-6L/min	0-10L/min

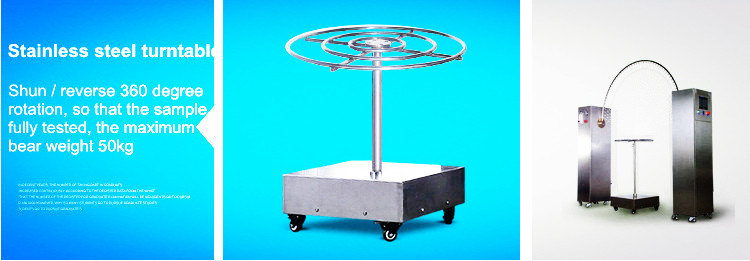

4	Turntable Size (mm)	800 (600、400、200 adjustable)			1000(800/600/400/200 adjustable)
5	Turntable adjustable height range	1150-1750mm	1350-1950mm	1350-1950mm	1750-2350mm
6	Pendulum tube diameter	>15mm
7	Water pore size	0.4 mm

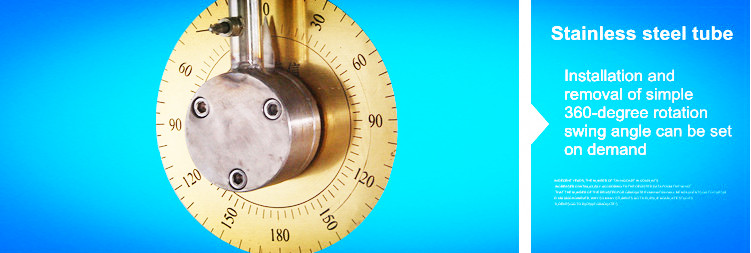

8	Pendulum tube angle	120º（IPX3）, 350º（IPX4）or customize
9	Swing speed tube	120°(to and fro) 4S、360°(to and fro) 12S(accurate control)or customize
10	Swing pipe material	SUS304 stainless steel
11	Turntable speed test	1-5r/min(accurate control)
12	protective device	Leakage, water shortage, short circuit
13	Power supply	220V
14	Power	1KW
15	Standards	IEC60529:1989+A1:1999、（IPX3、IPX4)
