IP Waterproof test machine

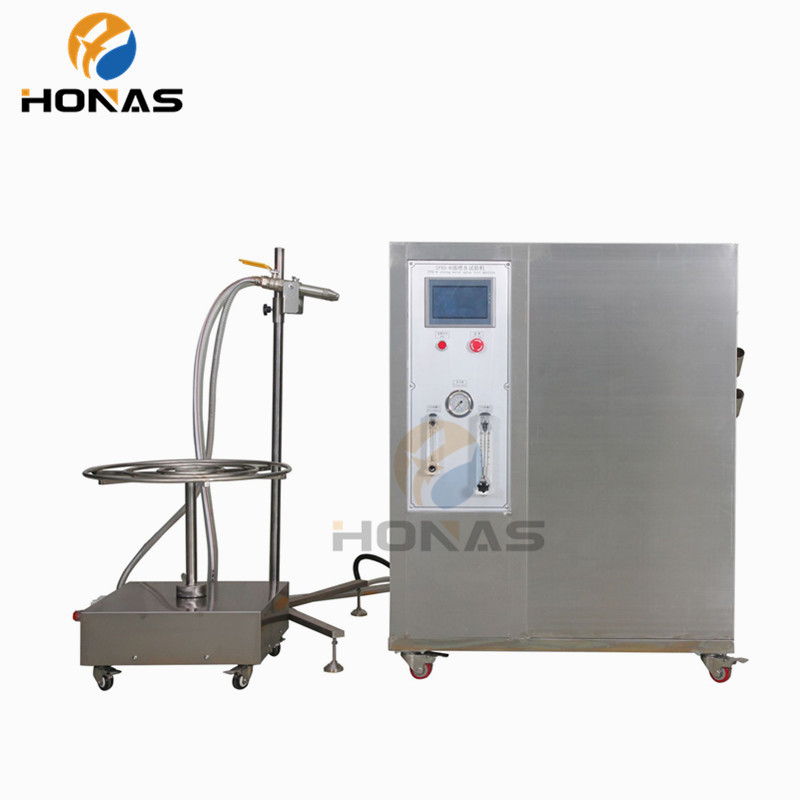

IPX5 IPX6 split type water spray test machine

IPX5 water flow: 12.5±0.625（L/min）
IPX6water flow:100±5L/min
Spray distance:2.5m to 3m(tester control)
materials:SUS304 stainless steel
Product description:IPX5 IPX6 split type water spray test machine
INQUIRY EMAIL

Application

IPX56 split type water spray test machine is used to test the IPX5 and IPX6 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone casings, auto parts, etc. The split structure is suitable for testing very large samples, with 7 inches. Touch screen, new operating system,it is more remote operation, convenient and fast.

The main function of the device is for the electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulated rain conditions, the physical and other related properties of the test.

After the test, through the test to determine whether the performance of the product requirements, in order to facilitate the product design, improvement, testing and factory inspection use.

Technical parameter:

No.	Model	HNS-IP56A	HNS-IP56AS
1	Control system	(Push-button) time relay + switch	(Touch) 7 touch screen + Panasonic PLC
2	External（mm）	About L1000D800H1300（With casters）

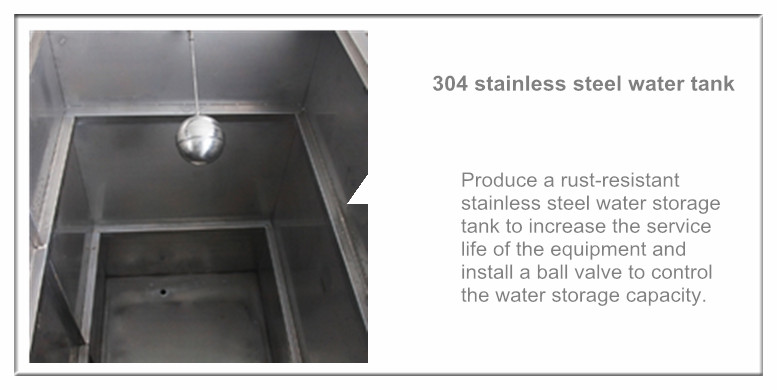

3	Storage tank volume	550L，size about 800×600×1145(mm)，304stainless steel

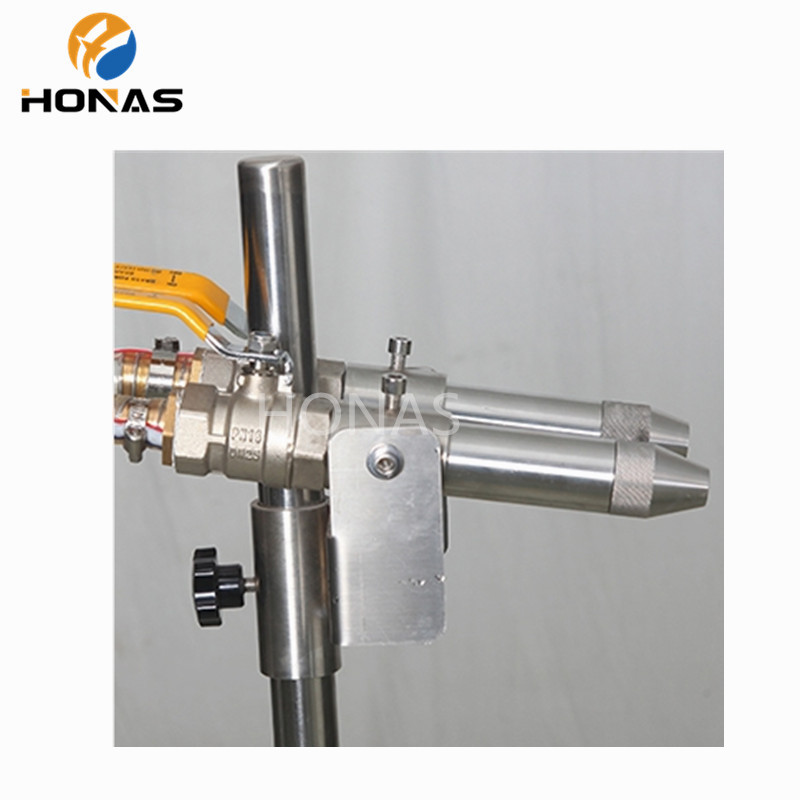

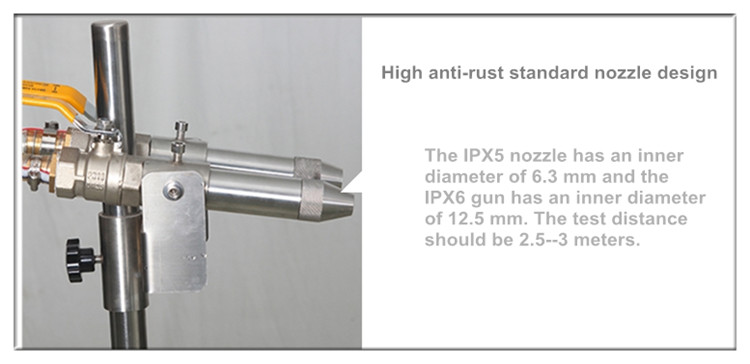

4	IPX5 Water jet aperture	6.3mm
5	IPX6 water jet aperture	12.5mm
6	IPX5 water flow	12.5±0.625（L/min）
7	IPX6water flow	100±5L/min
8	water pressure（M pa）	According to the provisions of water flow regulation
9	Flow control	Adjust the flow with the adjustable rotor flow meter to adjust the flow manually
10	Spray distance	2.5m to 3m(tester control)
11	Gun fixation method	Hand held
12	Water pump	stainless steel Multistage stage pump
13	Waterway materials	Stainless steel +PPR Water pipe welding
14	Turntable diameter	600mm
15	Turntable load bearing	≤50kg
16	Turntable load power supply	AC220V
17	materials	SUS304 stainless steel
18	Protection device	Leakage, water shortage, short circuit
19	Power voltage	380V
20	Power	3kw
21	standard	IEC60529:1989+A1:1999、GB4208、GB7000.（IPX5、IPX6)
