IP Waterproof test machine

IEC60529 climatic IPX5/6 strong water spray test chamber

IEC60529 climatic IPX5/6 strong water spray test chamber

spray water distance：2.5 to 3m
IPX5 flow：12.5±0.625（L/min）
IPX6 flow：100±5L/min
Power supply：380V
Product description:IEC60529 climatic IPX5/6 strong water spray test chamber
INQUIRY EMAIL

Application:

This ipx56b test equipment is main to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components.

After the test, through the test result to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Features:

1.The inner box and the turntable are all made of SUS304# stainless steel plate to ensure long-term use without rust.

2.No need for the operator to carry the test with the spray gun, fix the sample and start the test.

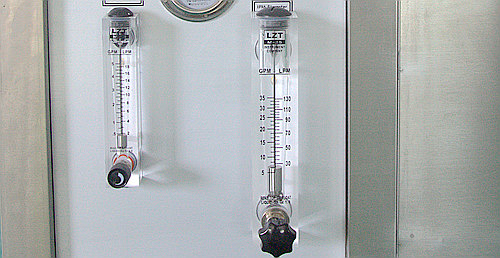

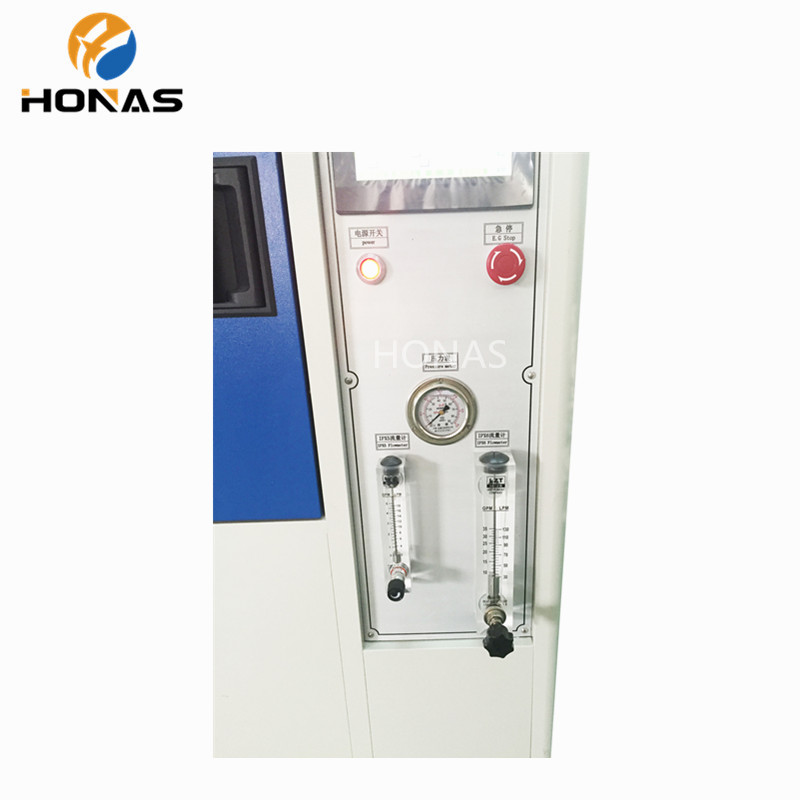

3.The spray water flow is adjusted by the flow meter and manually adjusted.

4.LED waterproof lighting is installed in the test box to facilitate observation of test samples

5.The equipment comes with a water tank and recycles water. There is no need to build a professional waterproof test room. The water tank float valve in the water tank automatically controls the water inlet, and has high and low water level alarm monitoring to effectively prevent the pump from being damaged due to dry water shortage.

Technical Parameter:

Model	HNS-IP56B-200L	HNS-IP56B-500L	HNS-IP56B-1400L
Inner size（mm）	W 600×D600×H600	W800×D800×H800	W1180×D1180×H1000
Outer size（mm）	W3600×D1050×H1600	W3800×D1050×H1600	W4000×D1450×H1850
Turntable diameter	400（mm）	600（mm）	800（mm）
IPX5 diameter	6.3（mm）
IPX6 diameter	12.5（mm）
IPX5 flow	12.5±0.625（L/min）
IPX6 flow	100±5L/min
Power（M pa）	According to the provisions of water flow regulation
spray water distance	2.5 to 3m
Pump	stainless steel multistage pump

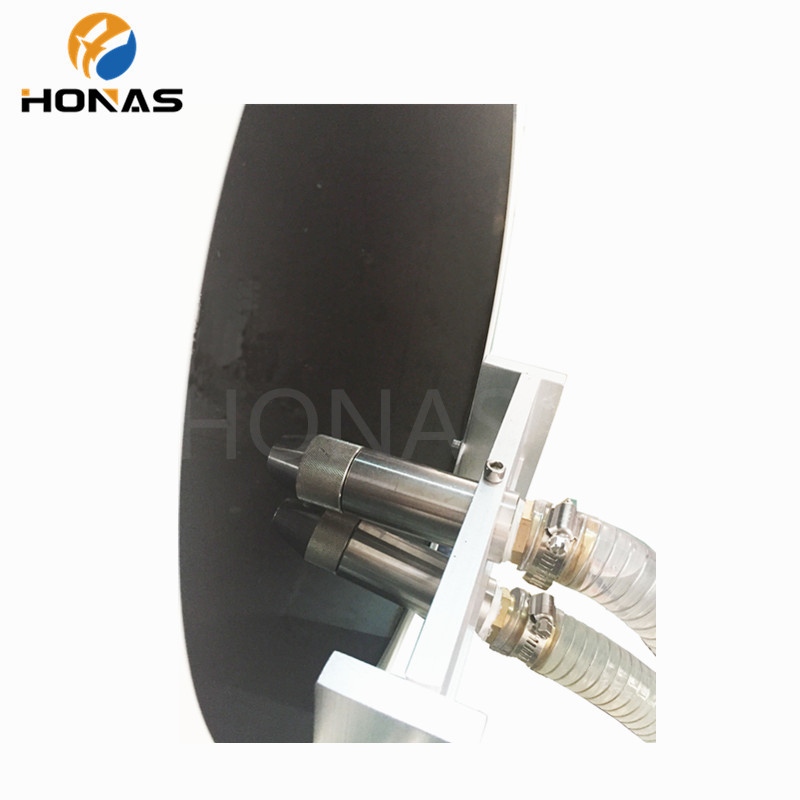

Spray nozzle fixing means	machinery fixation
Water pipe materials	Stainless steel+PPR
Inner box materials	SUS304#stainless steel
Sample table materials	SUS304#stainless steel plate
protector	Electric leakage, water-break, cutting-out
Power supply（V）	380V
Power	3（KW）
Standard	IEC60529：1989+A1：1999、GB4208、GB7000.(IPX5)
