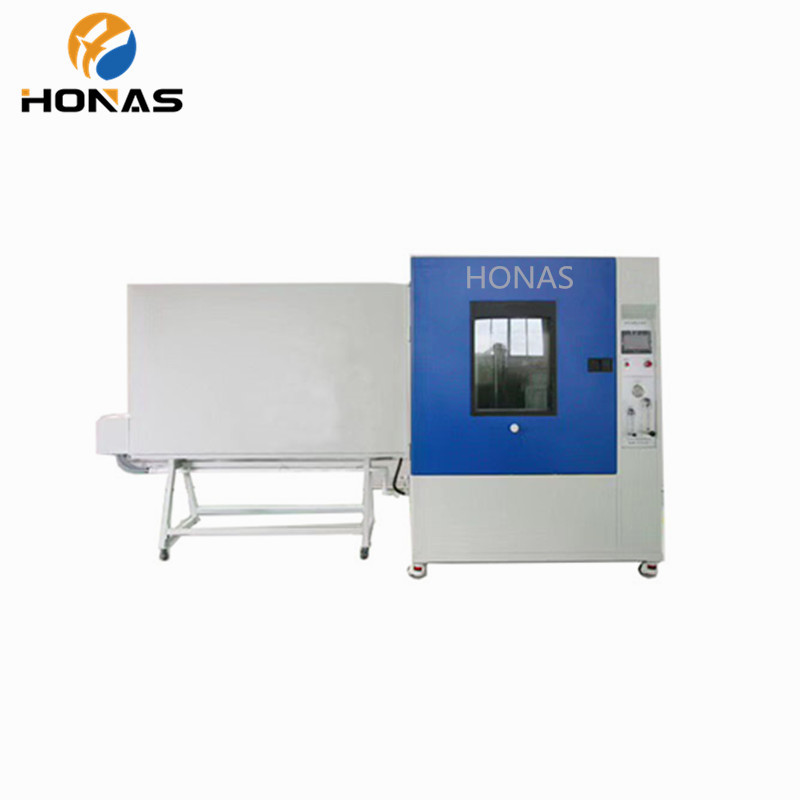

IP Waterproof test machine

ipx5 ipx6 auto water resistance equipment for outdoor light testing

ipx5 ipx6 auto water resistance equipment for outdoor light testing

Spray distance:2.5m(Mechanical fixation)
Waterway materials:Stainless steel + PPR water pipe welding
Turn table diameter(mm):600/800
Power supply :220V
Product description:ipx5 ipx6 auto water resistance equipment for outdoor light testing
INQUIRY EMAIL

Application:

This ipx56 test equipment is main to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test result to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Features:

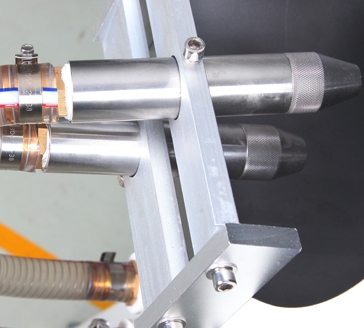

There are two types of spray guns, one is a hose with a nozzle diameter of 6.3 mm; the other is a hose with a nozzle diameter of 12.5 mm. Made of SUS304 stainless steel, it is both corrosion resistant and beautiful. The spray angle of the spray gun can be swung up and down, so that the equipment can increase the accuracy when testing the waterproof test. Of course, the up and down swing amplitude and duration of the spray gun can be controlled by the operation panel.

Technical parameter:

No.	Model	HNS-IP56BS- 500L	HNS-IP56BS- 700L	HNS-IP56BS- 1400L	HNS-IP56BS- 1700L	HNS-IP56BS- 1900L
1	Internal size WDH(mm)	800×800×800	900×900×900	1180×1180×1000	1180×1180×1180	1180×1180×1300
2	External size WDH(mm)	400010501600	380011501700	400014501800	400014501850	400014502000

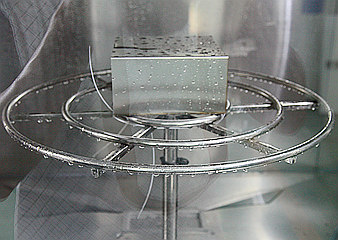

3	Turn table diameter(mm)	600	600	800	800	800
4	IPX5 water jet aperture	6.3mm
5	IPX6 water jet aperture	12.5mm
6	IPX5 water flow	12.5±0.625（L/min）
7	IPX6 water flow	100±5L/min
8	Water pressure	According to the provisions of water flow regulation（M pa）
9	Flow control	Adjust the flow with the adjustable rotor flow meter to adjust the flow manually
10	Spray distance	2.5m(Mechanical fixation)
11	Gun fixation method	Mechanical fixed (can automatically adjust the water spray height)
12	Pump	stainless steel multistage pump
13	Waterway materials	Stainless steel + PPR water pipe welding
14	Turntable load power supply	AC220V
15	Protection device	Leakage, water shortage, short circuit
16	Power voltage	380V
17	Power	3（KW）
18	standard	IEC60529:1989+A1:1999、GB4208、GB7000.（IPX5、IPX6)

Notice when you do ipx56 waterproof test:

1 Before using the equipment, please check the water volume of the water tank to check whether the water volume is enough for testing.

2 When testing, the test data such as the level, duration and turntable of the equipment test should be set.

3 After the test is over, the test condition of the sample should be checked to see if there are any fault factors such as water ingress or short circuit.
